Pico Technology PicoVNA 108 300 to 8500000 KHz Vector Network Analyzer

모든 Vector Network Analysers 열람하기

Subtotal (1 unit)*

₩14,970,515.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 3 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩14,970,515.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
220-7074
제조사 부품 번호:
PicoVNA 108
제조업체:
Pico Technology
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Pico Technology

Product Type

Vector Network Analyzer

Frequency Range

300 to 8500000 KHz

Plug Type

EU, UK, US

COO (Country of Origin):
GB

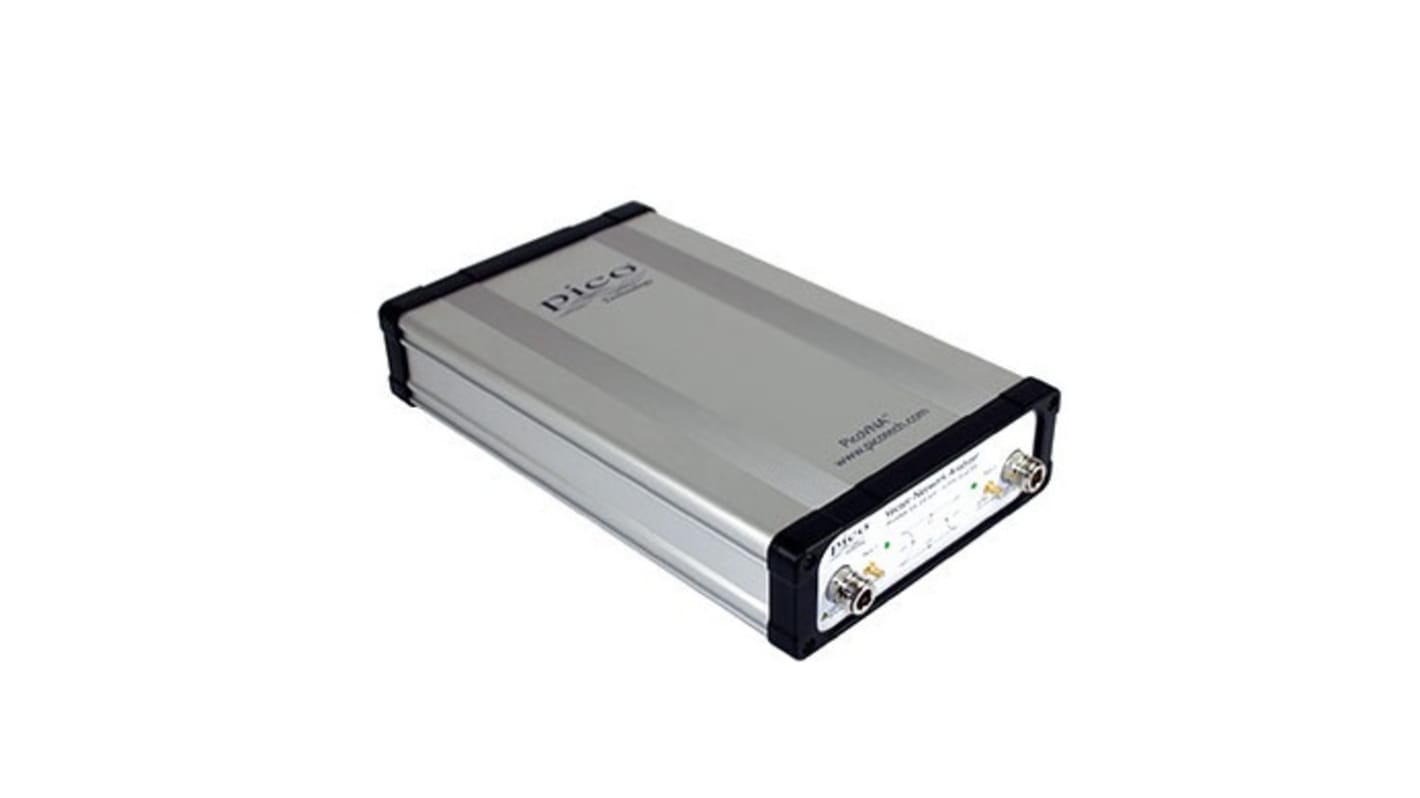

PicoVNAs are all-new, UK-designed, professional USB-controlled, laboratory grade vector network instruments of unprecedented performance, portability and value for money. Despite their simple outline, small footprint and low cost, the instruments boast a four-receiver architecture to minimize the uncorrectable errors, delays and unreliability of internal transfer switches.

The PicoVNA 108 delivers an exceptional dynamic range of 124 dB at 10 Hz and less than 0.006 dB RMS trace noise at its maximum operating bandwidth of 140 kHz. The instruments can also gather all four S-parameters at each frequency point in just 189 μs or S11 + S21 in less than 100 μs. In other words, a 201 point 2-port .s2p Touchstone file in less than 38 ms or up to two .s1p files in less than 20 ms.

The low price makes it cost-effective as a deep dynamic range scalar network analyzer or a single-port vector reflectometer as well as a full-function dual-port, dual-path vector network analyzer.

The PicoVNA 108 is affordable in the classroom, in small businesses and even in amateur workshops, yet capable of meeting the needs of all users up to the laboratory or production test technician or the metrology expert.

Features and benefits


300 kHz to 8.5 GHz operation;High speed of up to 5000 dual-port S-parameters per second;Over 10000 S11 + S21 per second;Quad RX four-receiver architecture for optimal accuracy;Up to 124 dB dynamic range at 10 Hz bandwidth;0.006 dB RMS trace noise at maximum bandwidth of 140 kHz;Half-rack, small-footprint, lightweight package ;PC-controlled over USB from a Microsoft Windows interface;Reference plane offsetting and de-embedding;Time-domain and port impedance transformations;Tabular and graphic print and save formats, including Touchstone;Save on trigger for high-speed device profiling;Dual-frequency mixer measurements with VSWR correction;Two port phase meter utility with ±70 kHz reciever lock;P1dB, AM to PM, and standalone signal generator utilities;Guided 8- and 12-term and absolute power calibration processes;6 calibration modes, including unknown through and connected DUT isolation

Supplied with/Kit contains:


Universal input 12 V 4.5 A output power supply;PicoVNA carry case;PicoVNA 3 software and documents on USB flash drive;PicoWrench RF combination wrench for N, SMA, PC3.5 and K-type connectors. Quantity: 2.;MI106 Pico blue USB 2.0 cable 1.8 m

What other products/accessories are available in this Pico range?


TA336 Standard phase stable test lead N(m)-SMA(m);TA337 Standard phase stable test lead N(m)-SMA(f);TA342 Standard test port adaptor, SMA(m-m);TA343 Standard test port adaptor, SMA(f-f);TA344 Standard 8.5 GHz SOLT calibration kit (SMA male);TA345 Standard 8.5 GHz SOLT calibration kit (SMA female)
