ILH-XN01-S400-SC211-WIR200. Intelligent LED Solutions, N3535 1 Powerstar Series UV LED, 410nm 400mW 55 °, 4-Pin Surface
- RS 제품 번호:
- 825-1593
- 제조사 부품 번호:
- ILH-XN01-S400-SC211-WIR200.
- 제조업체:
- Intelligent LED Solutions
1 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩35,593.312
수량 | 한팩당 |
1 - 1 | ₩35,593.312 |
2 - 4 | ₩34,465.227 |
5 + | ₩33,999.504 |
- RS 제품 번호:
- 825-1593
- 제조사 부품 번호:
- ILH-XN01-S400-SC211-WIR200.
- 제조업체:
- Intelligent LED Solutions
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- GB
제품 세부 사항

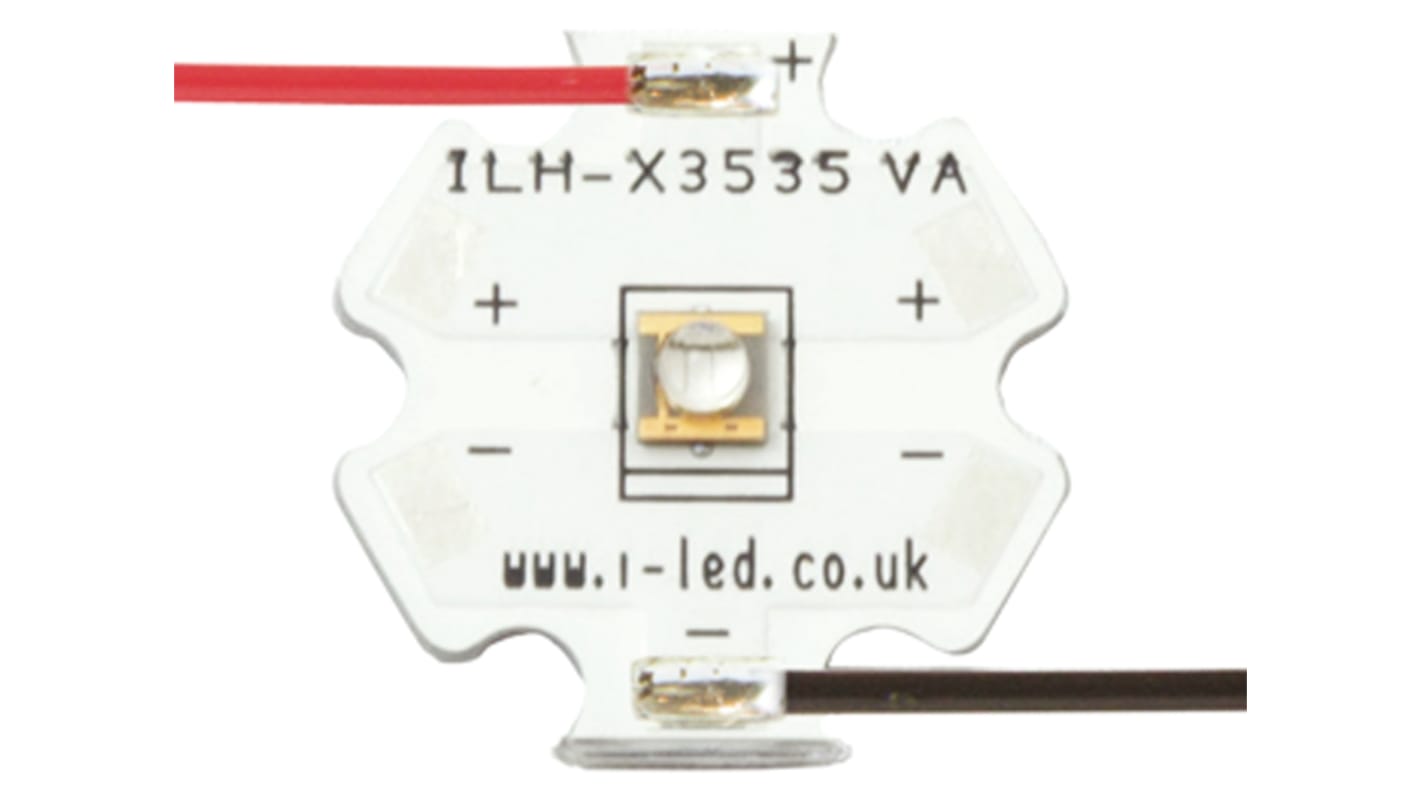

Intelligent LED Solutions UV PowerStar, ILH-Xx01-Sxxx-SC211-WIR200 Series
The ILH-Xx01-Sxxx-SC211-WIR200 series, from Intelligent LED Solutions (ILS), are a family of compact and powerful UV LED arrays. The arrays consist of a TSLC LED mounted on to an ILS UV PowerStar board.
This family of UV LED arrays comes in a variety of TSLC LED options, all of which are compact, high quality and reliable. TSLC UV LEDs also offer a high radiometric power density and design flexibility.
Built on an aluminium substrate, the UV PowerStar arrays offer optimal thermal management. They have been designed primarily for industrial applications, for example; polymer curing, ink curing, counterfeit detection, aquarium lighting, medical and DNA sequencing and inspection equipment.
This family of UV LED arrays comes in a variety of TSLC LED options, all of which are compact, high quality and reliable. TSLC UV LEDs also offer a high radiometric power density and design flexibility.
Built on an aluminium substrate, the UV PowerStar arrays offer optimal thermal management. They have been designed primarily for industrial applications, for example; polymer curing, ink curing, counterfeit detection, aquarium lighting, medical and DNA sequencing and inspection equipment.
Features of the UV PowerStar family:
Variety of TSLC chip options
Mounting holes using M3 screws
200 mm connecting wires
PowerStars can be linked together to produce longer chains
Variety of TSLC chip options
Mounting holes using M3 screws
200 mm connecting wires
PowerStars can be linked together to produce longer chains
TSLC LEDs and viewing angle:
C3535 - 125°
N3535 - 125°
N5050 - 65° or 135°
S5050 - 110°
T7070 - 65°
U9090 - 140°
C3535 - 125°
N3535 - 125°
N5050 - 65° or 135°
S5050 - 110°
T7070 - 65°
U9090 - 140°
Warning
UV LEDs emit ultraviolet light which can be hazardous to the human eye. Do not look at operating UV LEDs without necessary skin and eye protection.
TSLC UV LED Arrays
사양
속성 | 값 |
---|---|
Number of LEDs | 1 |
Peak Wavelength | 410nm |
Radiant Flux | 400mW |
Viewing Angle | 55 ° |
Lens Shape | Dome |
Number of Pins | 4 |
Mounting Type | Surface Mount |
Height | 3.5mm |
Length | 21mm |
Width | 20mm |
Series | N3535 1 Powerstar |
Dimensions | 21 x 20 x 3.5mm |
