Microchip USB3503/ML, USB Controller, 3-Channel, USB 2.0, 3.3 V, 32-Pin SQFN
- RS 제품 번호:
- 165-2145
- 제조사 부품 번호:
- USB3503/ML
- 제조업체:
- Microchip

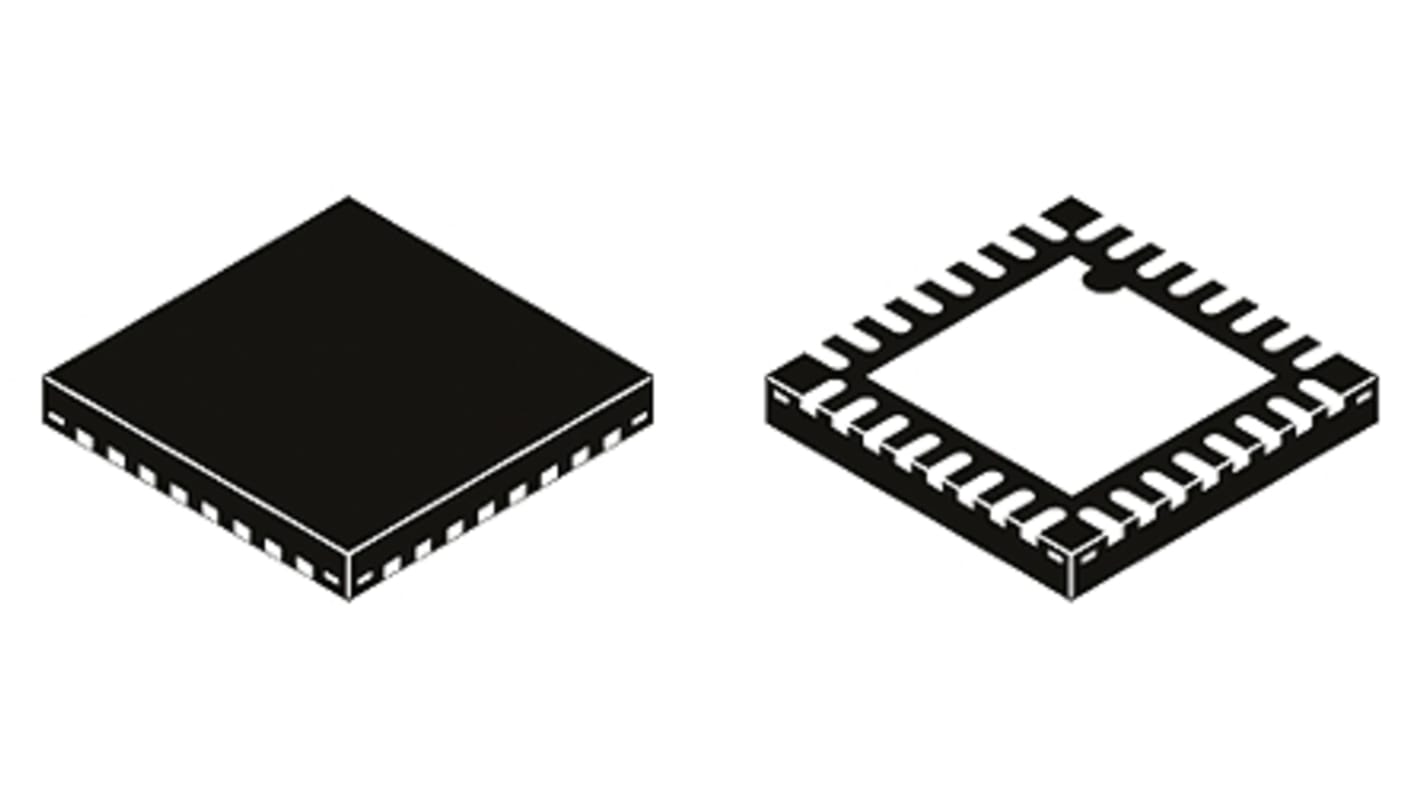

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
모든 USB Interface ICs 열람하기
일시 품절-다음 입고 날짜는 02/08/2023 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
단가 Each (In a Tray of 490)
₩4,340.00
| 수량 | 한팩당 | Per Tray* |
| 490 - 1960 | ₩4,340.00 | ₩2,126,171.25 |
| 2450 + | ₩3,906.00 | ₩1,913,597.00 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 165-2145
- 제조사 부품 번호:
- USB3503/ML
- 제조업체:
- Microchip
- COO (Country of Origin):
- TH
제정법과 컴플라이언스
- COO (Country of Origin):
- TH
제품 세부 사항
USB3503 USB 2.0 HSIC Hub Controllers
From Microchip the USB3503 device is a High-Speed Inter-Chip (HSIC) USB 2.0 Hub Controller designed for use in portable applications requiring more than one USB port. Offering three downstream ports the USB3503 attaches to an upstream port via HSIC and supports low, full and hi-speed downstream devices on all enabled ports. Integrated into the device is Microchip’s RapidCharge Anywhere™ technology that provides USB-IF battery charging 1.1 specification to any portable device.
Features
Integrated USB 2.0-compatible 3-port hub
HSIC upstream port
Advanced power saving features including 1μA standby current
USB-IF BC 1.1 detection
Supports Single-TT or Multi-TT configurations for Full and Low-Speed connections
Enhanced configuration options available through serial I2C slave port
Internal default configuration option when serial I2C host is not available
Incorporates Microchip’s MultiTRAK™, PortMap, PortSwap, PHYBoost, VariSense™ and flexPWR® technologies
External 12 to 52 MHz clock inputs
Internal 3.3V and 1.2V voltage regulators for single supply operation
USB Port ESD Protection (DP/DM) up to ±15kV (IEC 61000-4-2)
HSIC upstream port
Advanced power saving features including 1μA standby current
USB-IF BC 1.1 detection
Supports Single-TT or Multi-TT configurations for Full and Low-Speed connections
Enhanced configuration options available through serial I2C slave port
Internal default configuration option when serial I2C host is not available
Incorporates Microchip’s MultiTRAK™, PortMap, PortSwap, PHYBoost, VariSense™ and flexPWR® technologies
External 12 to 52 MHz clock inputs
Internal 3.3V and 1.2V voltage regulators for single supply operation
USB Port ESD Protection (DP/DM) up to ±15kV (IEC 61000-4-2)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
USB (Universal Serial Bus) - Microchip
사양
| 속성 | 값 |
| Number of Transceivers | 3 |
| Protocols Supported | USB 2.0 |
| IC Type | Controller IC |
| Power Supply Type | Single |
| ESD Protection | Yes |
| Typical Single Supply Voltage | 3.3 V |
| Mounting Type | Surface Mount |
| Package Type | SQFN |
| Pin Count | 32 |
| Dimensions | 5.1 x 5.1 x 0.95mm |
| Height | 0.95mm |
| Length | 5.1mm |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
| Width | 5.1mm |
