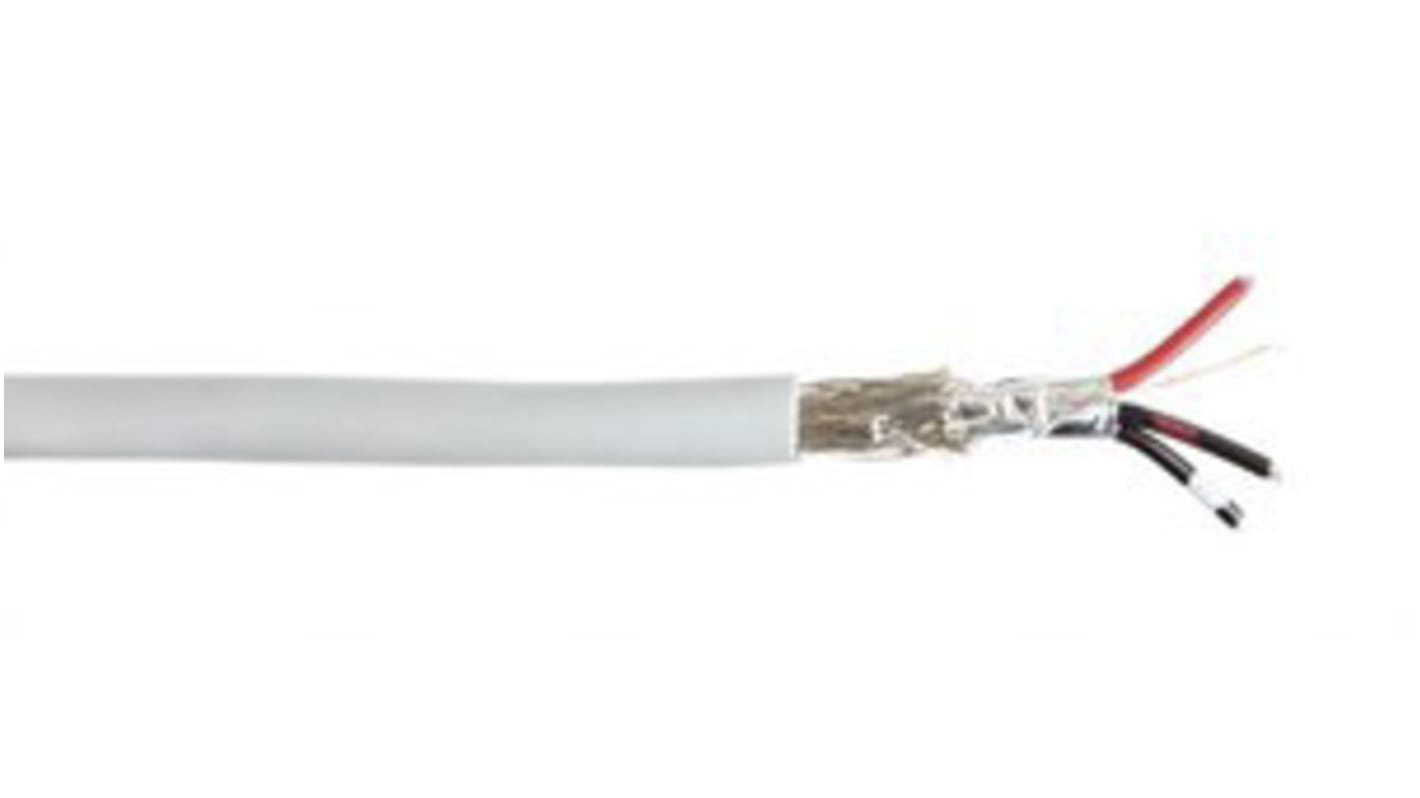

AXINDUS MP22E Series Data Cable, 2 Pairs, 4 Cores, 0.22 mm², Screened, 24 AWG, 100m, Screened Shield
- RS 제품 번호:
- 910-7548
- 제조사 부품 번호:
- MCP2
- 제조업체:
- AXINDUS
대량 구매 할인 기용 가능
Subtotal (1 reel of 100 metres)*
₩338,243.96
재고있음
- 5 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당 | 릴당 | 미터당* |
|---|---|---|
| 1 - 39 | ₩338,243.96 | ₩3,382.12 |
| 40 + | ₩321,316.44 | ₩3,212.92 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 910-7548
- 제조사 부품 번호:
- MCP2
- 제조업체:
- AXINDUS
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | AXINDUS | |
| Number of Pairs | 2 | |
| Cross Sectional Area | 0.22 mm² | |
| Number of Cores | 4 | |
| American Wire Gauge | 24 AWG | |
| Screened/Unscreened | Screened | |
| Length | 100m | |
| Shield Type | Tinned Copper Braid | |
| CPR Certification | Eca | |
| Sheath Colour | Grey | |
| Outer Diameter | 5.6mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Twisted Pair | |
| Characteristic Impedance | 80 Ω | |
| Voltage Rating | 250 V | |
| Standards Met | IEC 60332-1, NF C 32-070/C2 | |
| Shielded/Unshielded | Shielded | |
| Fire Behaviour | Flame Retardant | |
| Series | MP22E | |
| Core Strands | 7/0.2 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 AXINDUS | ||
Number of Pairs 2 | ||
Cross Sectional Area 0.22 mm² | ||
Number of Cores 4 | ||
American Wire Gauge 24 AWG | ||
Screened/Unscreened Screened | ||
Length 100m | ||
Shield Type Tinned Copper Braid | ||
CPR Certification Eca | ||
Sheath Colour Grey | ||
Outer Diameter 5.6mm | ||
Outer Sheath Material PVC | ||
Cable Shape Twisted Pair | ||
Characteristic Impedance 80 Ω | ||
Voltage Rating 250 V | ||
Standards Met IEC 60332-1, NF C 32-070/C2 | ||
Shielded/Unshielded Shielded | ||
Fire Behaviour Flame Retardant | ||
Series MP22E | ||
Core Strands 7/0.2 mm | ||
- COO (Country of Origin):
- TR
CAE 2, 5 & 8 Pair Industrial Cable
CAE MCP series industrial cable enable thre transport of electronic, signalling and communication signals in disturbed areas thanks to the dual shielding consisting of copper braid and aluminium tape shield.
Features and Benefits
PVC sheath
Tinned copper braid
Aluminum tape shield
RoHS
Flame Retardant
Standards
NF C 32-70/C2, IEC 60332-1
RS Industrial Cable
Cables designed to meet the special requirements of high speed data transmission systems associated with data processing or information systems; also for process and control applications.
