RS PRO Data Cable, 1 Pairs, 2 Cores, 0.64 mm², Unscreened, 22 AWG, 100m, None Shield
- RS 제품 번호:
- 812-4741
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 reel of 100 metres)*
₩51,310.84
재고있음
- 추가로 2025년 12월 15일 부터 37 개 단위 배송
- 추가로 2026년 6월 29일 부터 27 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당 | 릴당 | 미터당* |
|---|---|---|
| 1 - 4 | ₩51,310.84 | ₩513.24 |
| 5 + | ₩42,228.56 | ₩423.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 812-4741
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Number of Pairs | 1 | |
| Cross Sectional Area | 0.64 mm² | |
| Number of Cores | 2 | |
| American Wire Gauge | 22 AWG | |
| Screened/Unscreened | Unscreened | |
| Length | 100m | |
| Shield Type | None | |
| Sheath Colour | Grey | |
| CPR Certification | Fca | |
| Outer Diameter | 4.2mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Multicore | |
| Shielded/Unshielded | Unshielded | |
| Standards Met | Euroclass Eca | |
| Core Strands | 1/0.64 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Number of Pairs 1 | ||
Cross Sectional Area 0.64 mm² | ||
Number of Cores 2 | ||
American Wire Gauge 22 AWG | ||
Screened/Unscreened Unscreened | ||
Length 100m | ||
Shield Type None | ||
Sheath Colour Grey | ||
CPR Certification Fca | ||
Outer Diameter 4.2mm | ||
Outer Sheath Material PVC | ||
Cable Shape Multicore | ||
Shielded/Unshielded Unshielded | ||
Standards Met Euroclass Eca | ||
Core Strands 1/0.64 mm | ||
- COO (Country of Origin):
- CN
Non-screened Single Pair 22AWG

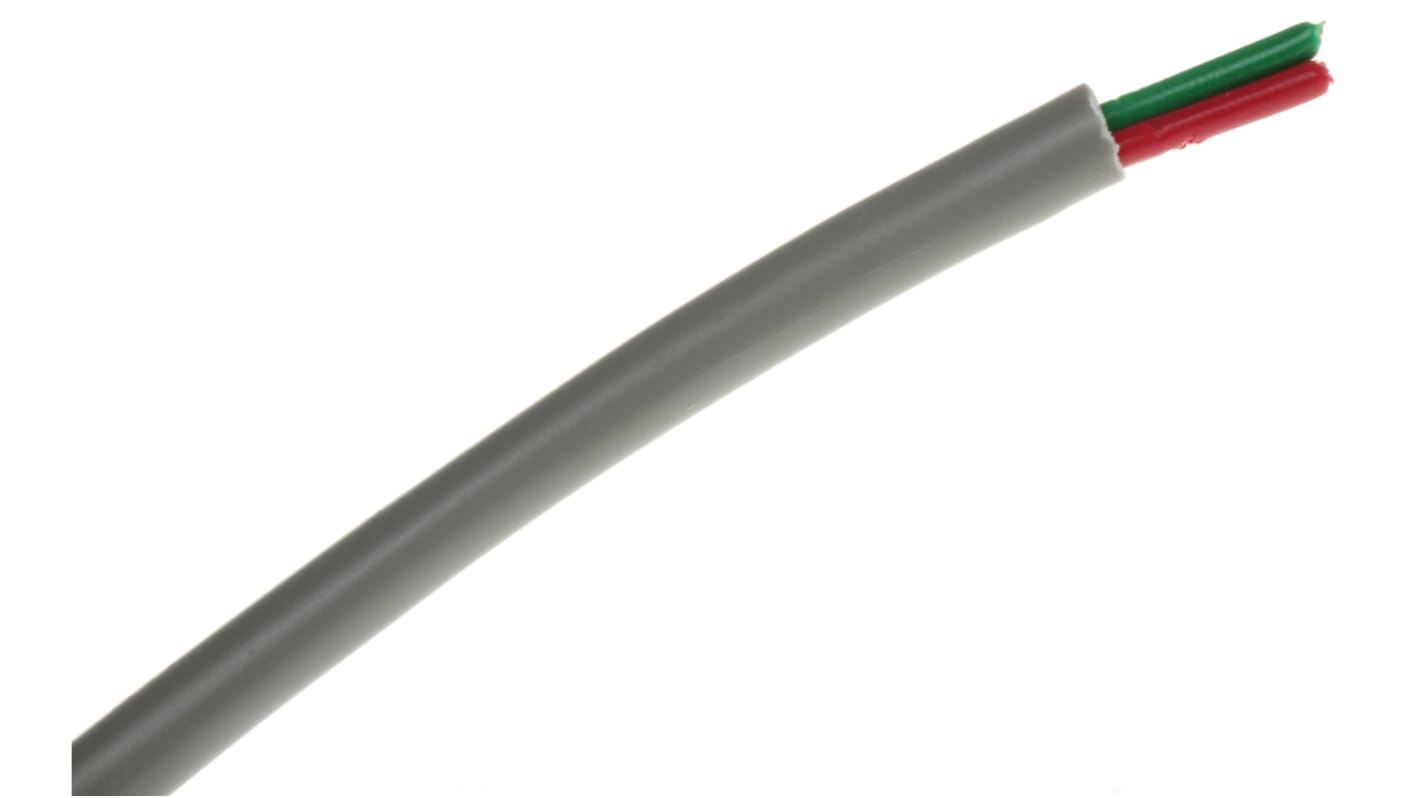

A pair of 1//0.643mm (22 a.w.g.) plain annealed copper conductors, insulated with polythene, twisted together and covered in a PVC outer sheath. Each core is colour coded to aid identification and the outer sheath is coloured grey to harmonise with a wide range of operating environments.
RS Industrial Cable
Cables designed to meet the special requirements of high speed data transmission systems associated with data processing or information systems; also for process and control applications.
