RS PRO Data Cable, 2 Pairs, 4 Cores, 0.22 mm², Screened, 24 AWG, 100m, Tinned Copper Shield
- RS 제품 번호:
- 812-4738
- 제조업체:
- RS PRO
Subtotal (1 reel of 100 metres)*
₩263,688.80
재고있음
- 추가로 2025년 12월 22일 부터 29 개 단위 배송
- 추가로 2026년 10월 19일 부터 32 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당 | 릴당 | 미터당* |
|---|---|---|
| 1 + | ₩263,688.80 | ₩2,637.64 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 812-4738
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Number of Pairs | 2 | |
| Cross Sectional Area | 0.22 mm² | |
| Number of Cores | 4 | |
| American Wire Gauge | 24 AWG | |
| Screened/Unscreened | Screened | |
| Length | 100m | |
| Shield Type | Tinned Copper | |
| Sheath Colour | Grey | |
| CPR Certification | Fca | |
| Outer Diameter | 7mm | |
| Outer Sheath Material | PVC | |
| Cable Shape | Multicore | |
| Core Strands | 7/0.2 mm | |
| Standards Met | Euroclass Eca | |
| Fire Behaviour | Flame Retardant | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Number of Pairs 2 | ||
Cross Sectional Area 0.22 mm² | ||
Number of Cores 4 | ||
American Wire Gauge 24 AWG | ||
Screened/Unscreened Screened | ||
Length 100m | ||
Shield Type Tinned Copper | ||
Sheath Colour Grey | ||
CPR Certification Fca | ||
Outer Diameter 7mm | ||
Outer Sheath Material PVC | ||
Cable Shape Multicore | ||
Core Strands 7/0.2 mm | ||
Standards Met Euroclass Eca | ||
Fire Behaviour Flame Retardant | ||
- COO (Country of Origin):
- CN

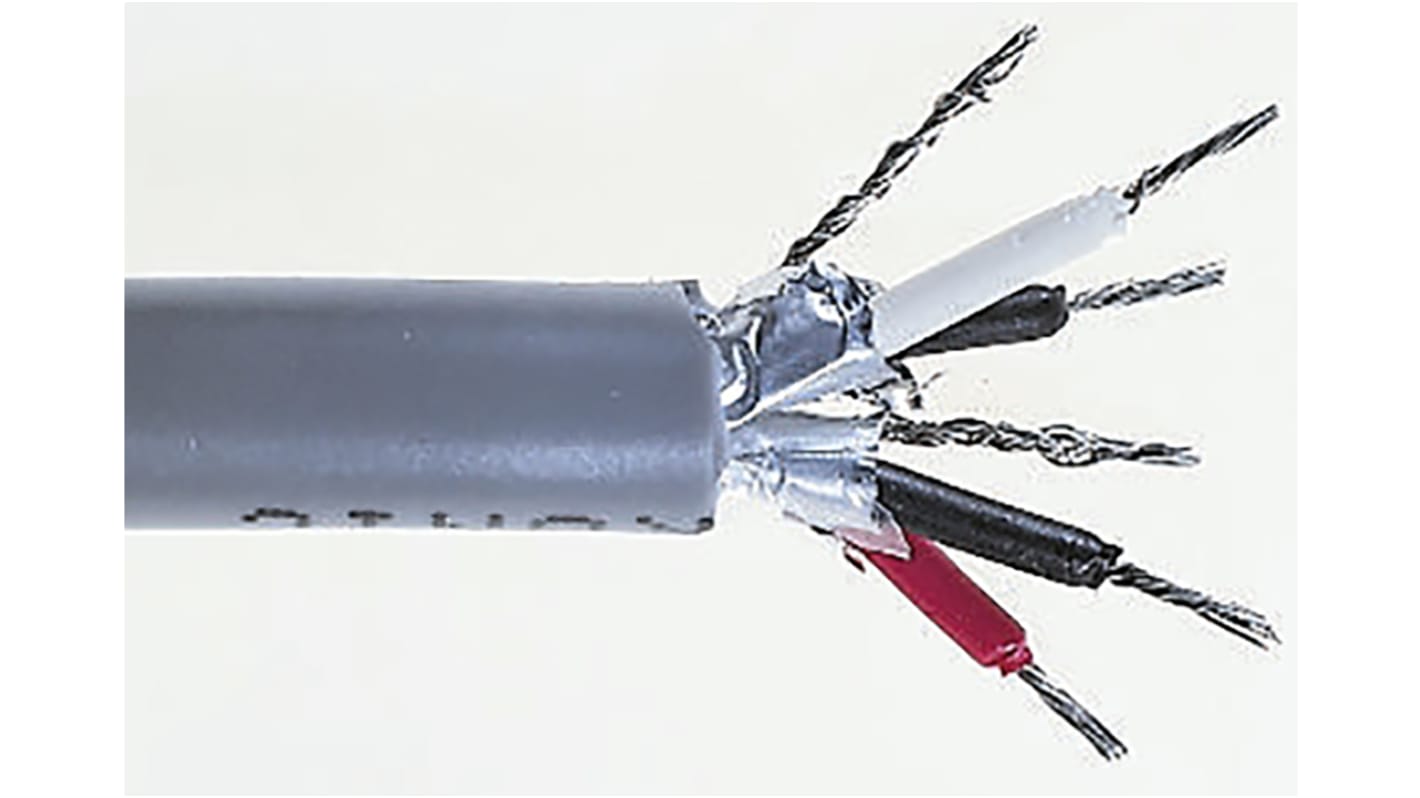

Individually Screened Two Pair 24AWG
A pair of stranded, tinned copper conductors are insulated with foamed polypropylene, twisted together with a tinned copper drain wire, wrapped in aluminised tape and enclosed together with a second similar pair in grey PVC outer sheath.
Warning
These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies.
RS Industrial Cable
Cables designed to meet the special requirements of high speed data transmission systems associated with data processing or information systems; also for process and control applications.
