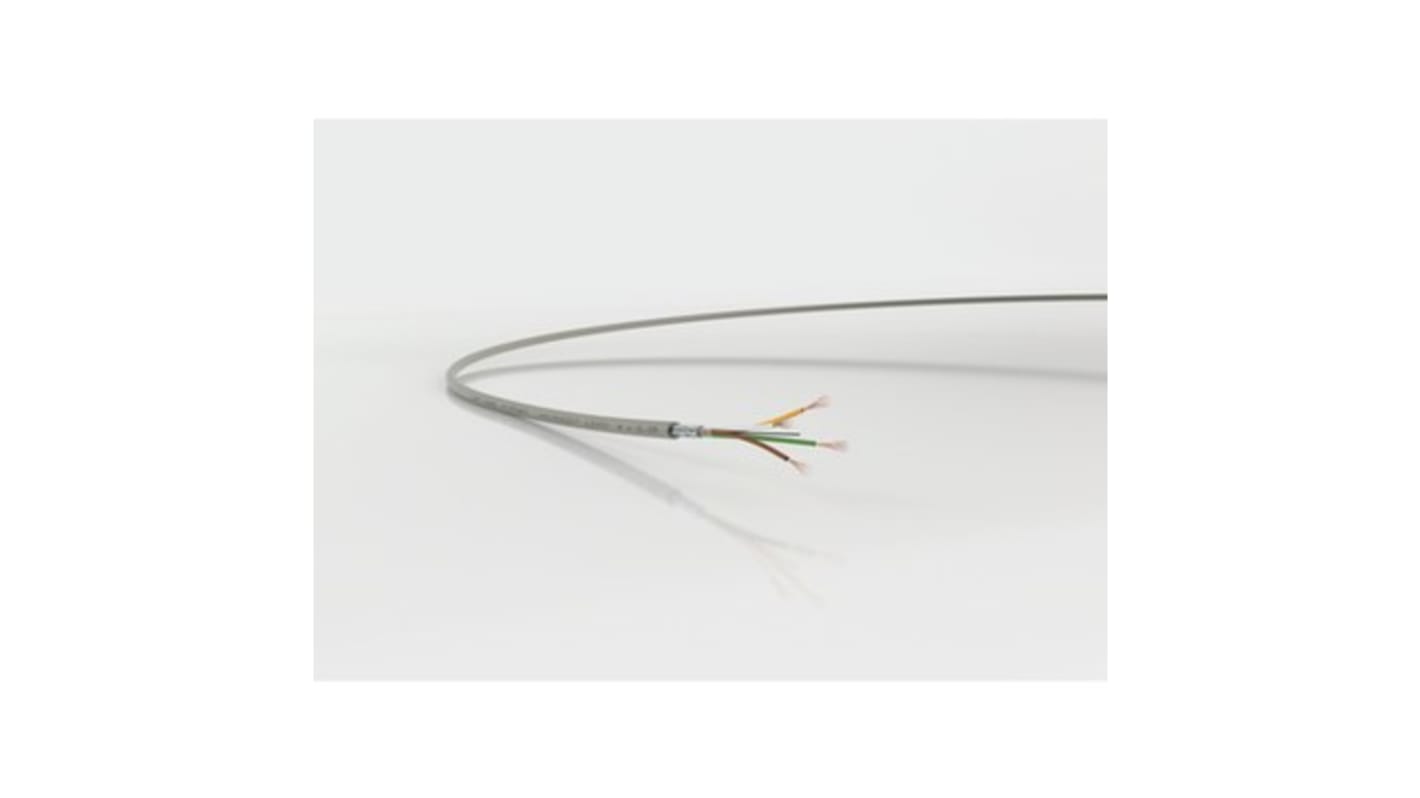

Lapp UNITRONIC LiYCY Series Data Cable, 4 Pairs, 0.34 mm², 100 m, Grey Sheath Polyvinyl Chloride
- RS 제품 번호:
- 491-8450
- Distrelec 제품 번호:
- 304-01-037
- 제조사 부품 번호:
- 0034504
- 제조업체:
- Lapp
Subtotal (1 reel of 100 metres)*
₩208,473.20
재고있음
- 53 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당 | 릴당 | 미터당* |
|---|---|---|
| 1 + | ₩208,473.20 | ₩2,084.92 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 491-8450
- Distrelec 제품 번호:
- 304-01-037
- 제조사 부품 번호:
- 0034504
- 제조업체:
- Lapp
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Lapp | |
| Number of Pairs | 4 | |
| Product Type | Data Cable | |
| Cross Sectional Area | 0.34 mm² | |
| Cable Length | 100m | |
| Jacket Colour | Grey | |
| Outside Diameter | 5.7 mm | |
| Minimum Operating Temperature | -40°C | |
| Conductor Type | Extra Fine | |
| Jacket Material | Polyvinyl Chloride | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS | |
| Series | UNITRONIC LiYCY | |
| Voltage | 250 V | |
| Conductor Material | Bare Copper | |
| Fire Behaviour | Flame Retardant | |
| Core Strands | 7 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Lapp | ||
Number of Pairs 4 | ||
Product Type Data Cable | ||
Cross Sectional Area 0.34 mm² | ||
Cable Length 100m | ||
Jacket Colour Grey | ||
Outside Diameter 5.7 mm | ||
Minimum Operating Temperature -40°C | ||
Conductor Type Extra Fine | ||
Jacket Material Polyvinyl Chloride | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS | ||
Series UNITRONIC LiYCY | ||
Voltage 250 V | ||
Conductor Material Bare Copper | ||
Fire Behaviour Flame Retardant | ||
Core Strands 7 | ||
- COO (Country of Origin):
- DE
LAPP Control Cable, 4 Cores, 22AWG - UNITRONIC Series - 0034504
Use this control cable from LAPP to send signals to and from computers or electronic control devices. Its wires are DIN colour-coded, which helps increase safety by allowing easy identification of each wire's function. The cable's PVC core insulation assists in preventing electrical leakage and provides protection to the wires for increased durability and a long service life. Integrated screening reduces electrical interference, which helps to improve the stability of the signal transmission.
Features & Benefits
• 100m length is simple to cut to the desired length for your application
• Flame-retardant to prevent the spread of a workplace fire
• 0.34mm² cross-sectional area, for use in areas where space is limited
• Wide operating temperature range between -40°C and +80°C when fixed and -5°C to +70°C with occasional flexing, for safe industrial use
Applications
• Food production
• Robotics machinery
• Process control
• Communications, signal and control systems
• Signal and broadcast environments
Is this cable flexible?
Yes. When fixed in position, the cable has a bend radius of 6 times its diameter. When the cable is permitted occasional flexing, the bend radius increases to 15 times the diameter, so you can install it around corners or in confined areas without risk of damage.
