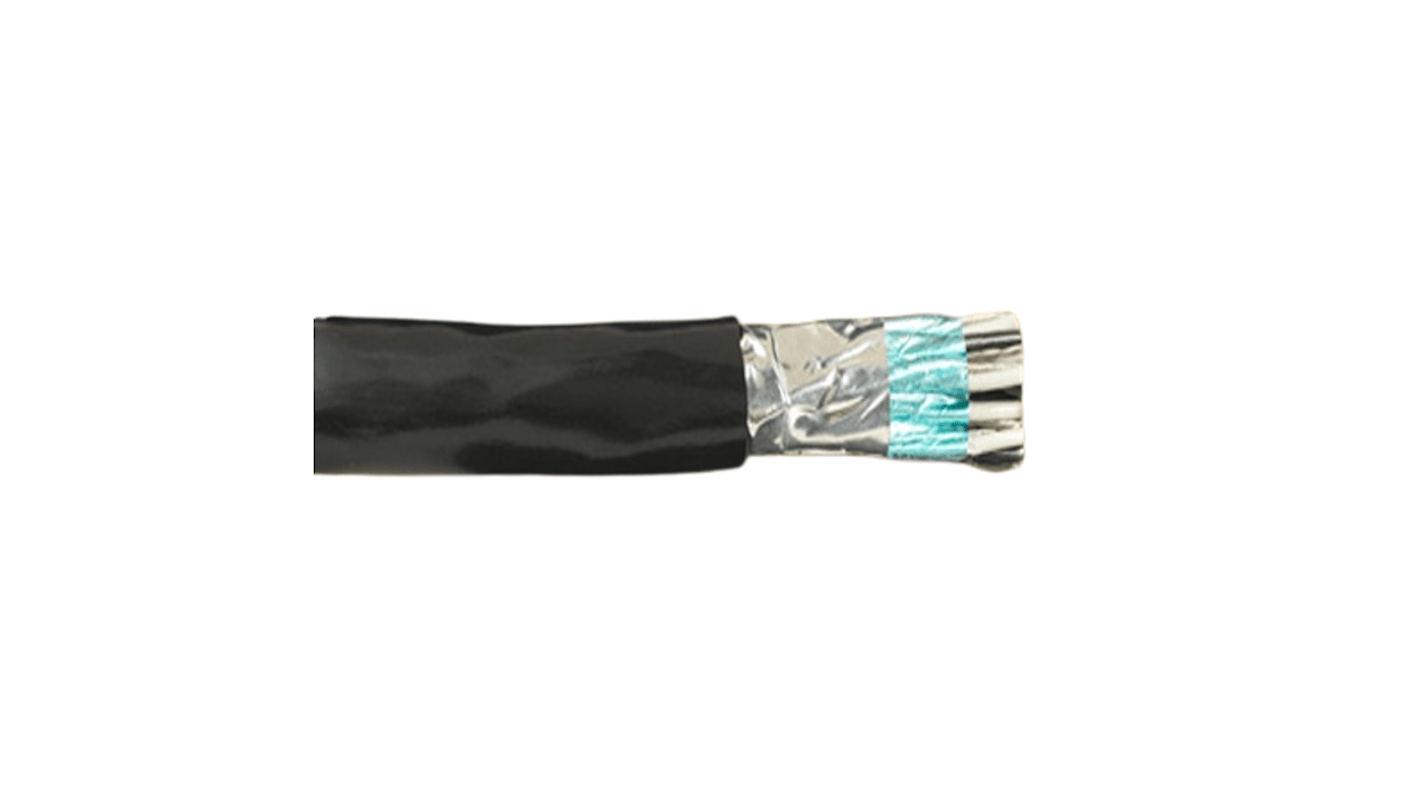

Alpha Wire Alpha Essentials Communication & Control Series Twisted Pair Cable, 0.2918 mm², 100 ft, Grey Sheath Polyvinyl
- RS 제품 번호:
- 277-8195
- Distrelec 제품 번호:
- 301-34-064
- 제조사 부품 번호:
- 6306 SL005
- 제조업체:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
₩78,351.00
일시적 품절
- 2026년 4월 21일 부터 4 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당 | 릴당 | 미터당* |
|---|---|---|
| 1 + | ₩78,351.00 | ₩2,611.05 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 277-8195
- Distrelec 제품 번호:
- 301-34-064
- 제조사 부품 번호:
- 6306 SL005
- 제조업체:
- Alpha Wire
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Alpha Wire | |
| Product Type | Twisted Pair Cable | |
| Cross Sectional Area | 0.2918 mm² | |
| Cable Length | 100ft | |
| Jacket Colour | Grey | |
| Minimum Operating Temperature | -20°C | |
| Jacket Material | Polyvinyl Chloride | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | CE: EU Low Voltage Directive 2014/35/EU, CSA International C(UL) TYPE CMG 60°C FT4, California Proposition 65, EU Directive 2015/863/EU (RoHS3), REACH Regulation (EC 1907/2006), CE: EU Directive 2011/65/EU(RoHS2), UL AWM/STYLE 2464 | |
| Conductor Material | Tin Copper Wire | |
| Voltage | 300Vrms | |
| Core Strands | 24 | |
| Series | Alpha Essentials Communication & Control | |
| 모두 선택 | ||
|---|---|---|
브랜드 Alpha Wire | ||
Product Type Twisted Pair Cable | ||
Cross Sectional Area 0.2918 mm² | ||
Cable Length 100ft | ||
Jacket Colour Grey | ||
Minimum Operating Temperature -20°C | ||
Jacket Material Polyvinyl Chloride | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals CE: EU Low Voltage Directive 2014/35/EU, CSA International C(UL) TYPE CMG 60°C FT4, California Proposition 65, EU Directive 2015/863/EU (RoHS3), REACH Regulation (EC 1907/2006), CE: EU Directive 2011/65/EU(RoHS2), UL AWM/STYLE 2464 | ||
Conductor Material Tin Copper Wire | ||
Voltage 300Vrms | ||
Core Strands 24 | ||
Series Alpha Essentials Communication & Control | ||
제외
The Alpha Wire 4 conductor communication cables provide precise signal transmission in computers and control applications. Its conductors are made from tinned copper.
RoHS and REACH compliant
Bend radius of 10X cable diameter
