Siemens PROFIBUS Series Multi-Core Industrial Cable, 1 Pairs, 20 m, Purple Sheath Polyethylene
- RS 제품 번호:
- 265-8845
- 제조사 부품 번호:
- 6XV18300EN20
- 제조업체:
- Siemens
Subtotal (1 unit)*
₩83,998.40
재고있음
- 추가로 2026년 3월 23일 부터 19 개 단위 배송
- 추가로 2026년 3월 24일 부터 16 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩83,998.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 265-8845
- 제조사 부품 번호:
- 6XV18300EN20
- 제조업체:
- Siemens
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Siemens | |
| Product Type | Multi-Core Industrial Cable | |
| Number of Pairs | 1 | |
| Cable Length | 20m | |
| Jacket Colour | Purple | |
| Outside Diameter | 8 mm | |
| Minimum Operating Temperature | -40°C | |
| Conductor Type | Stranded | |
| Jacket Material | Polyethylene | |
| Maximum Operating Temperature | 75°C | |
| Standards/Approvals | REACH, RoHS, UL, CE, EAC | |
| Fire Behaviour | Flame Resistant | |
| Conductor Material | Tin Copper Wire | |
| Series | PROFIBUS | |
| Voltage | 100 V | |
| 모두 선택 | ||
|---|---|---|
브랜드 Siemens | ||
Product Type Multi-Core Industrial Cable | ||
Number of Pairs 1 | ||
Cable Length 20m | ||
Jacket Colour Purple | ||
Outside Diameter 8 mm | ||
Minimum Operating Temperature -40°C | ||
Conductor Type Stranded | ||
Jacket Material Polyethylene | ||
Maximum Operating Temperature 75°C | ||
Standards/Approvals REACH, RoHS, UL, CE, EAC | ||
Fire Behaviour Flame Resistant | ||
Conductor Material Tin Copper Wire | ||
Series PROFIBUS | ||
Voltage 100 V | ||
- COO (Country of Origin):
- SK

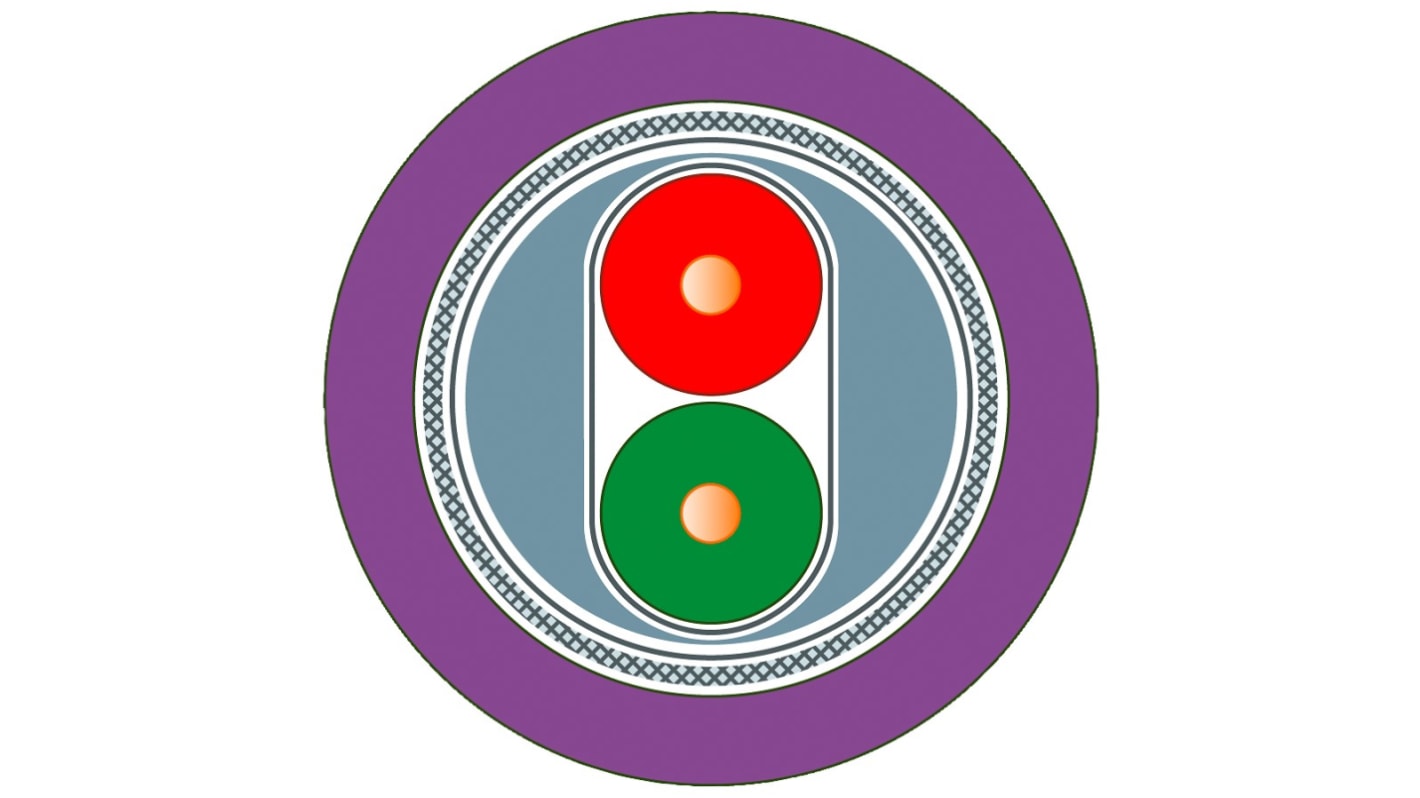

Siemens PROFIBUS Series Multicore Industrial Cable, 20m Length, 8mm Outer Diameter - 6XV18300EN20
This multicore industrial cable is designed for fast and reliable communication in automation and control systems. It connects devices within PROFIBUS networks, ensuring efficient data transmission over its 20m length. The screened cable reduces signal interference, maintaining the integrity of communications in industrial environments.
Features & Benefits
• Shielded design minimises electromagnetic interference
• Aluminium foil with a braided tin-plated copper screen for strength
• Operating temperature range of -40 to +75°C provides versatility
• Bending radius accommodates various installation scenarios
• High attenuation ratings enhance signal integrity
• 2-core configuration simplifies installation and connection
Applications
• Suitable for connecting PROFBUS devices in industrial settings
• Ideal for fast, permanent installations
• Appropriate for automation systems requiring dependable data transmission
• Compatible with electrical equipment in challenging environments
How should the cable be handled during installation?
It is important to maintain the minimum bending radius to prevent damage and ensure optimal performance; for single bends, it should not be less than 37.5mm.
Can this cable be used in outdoor applications?
Yes, it is resistant to UV radiation, making it suitable for outdoor use, provided other installation requirements are met.
What is the voltage rating of this cable?
The operating voltage rating is 100V RMS, suitable for many industrial applications.
