Belden 8444 Series Multicore Industrial Cable, 4 Cores, 0.36 mm², Unscreened, 22 AWG, 152m, Tinned Copper Shield
- RS 제품 번호:
- 823-055
- 제조사 부품 번호:
- 8444 060500
- 제조업체:
- Belden
Subtotal (1 reel of 152 units)*
₩1,079,759.20
재고있음
- 8 개 단위 배송 준비 완료
- 추가로 2025년 12월 30일 부터 1 개 단위 배송
- 추가로 2026년 1월 09일 부터 10 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당 | 릴당 | 한팩당* |
|---|---|---|
| 1 + | ₩1,079,759.20 | ₩7,104.52 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 823-055
- 제조사 부품 번호:
- 8444 060500
- 제조업체:
- Belden
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Belden | |
| Cross Sectional Area | 0.36 mm² | |
| Number of Cores | 4 | |
| American Wire Gauge | 22 AWG | |
| Screened/Unscreened | Unscreened | |
| Length | 152m | |
| Shield Type | Tinned Copper | |
| Sheath Colour | Chrome | |
| CPR Certification | Eca | |
| Outer Diameter | 4.7mm | |
| Outer Sheath Material | PVC | |
| Minimum Operating Temperature | -20°C | |
| Voltage Rating | 150 V | |
| Series | 8444 | |
| Core Strands | 7/0.25 mm | |
| Standards Met | Euroclass Eca | |
| Maximum Operating Temperature | +80°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 Belden | ||
Cross Sectional Area 0.36 mm² | ||
Number of Cores 4 | ||
American Wire Gauge 22 AWG | ||
Screened/Unscreened Unscreened | ||
Length 152m | ||
Shield Type Tinned Copper | ||
Sheath Colour Chrome | ||
CPR Certification Eca | ||
Outer Diameter 4.7mm | ||
Outer Sheath Material PVC | ||
Minimum Operating Temperature -20°C | ||
Voltage Rating 150 V | ||
Series 8444 | ||
Core Strands 7/0.25 mm | ||
Standards Met Euroclass Eca | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- US

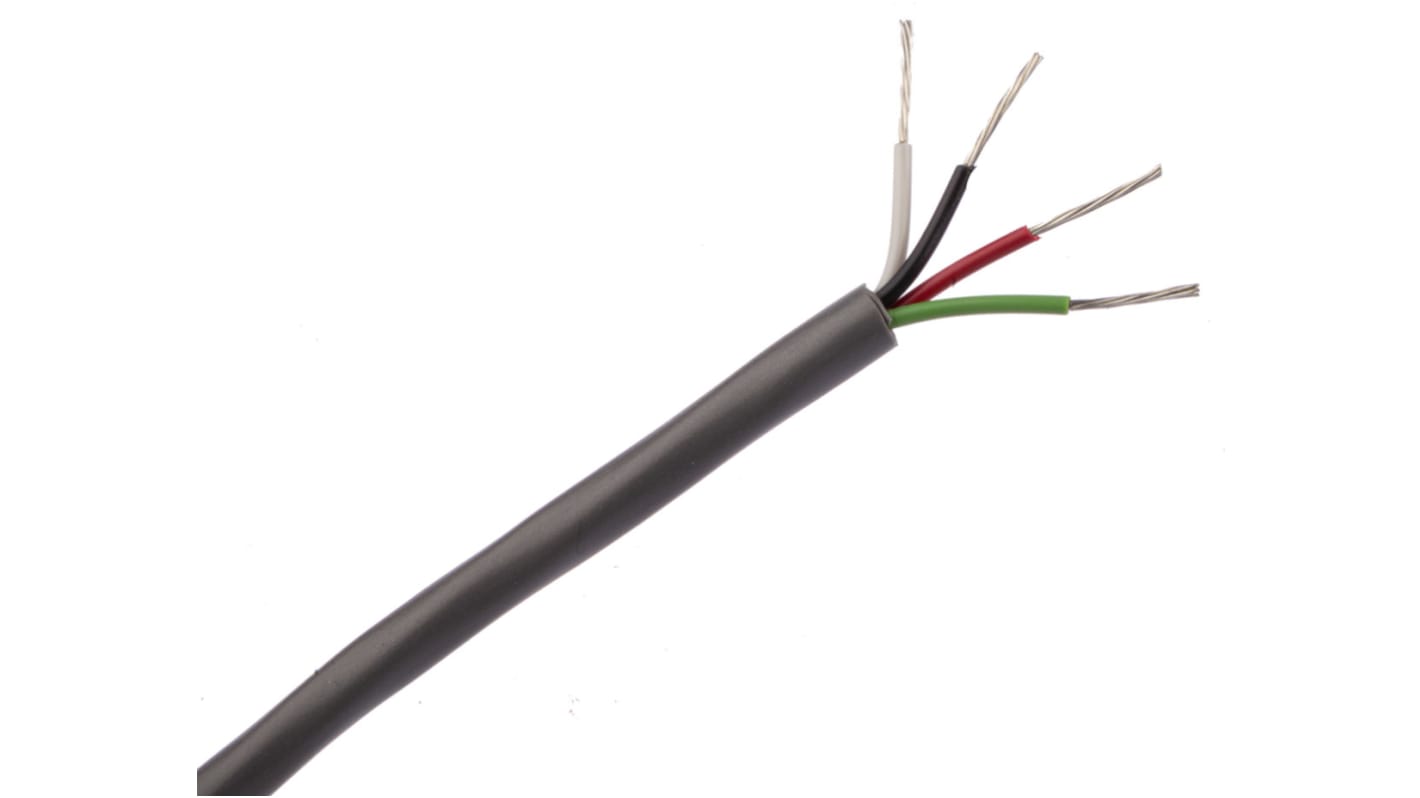

Belden Multicore Industrial Cable, PVC Outer Jacket, 4.7mm OD - 8444 060500
Need a reliable solution for transmitting multiple signals to your machinery? Send the right messages with this multicore industrial cable from Belden. There are four cores, each made up of seven strands, which are colour-coded to make connection to the right circuit easy. Thanks to its broad operating temperature range between -20°C and +80°C, this is a tough choice for use in harsh environments. Its tough PVC outer jacket has self-extinguishing properties to help stop flames from spreading if a fire breaks out.
• Jacket has nominal wall thickness of 0.81mm to resist tears
• Robust tinned copper conductors deliver high electrical conductivity
• Suitable for indoor use for safe operation
• Robust tinned copper conductors deliver high electrical conductivity
• Suitable for indoor use for safe operation
Applications
• Automotive engineering
• Audio-visual devices
• Oil and gas industry
• Telecommunications networks
• Audio-visual devices
• Oil and gas industry
• Telecommunications networks
How long is this cable?
As this cable is 152m long, you'll have enough at hand to reach devices that are set far apart or to cut down for multiple jobs.
Standards
NEC CMG; UL AWM 2576; CEC CMG
