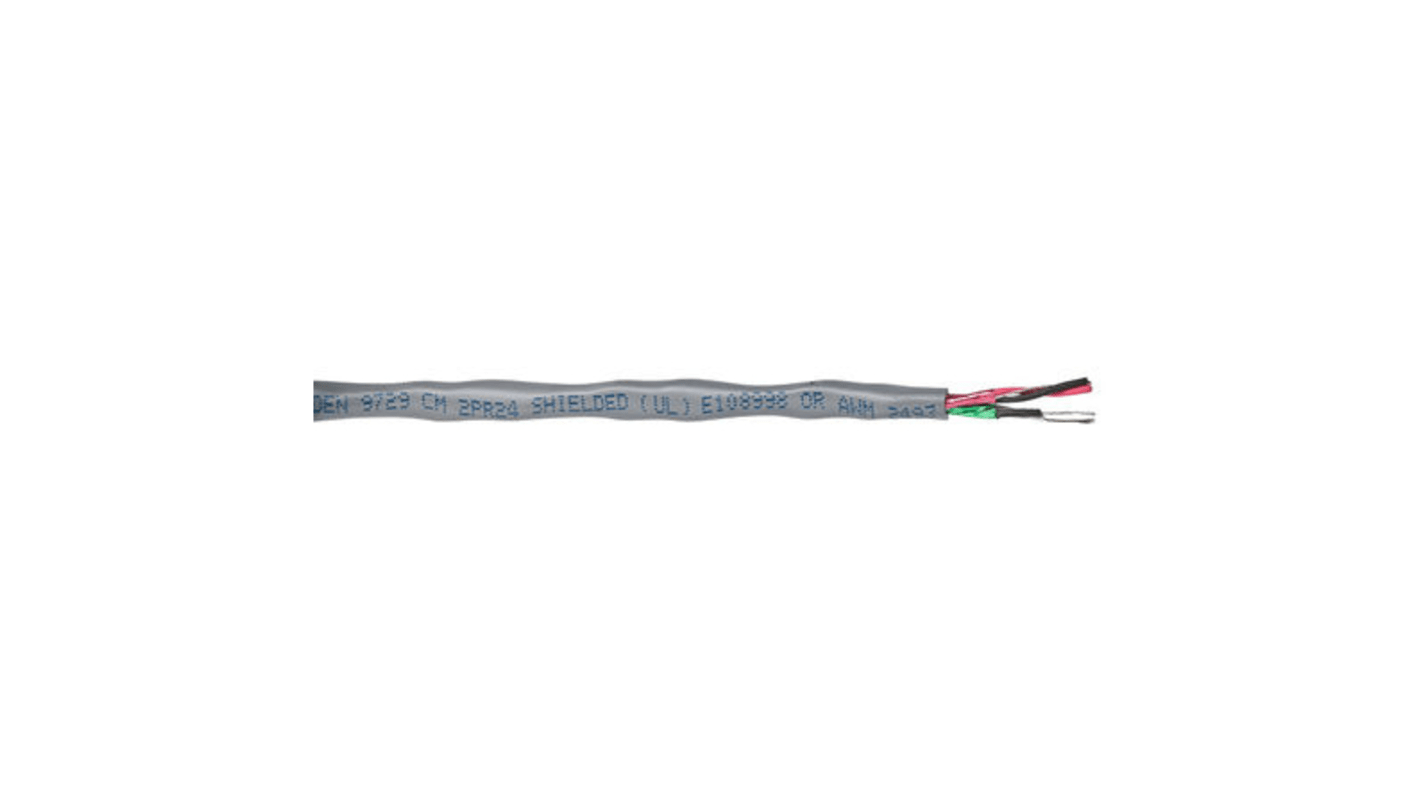

Belden YE00415 Series Data Cable, 2 Pairs, 0.22 mm², 30 m, Silver Sheath Polyvinyl Chloride
- RS 제품 번호:
- 802-373
- 제조사 부품 번호:
- 9729.003
- 제조업체:
- Belden
Subtotal (1 reel of 30 metres)*
₩352,033.50
재고있음
- 추가로 2026년 5월 18일 부터 8 개 단위 배송
- 추가로 2026년 8월 05일 부터 4 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당 | 릴당 | 미터당* |
|---|---|---|
| 1 + | ₩352,033.50 | ₩11,735.10 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 802-373
- 제조사 부품 번호:
- 9729.003
- 제조업체:
- Belden
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Belden | |
| Number of Pairs | 2 | |
| Product Type | Data Cable | |
| Cross Sectional Area | 0.22 mm² | |
| Cable Length | 30m | |
| Jacket Colour | Silver | |
| Outside Diameter | 6.76mm | |
| Minimum Operating Temperature | -20°C | |
| Conductor Type | Stranded | |
| Jacket Material | Polyvinyl Chloride | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | UL | |
| Fire Behaviour | UL1685 UL Loading, FT1 | |
| Conductor Material | Tin Copper Wire | |
| Core Strands | 7 | |
| Series | YE00415 | |
| Voltage | 300V | |
| 모두 선택 | ||
|---|---|---|
브랜드 Belden | ||
Number of Pairs 2 | ||
Product Type Data Cable | ||
Cross Sectional Area 0.22 mm² | ||
Cable Length 30m | ||
Jacket Colour Silver | ||
Outside Diameter 6.76mm | ||
Minimum Operating Temperature -20°C | ||
Conductor Type Stranded | ||
Jacket Material Polyvinyl Chloride | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals UL | ||
Fire Behaviour UL1685 UL Loading, FT1 | ||
Conductor Material Tin Copper Wire | ||
Core Strands 7 | ||
Series YE00415 | ||
Voltage 300V | ||
- COO (Country of Origin):
- NL
Belden 9729.003 Data Cable
Belden Individually Shielded Extended Distance Multipair Cable, RS-232/422
The individually shielded extended distance cable from Belden provides efficient and reliable signal communication for your application.
It uses 24 AWG (7x32) tinned copper conductors for high conductivity, which are insulated with Datalene® and laid in twisted pairs. It also features the signature Beldfoil® patented shield which offers lightweight, flexible, and strong shielding. The nominal characteristic impedance is 100 Ohm.
Belden’s multipair cables are designed to ensure dependable signaling for critical applications and support ease-of-installation, for a signal transmission solution you can rely on.
Features and Benefits:
• Highly recommended for use in RS422 systems
• Uses stranded tinned copper drain wire for effective grounding
• Twisted pair construction negates crosstalk and guards against EMI (electromagnetic interference)
• 100% coverage due to Beldfoil aluminium-polyester shield with a Zfold construction on each pair
Applications:
RS-422
RS-232
Panel wiring
Computer communications
Low voltage analog signals
Low voltage digital control
Digital audio
What is Datalene® and why is it used?
Datalene® is a type of foamed high density polyethylene insulation which used for computer and data transmission cables. It is crush-resistant yet lightweight and performs well over a wide range of temperatures, making it highly beneficial for electronic cabling in industrial and commercial environments.
Standards:
UL2493; NEC CM (9729,9730,9728); IEC 332-3C (9729NH)
