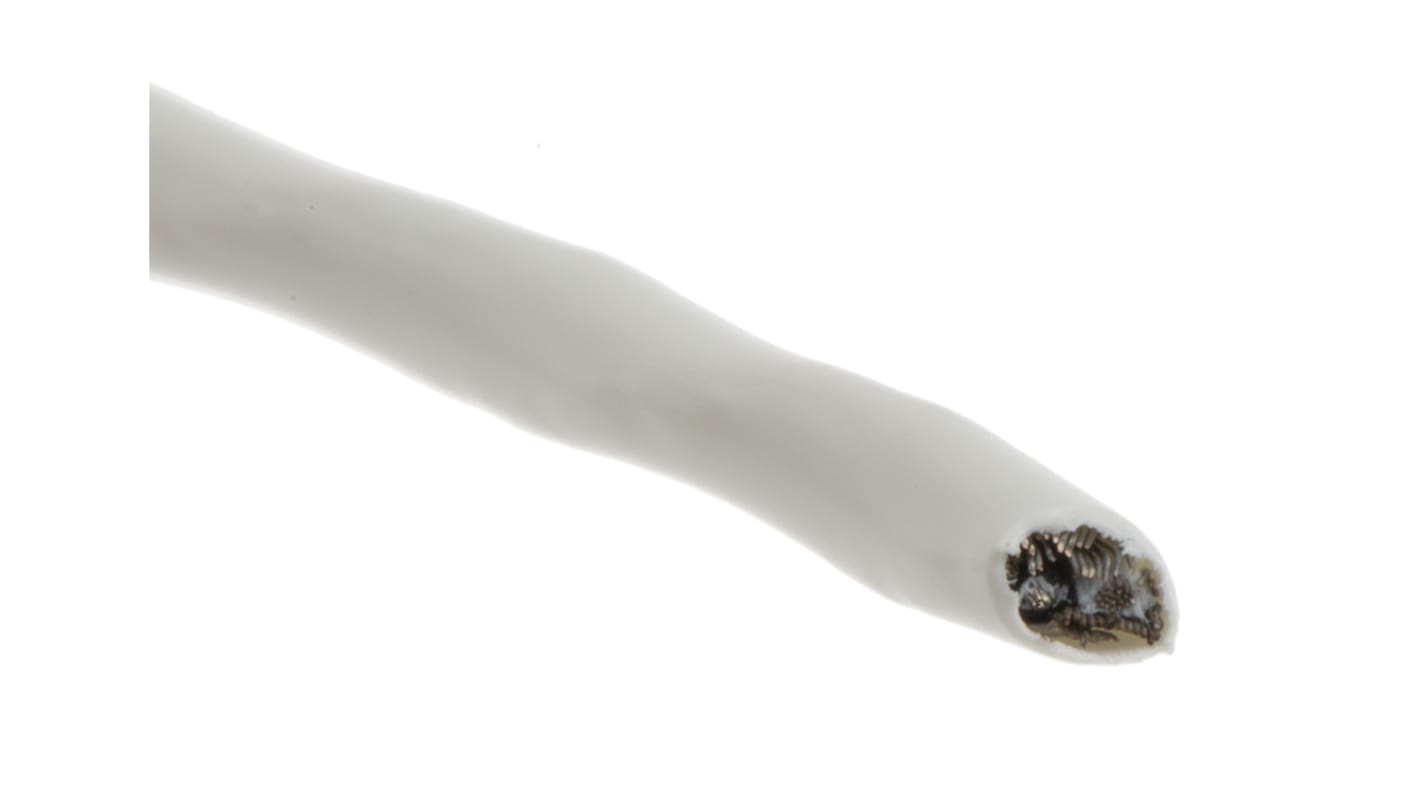

TE Connectivity SPEC44 Series Data Cable, 1 Pairs, 2 Cores, 0.25 mm², Screened, 24 AWG, 100m, Screened Shield, Type 44
- RS 제품 번호:
- 362-550
- Distrelec 제품 번호:
- 303-99-873
- 제조사 부품 번호:
- 44A1121-24-0/9-9
- 제조업체:
- TE Connectivity
대량 구매 할인 기용 가능
Subtotal (1 reel of 100 metres)*
₩656,984.80
재고있음
- 추가로 2025년 12월 22일 부터 45 개 단위 배송
- 추가로 2026년 2월 04일 부터 24 개 단위 배송
- 추가로 2026년 2월 18일 부터 16 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
릴당 | 릴당 | 미터당* |
|---|---|---|
| 1 - 49 | ₩656,984.80 | ₩6,570.60 |
| 50 + | ₩640,572.40 | ₩6,405.16 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 362-550
- Distrelec 제품 번호:
- 303-99-873
- 제조사 부품 번호:
- 44A1121-24-0/9-9
- 제조업체:
- TE Connectivity
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | TE Connectivity | |
| Number of Pairs | 1 | |
| Cross Sectional Area | 0.25 mm² | |
| Number of Cores | 2 | |
| American Wire Gauge | 24 AWG | |
| Screened/Unscreened | Screened | |
| Length | 100m | |
| Shield Type | S/UTP | |
| Sheath Colour | White | |
| Cable Type | Type 44 | |
| Outer Diameter | 2.99mm | |
| Outer Sheath Material | PVDF | |
| Cable Shape | Twisted Pair | |
| Core Strands | 19/0.13 mm | |
| Voltage Rating | 600 V | |
| Series | SPEC44 | |
| Shielded/Unshielded | Shielded | |
| Fire Behaviour | Flame Retardant, Low Smoke Density, Self-extinguishing | |
| 모두 선택 | ||
|---|---|---|
브랜드 TE Connectivity | ||
Number of Pairs 1 | ||
Cross Sectional Area 0.25 mm² | ||
Number of Cores 2 | ||
American Wire Gauge 24 AWG | ||
Screened/Unscreened Screened | ||
Length 100m | ||
Shield Type S/UTP | ||
Sheath Colour White | ||
Cable Type Type 44 | ||
Outer Diameter 2.99mm | ||
Outer Sheath Material PVDF | ||
Cable Shape Twisted Pair | ||
Core Strands 19/0.13 mm | ||
Voltage Rating 600 V | ||
Series SPEC44 | ||
Shielded/Unshielded Shielded | ||
Fire Behaviour Flame Retardant, Low Smoke Density, Self-extinguishing | ||
- COO (Country of Origin):
- GB
Type 44®
Type 44® wire & cable has widespread uses where environmental conditions demand consistently reliable performance. This mechanically tough wire & cable is easy to handle and install.
Features & Benefits
Dual wall construction
Small size, lightweight
Low smoke and corrosive gas generation
Resistant to most chemicals & electrical arc tracking
Highly flame retardant
600 V Voltage Rating
Applications
Commercial
Military electronics
Avionics
Satellites
Aircraft
Helicopters
Ships
Railways
Military ground systems
Oil industries
Standards
Defence Standard 61-12 Part 18 Type 1 (Maintenance Wire) & Part 26 (Screened and Jacketed)
Standards
Defence Standard 61 - 12 Part 18 Issue 3 Type 1 (Maintenance Wire) and Part 26
