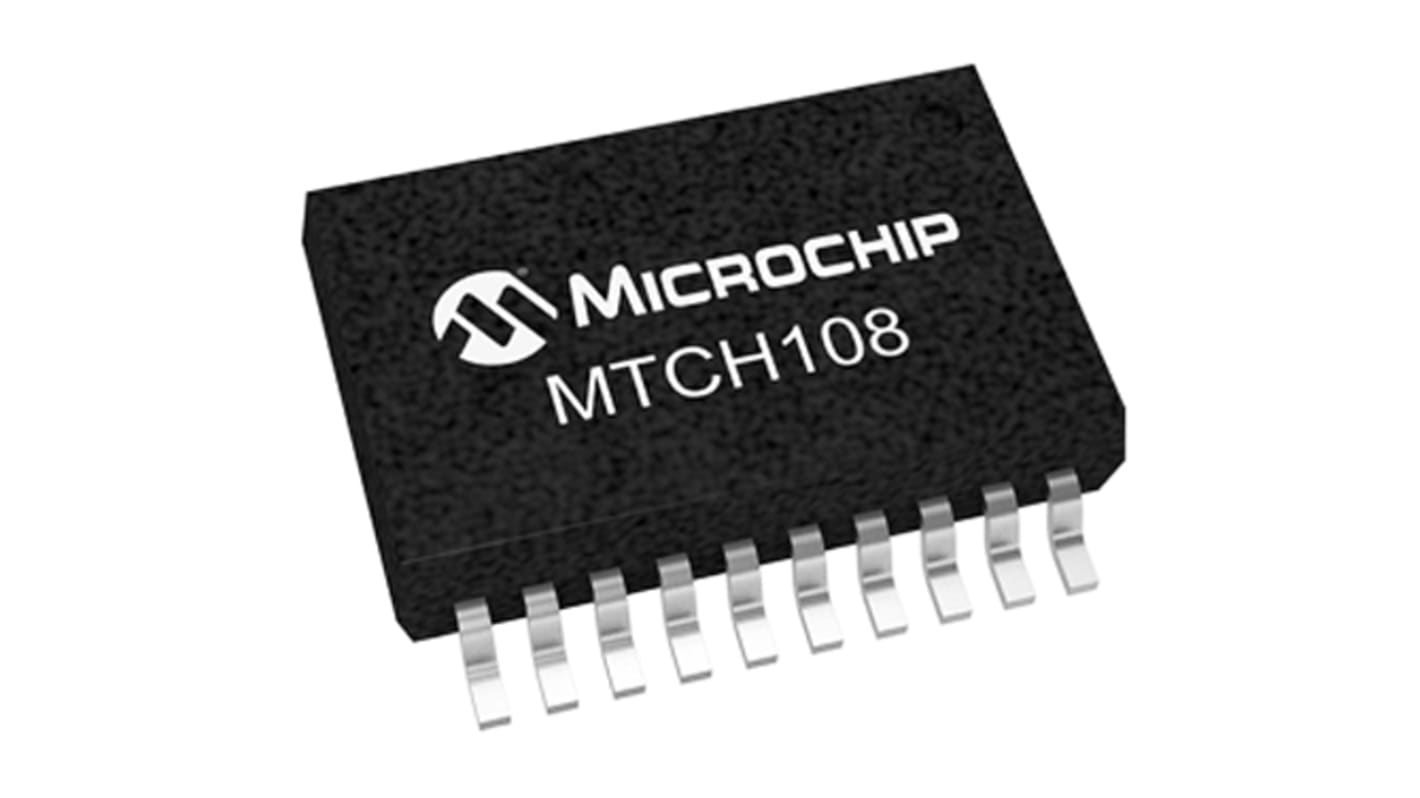

Microchip MTCH108-I/SS Capacitive Touch Screen Controller Simple I/O Touch Screen Controller, 20-Pin SSOP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Touch Screen Sensor ICs 열람하기
대량 구매 할인 기용 가능

Subtotal (1 tube of 67 units)*

₩117,646.64

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 737 개 unit(s)이 배송 준비 됨
수량
한팩당
Per Tube*
67 - 67₩1,755.92₩117,609.04
134 - 603₩1,720.20₩115,266.56
670 +₩1,686.36₩112,948.52

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
146-0306
제조사 부품 번호:
MTCH108-I/SS
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Product Type

Touch Screen Controller

Interface Type

Simple I/O

Sub Type

Touch Screen Controller

Sensing Technology

Capacitive

Mount Type

Surface

Input Type

1 TSC

Package Type

SSOP

Pin Count

20

Minimum Supply Voltage

2.05V

Maximum Supply Voltage

3.6V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

No

Length

7.5mm

Width

5.6 mm

Height

1.85mm

Series

MTCH102/5/8

Automotive Standard

No

Supply Current

85mA

COO (Country of Origin):
TH

MTCH102/105/108 Capacitive Proximity Touch Controllers


The MTCH102, MTCH105 and MTCH108 devices from Microchip are Capacitive Touch/Proximity Controller ICs that convert touch or proximity detection into a simple digital output. The sensitivity level of the controller is configurable and a low-power mode included, allowing for easy optimisation.

Features


High Signal to Noise Ratio (SNR)

Adjustable Sensitivity with Compensation for Different Sensor Sizes

Multi-Stage Active Noise Suppression Filters

Automatic Environmental Compensation

Supports a Wide Range of Sensor Shapes and Sizes

Simple I/O Interface

Smart Scan Scheduling

Threshold Hysteresis

Flexible Low-Power Mode

Brown-Out Protection

Operating Voltage Range: 2.05V to 3.6V

Operating Temperature: -40°C to +85°C

Human Machine Interface (HMI), Microchip
