DMC Co Ltd AST-065B080A 6.5in 4-wire Resistive Touch Screen Overlay, 139 x 104mm

모든 Touch Screen Overlays 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩81,028.00

Add to Basket
수량 선택 또는 입력
마지막 RS 재고
  • 최종적인 986 개 unit(s)이 배송 준비 됨
단위당
한팩당
1 - 1₩81,028.00
2 - 4₩79,712.00
5 +₩78,001.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:
476-466
제조 부품 번호:
AST-065B080A
제조업체:
DMC Co Ltd
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

DMC Co Ltd

Viewing Area Diagonal Size

6.5in

Viewing Area Dimensions

139 x 104mm

External Dimensions

117 x 155mm

Active Area

133 x 100mm

Sensor Type

4 Wire Resistive

Active Area Height

133mm

Active Area Width

100mm

External Height

155mm

External Width

117mm

Viewing Area Height

139mm

Viewing Area Width

104mm

Voltage Rating

6V dc

Current Rating

100mA

COO (Country of Origin):
JP

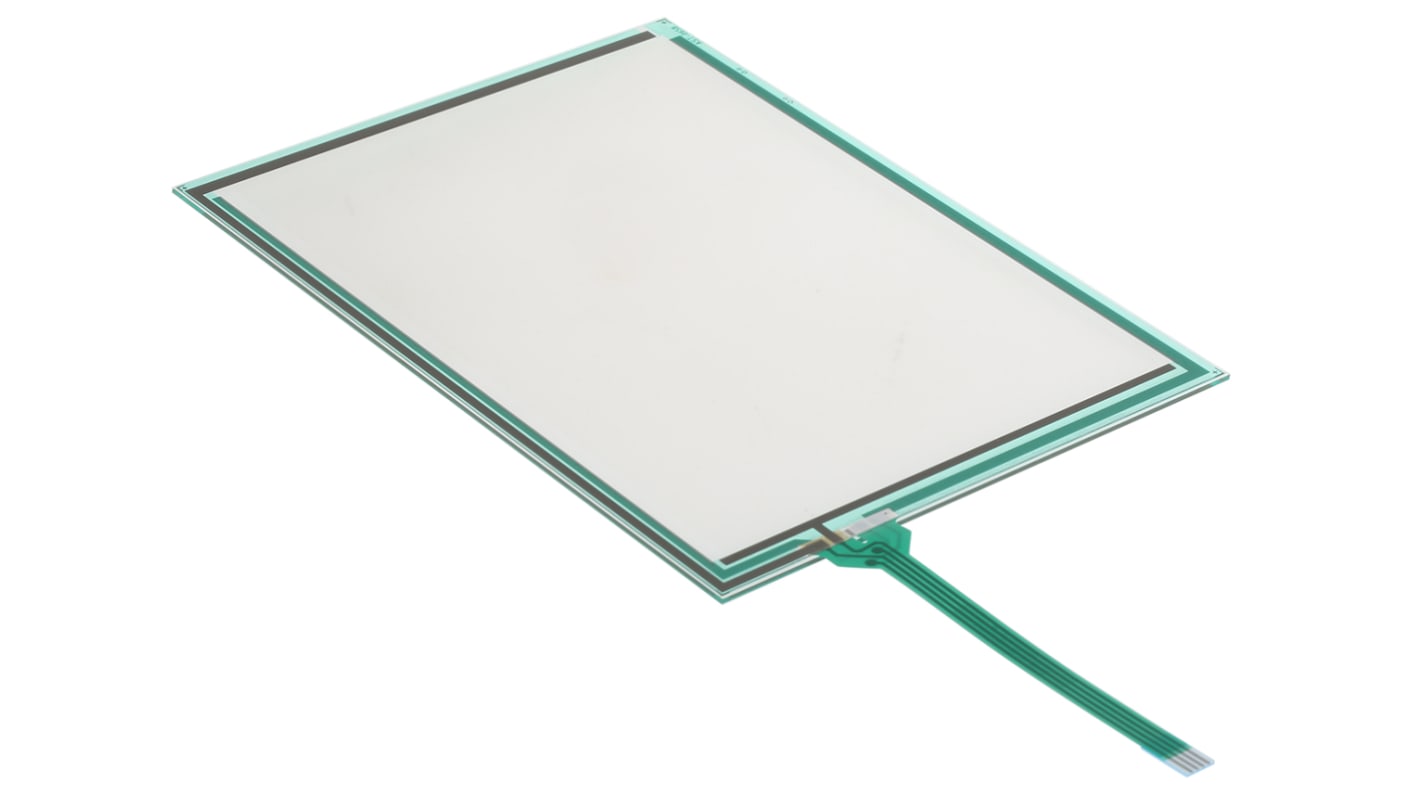

DMC Touch Screen


The DMC touch screen sensor is suitable for displays having a size of 6.5in. It has resistive touch technology and a 4-wire connection.
Note:
See stock number 476-444 for analogue touch screen controller card.

Features and Benefits


Outline depth is 1.40mm
Outline horizontal dimension is 155.00mm
Outline vertical dimension is 117.00mm
Light Transmittance is 80% (typical)
Voltage rating is 6VDC
Current rating is 100mA
Terminal Resistance: <1kohm
Operating Life is >10 million touches
Interface touch is USB, RS232
Operating temperature ranges between -20°C and 70°C

Applications


Consumer electronics
Industry applications

Certifications


ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
