RS PRO 115 V ac, 230 V ac, 2 x 55V ac Toroidal Transformer, 50VA 2 Output
- RS 제품 번호:
- 540-4974
- 제조업체:
- RS PRO
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩96,876.40
재고있음
- 20 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩96,876.40 |
| 10 - 24 | ₩94,432.40 |
| 25 - 49 | ₩93,605.20 |
| 50 - 249 | ₩93,530.00 |
| 250 + | ₩76,967.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 540-4974
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Primary Voltage Rating | 115 V ac, 230 V ac | |
| Secondary Voltage Rating | 2 x 55V ac | |
| Power Rating | 50VA | |
| Number of Outputs | 2 | |
| Secondary Current | 450mA | |
| Height | 34mm | |
| Weight | 760g | |
| Diameter | 80mm | |
| Dimensions | 80 (Dia.) x 34mm | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Fixing Hole Diameter | 6mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Primary Voltage Rating 115 V ac, 230 V ac | ||
Secondary Voltage Rating 2 x 55V ac | ||
Power Rating 50VA | ||
Number of Outputs 2 | ||
Secondary Current 450mA | ||
Height 34mm | ||
Weight 760g | ||
Diameter 80mm | ||
Dimensions 80 (Dia.) x 34mm | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Fixing Hole Diameter 6mm | ||
- COO (Country of Origin):
- PL

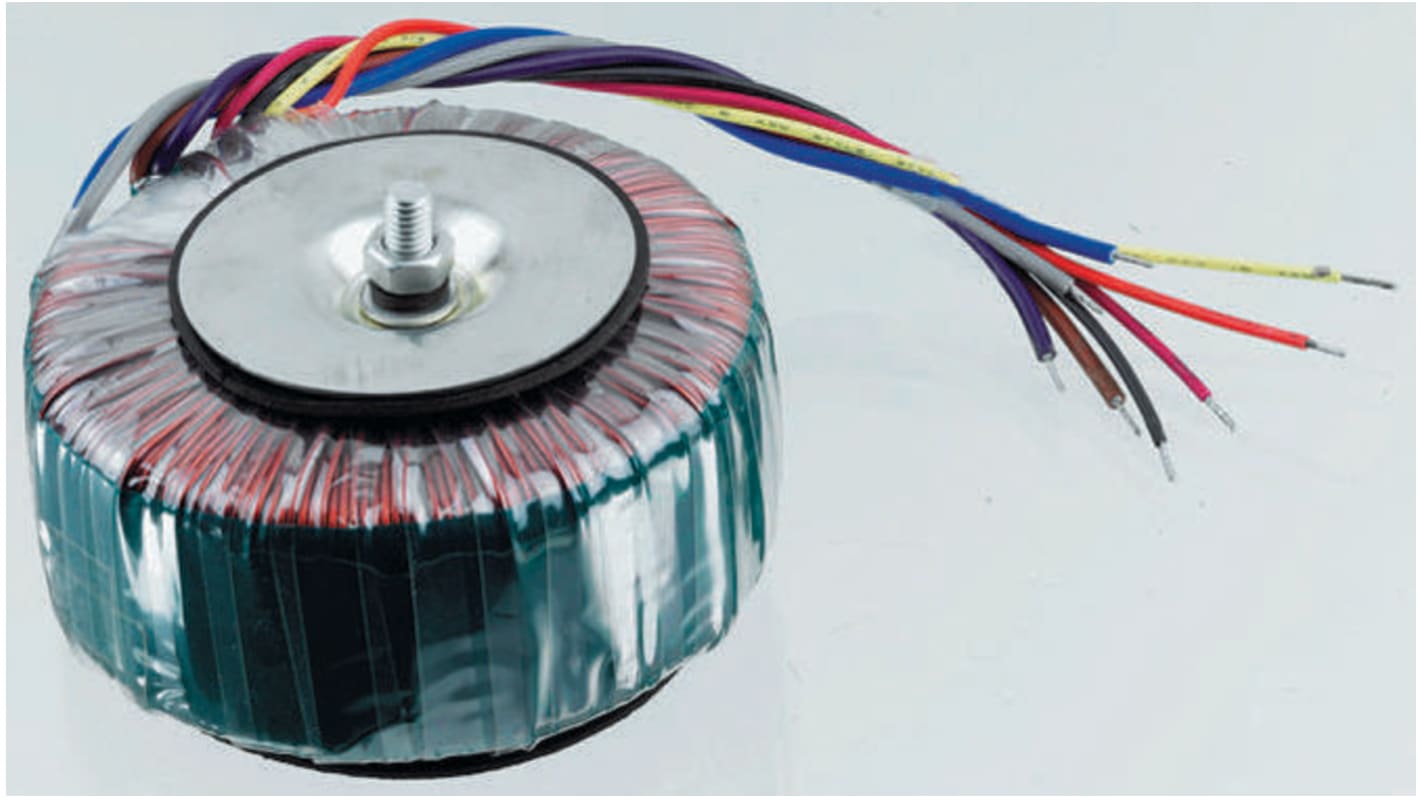

Open Form Toroidal Transformers, 115-230Vac Primary, 30VA & 50VA
Small size and low weight compared with traditional stacked laminated transformers
Both primary and secondary windings may be connected in series or parallel
Low induced noise (hum)
Low level of radiated magnetic field
Flexible leadouts, for ease of installation
100% electrical and flash testing
Both primary and secondary windings may be connected in series or parallel
Low induced noise (hum)
Low level of radiated magnetic field
Flexible leadouts, for ease of installation
100% electrical and flash testing
Standards
EN61558, IEC742
Warning
Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.
Approvals
CE marked, UL506, UL1411 and UL478
Supplied with
Full mounting kit
Approvals
CE marked, UL506, UL1411 and UL478
