Open Style with Leads, 15VA to 1000VA

High-quality open style toroidal transformers with a single 230 Vac 50/60 Hz primary winding. Twin secondary windings may be connected in series or parallel or used independently.

Small size and low weight compared with traditional stacked lamination types
Extremely low level of radiated magnetic field and very low induced noise (hum)
Very low iron losses
Double insulated primary leads
100% electrical and flash tested
High-quality manufacturing and testing in accordance to EN61558, EN60950, EN60065, VDE 0551, VDE 0550 and BS415

Standards

UL 506; EN 61558

Warning

Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.

Supplied with

Full mounting kit

Approvals

UL 506; EN 61558

Standards

EN61558; EN60950; EN60065; BS415

Toroidal 230Vac Primary 15VA to 1000VA

수량	한팩당
1 - 24	₩241,448.40
25 +	₩229,378.80

모두 선택	제품 정보	값
	브랜드	Nuvotem Talema
	Primary Voltage Rating	230V ac
	Secondary Voltage Rating	2 x 45V ac
	Power Rating	500VA
	Number of Outputs	2
	Secondary Current	5.56A
	Height	60mm
	Weight	3.5kg
	Diameter	136mm
	Dimensions	136 (Dia.) x 60mm
	Maximum Operating Frequency	450Hz
	Termination Type	Copper Conductor Termination Wire
	Isolation Voltage	4.5kV ac
	Maximum Temperature	+120°C
	Minimum Temperature	0°C

	모두 선택
	브랜드 Nuvotem Talema
	Primary Voltage Rating 230V ac
	Secondary Voltage Rating 2 x 45V ac
	Power Rating 500VA
	Number of Outputs 2
	Secondary Current 5.56A
	Height 60mm
	Weight 3.5kg
	Diameter 136mm
	Dimensions 136 (Dia.) x 60mm
	Maximum Operating Frequency 450Hz
	Termination Type Copper Conductor Termination Wire
	Isolation Voltage 4.5kV ac
	Maximum Temperature +120°C
	Minimum Temperature 0°C

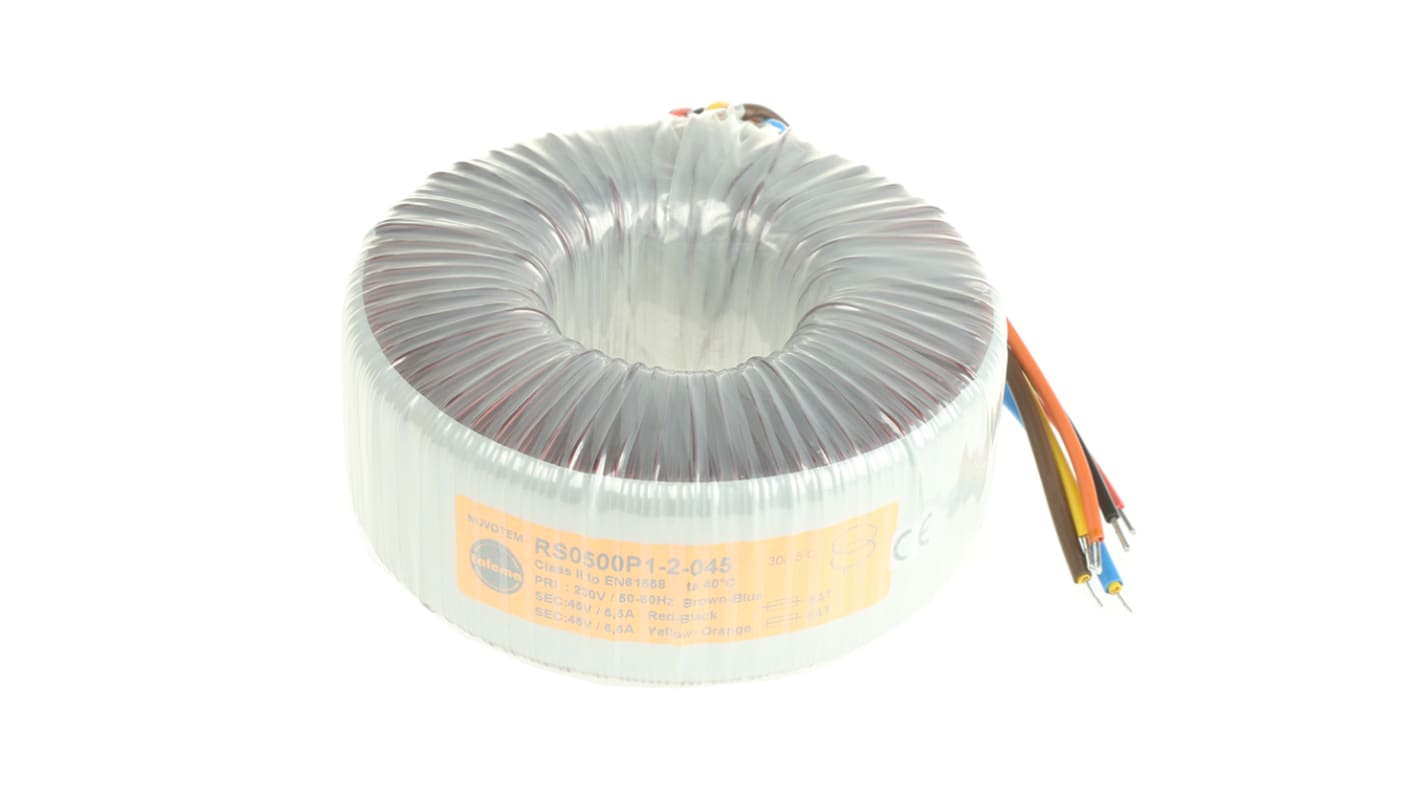

Nuvotem Talema 230V ac, 2 x 45V ac Toroidal Transformer, 500VA 2 Output
