RS PRO 230 V ac 11.8 V ac Toroidal Transformer 2 Output 105 VA, IEC61558 Class II, EN61558 Class II, UL506, VDE0570
- RS 제품 번호:
- 173-0244
- 제조업체:
- RS PRO

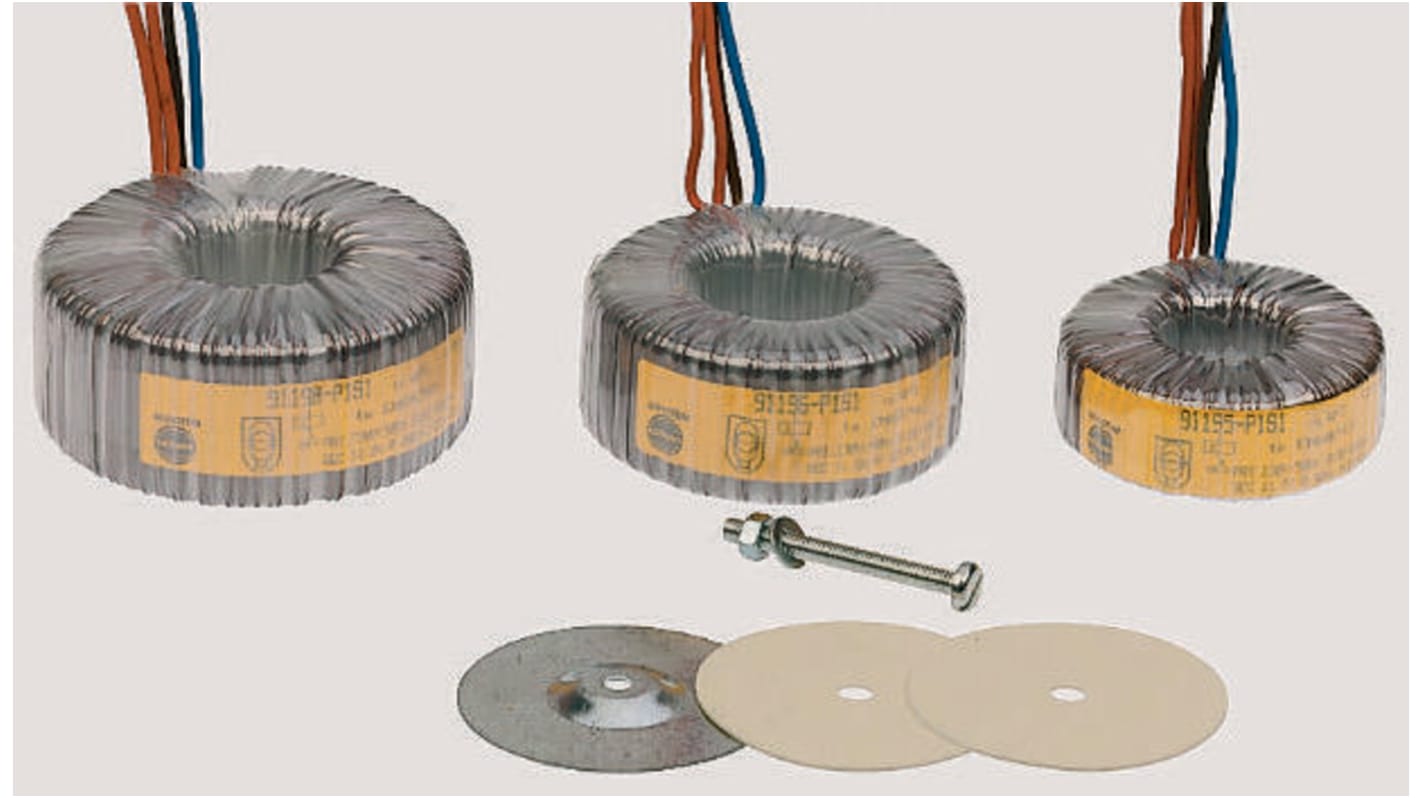

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 Box of 14 units)*
₩1,259,622.56
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 | Per Box* |
|---|---|---|
| 14 - 56 | ₩89,973.04 | ₩1,259,620.68 |
| 70 + | ₩80,975.36 | ₩1,133,656.92 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 173-0244
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Primary Voltage | 230 V ac | |
| Product Type | Toroidal Transformer | |
| Secondary Voltage | 11.8 V ac | |
| Number of Outputs | 2 | |
| Secondary Current | 8.898 A | |
| Power | 105VA | |
| Weight | 1.25kg | |
| Diameter | 93 mm | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Winding Type | Primary Winding, Secondary Winding | |
| Maximum Operating Temperature | 180°C | |
| Height | 46mm | |
| Termination Type | with Lead | |
| Standards/Approvals | IEC61558 Class II, EN61558 Class II, UL506, VDE0570 Class II | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Primary Voltage 230 V ac | ||
Product Type Toroidal Transformer | ||
Secondary Voltage 11.8 V ac | ||
Number of Outputs 2 | ||
Secondary Current 8.898 A | ||
Power 105VA | ||
Weight 1.25kg | ||
Diameter 93 mm | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Winding Type Primary Winding, Secondary Winding | ||
Maximum Operating Temperature 180°C | ||
Height 46mm | ||
Termination Type with Lead | ||
Standards/Approvals IEC61558 Class II, EN61558 Class II, UL506, VDE0570 Class II | ||
Toroidal open wound low voltage lighting transformer
Single primary230 Vac 50 / 60 Hz winding with integral thermal switch
Thermal switch, rated at 120° ±5°C for 50 and 105VA, 125° ±5°C for 150 and 200VA
Double insulated primary leads
Note
Mounting hardware is not supplied, available seperately
Warning
Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.
Approvals
UL506, EN61558
