제조사부품번호

RS PRO 2 x 115 V ac 2 x 12 V Toroidal Transformer, RoHS, REACH

RS 제품 번호:: 173-0112
제조업체:: RS PRO

RS PRO 2 x 115 V ac 2 x 12 V Toroidal Transformer, RoHS, REACH

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

현재 비가용

RS는 이 제품을 더 이상 판매하지 않습니다.

RS 제품 번호:: 173-0112
제조업체:: RS PRO

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	RS PRO
	Product Type	Toroidal Transformer
	Primary Voltage	2 x 115 V ac
	Secondary Voltage	2 x 12 V
	Secondary Current	1785mA
	Weight	82g
	Maximum Operating Frequency	50Hz
	Winding Type	Dual Primary
	Maximum Operating Temperature	60°C
	Mount Type	Through Hole
	Height	18.5mm
	Standards/Approvals	RoHS, REACH

	모두 선택
	브랜드 RS PRO
	Product Type Toroidal Transformer
	Primary Voltage 2 x 115 V ac
	Secondary Voltage 2 x 12 V
	Secondary Current 1785mA
	Weight 82g
	Maximum Operating Frequency 50Hz
	Winding Type Dual Primary
	Maximum Operating Temperature 60°C
	Mount Type Through Hole
	Height 18.5mm
	Standards/Approvals RoHS, REACH

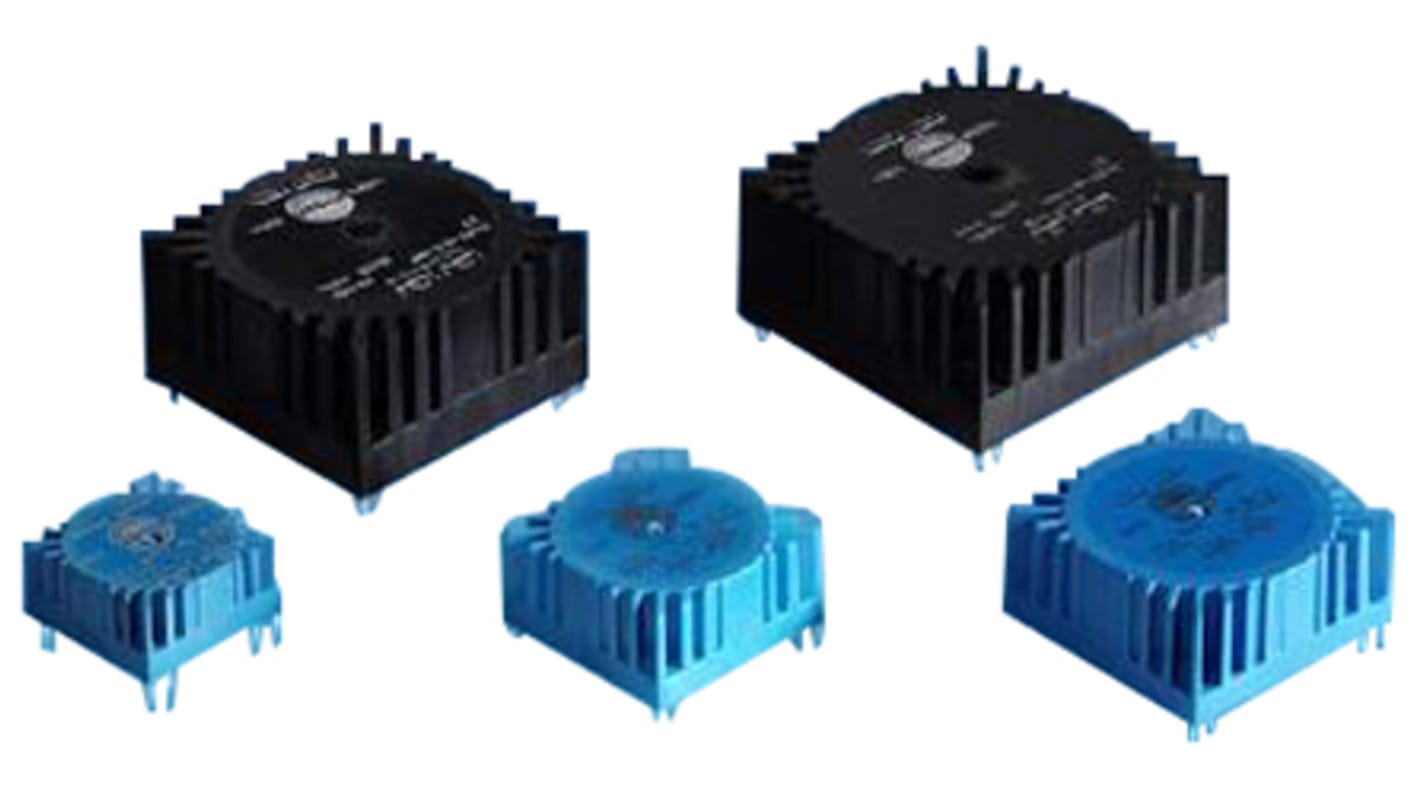

RS Pro Toroidal PC Transformer 1.6VA- 25VA

RS Pro toroidal PC transformers are high efficiency and low profile being a small size and low weight. These Toroidal transformers have low iron loss and low induced noise. Dual 115 V primaries for parallel or series connections.

Features

Lower stray field

Reduced standby current

Test voltage primary- secondary 4.0 KV

Ease of mounting- M4 Centre bush

Ambient operating temperature: +60°C Max

Fully RoHS & REACH compliant

Encapsulated – Toroidal

Note

Fixing screws not provided
