RS PRO 2 x 115 V ac 2 x 50 V ac Toroidal Transformer 2 Output 1000 VA, IECBSEN 615581, RoHS, ASNZS 61558..6, ASNZS
- RS 제품 번호:
- 117-6077
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩318,208.80
재고있음
- 추가로 2026년 2월 23일 부터 10 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩318,208.80 |
| 10 + | ₩305,594.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 117-6077
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Primary Voltage | 2 x 115 V ac | |
| Product Type | Toroidal Transformer | |
| Secondary Voltage | 2 x 50 V ac | |
| Number of Outputs | 2 | |
| Weight | 8.4kg | |
| Power | 1000VA | |
| Diameter | 172 mm | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Winding Type | Dual Primary, Dual Secondary | |
| Mount Type | Bolt Mount | |
| Maximum Operating Temperature | 105°C | |
| Height | 85mm | |
| Termination Type | Termination Wire | |
| Standards/Approvals | IECBSEN 615581, RoHS, ASNZS 61558..6, ASNZS 61558.1, UL506, IECBSEN 615586, CE | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Primary Voltage 2 x 115 V ac | ||
Product Type Toroidal Transformer | ||
Secondary Voltage 2 x 50 V ac | ||
Number of Outputs 2 | ||
Weight 8.4kg | ||
Power 1000VA | ||
Diameter 172 mm | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Winding Type Dual Primary, Dual Secondary | ||
Mount Type Bolt Mount | ||
Maximum Operating Temperature 105°C | ||
Height 85mm | ||
Termination Type Termination Wire | ||
Standards/Approvals IECBSEN 615581, RoHS, ASNZS 61558..6, ASNZS 61558.1, UL506, IECBSEN 615586, CE | ||
- COO (Country of Origin):
- PL

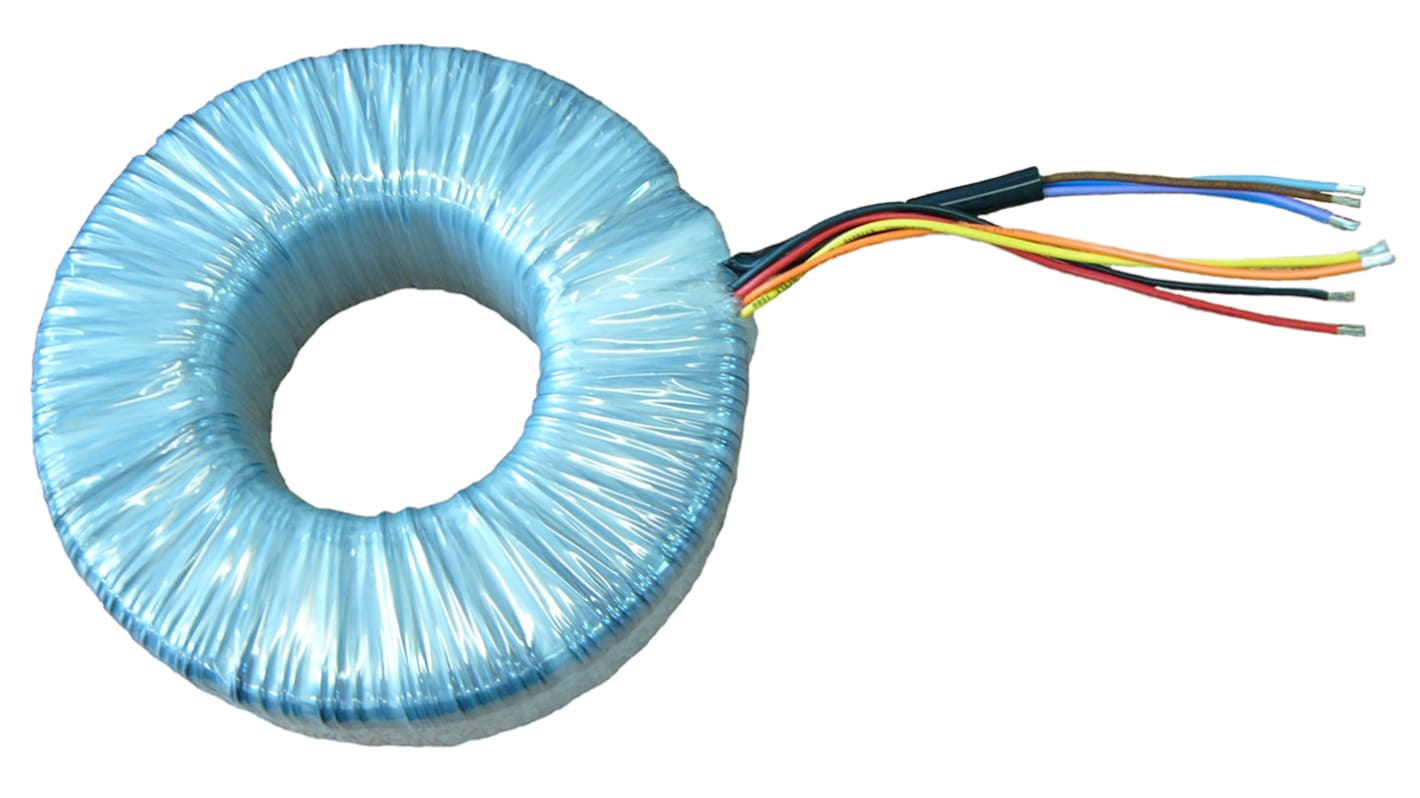

Toroidal Transformers Open 80VA -3000VA
RS Pro offer these open style toroidal transformers designed for use in control circuits and general applications. These high-quality toroidal transformers have low loss and low noise toroidal core. The transformers incorporate primary windings and twin secondary windings which can be connected in series or parallel or used independently.
Features
Environmentally friendly, low energy dissipation
High efficiency, low regulation design
100% electrical and flash tested
