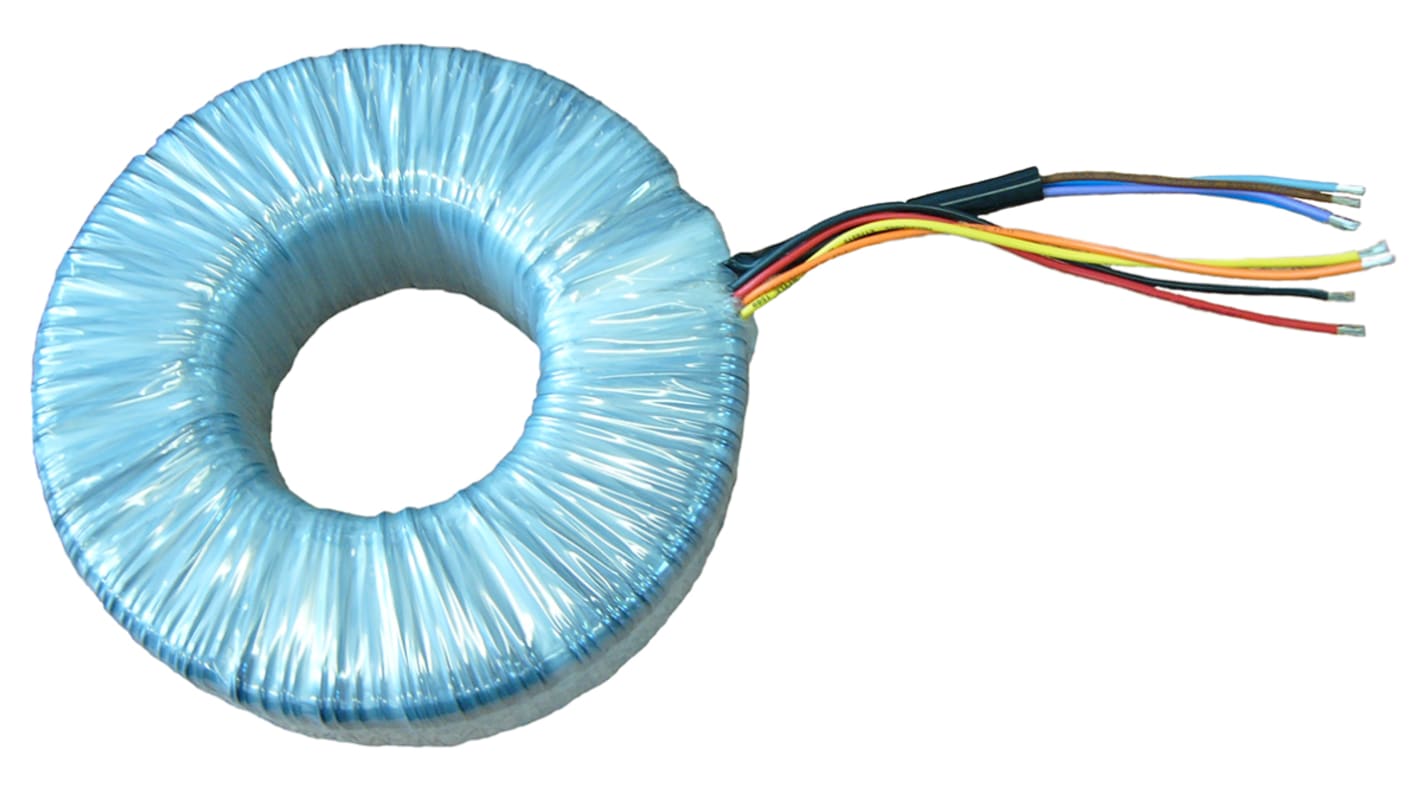

RS PRO 2 x 115V ac, 2 x 55V ac Toroidal Transformer, 500VA
- RS Stock No.:
- 117-6075
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
₩241,298.00
재고있음
- 추가로 2025년 12월 15일 부터 7 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Units | Per unit |
|---|---|
| 1 - 9 | ₩241,298.00 |
| 10 - 49 | ₩229,228.40 |
| 50 + | ₩188,658.00 |
*price indicative
- RS Stock No.:
- 117-6075
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| 브랜드 | RS PRO | |
| Primary Voltage Rating | 2 x 115V ac | |
| Secondary Voltage Rating | 2 x 55V ac | |
| Power Rating | 500VA | |
| Dimensions | 135 (Dia.) x 68mm | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Mounting Type | Surface Mount | |
| Termination Type | Termination Wire | |
| Maximum Temperature | +105°C | |
| Isolation Voltage | 4kV ac | |
| Select all | ||
|---|---|---|
브랜드 RS PRO | ||
Primary Voltage Rating 2 x 115V ac | ||
Secondary Voltage Rating 2 x 55V ac | ||
Power Rating 500VA | ||
Dimensions 135 (Dia.) x 68mm | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Mounting Type Surface Mount | ||
Termination Type Termination Wire | ||
Maximum Temperature +105°C | ||
Isolation Voltage 4kV ac | ||
- COO (Country of Origin):
- PL
Toroidal Transformers Open 80VA -3000VA
RS Pro offer these open style toroidal transformers designed for use in control circuits and general applications. These high-quality toroidal transformers have low loss and low noise toroidal core. The transformers incorporate primary windings and twin secondary windings which can be connected in series or parallel or used independently.
Features
Environmentally friendly, low energy dissipation
High efficiency, low regulation design
100% electrical and flash tested
High efficiency, low regulation design
100% electrical and flash tested
