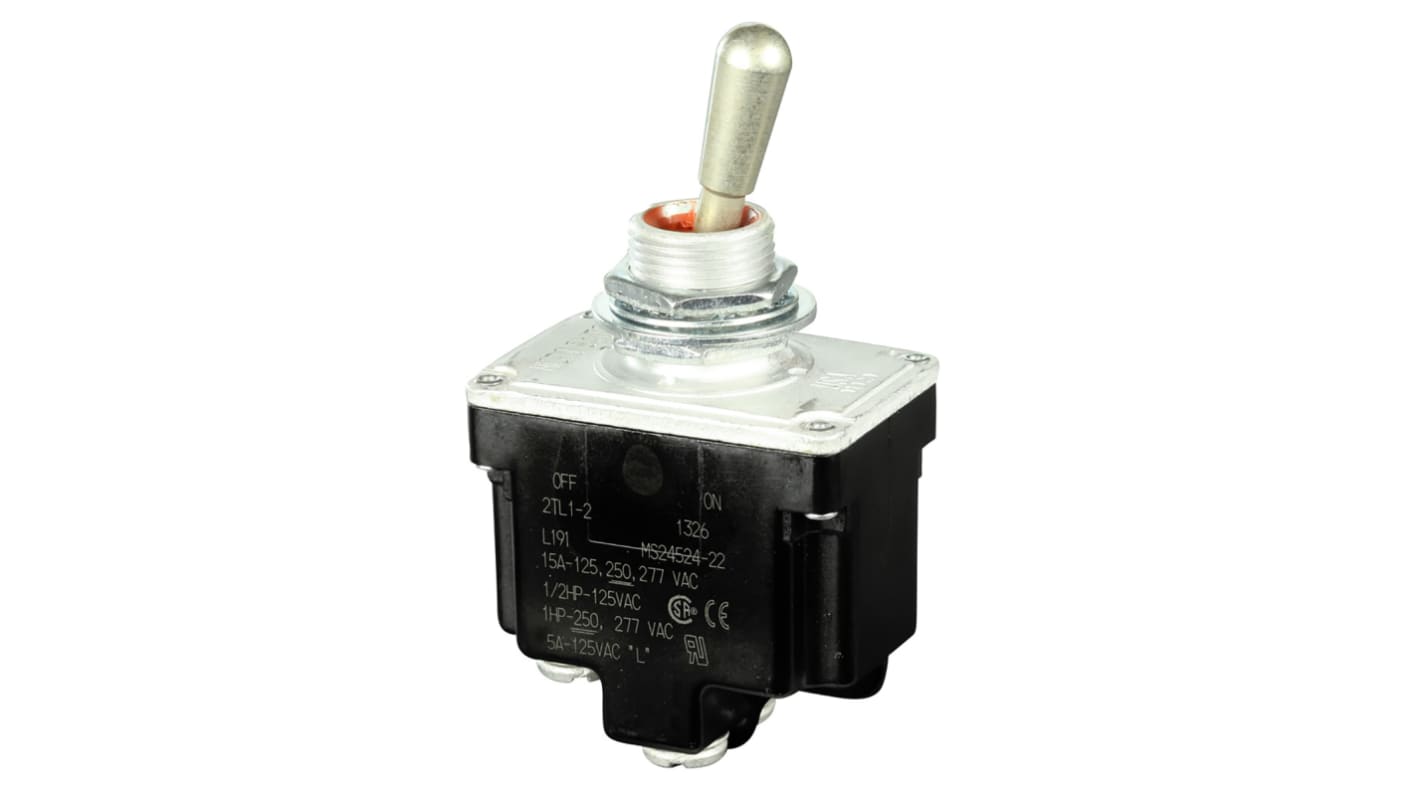

Honeywell Toggle Switch, Bushing Mount, On-Off, DPST, Screw Terminal, 277 V ac
- RS 제품 번호:
- 842-4735
- 제조사 부품 번호:
- 2TL1-2
- 제조업체:
- Honeywell
Subtotal (1 unit)*
₩89,056.50
재고있음
- 157 개 단위 배송 준비 완료
- 추가로 2026년 6월 22일 부터 40 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩89,056.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 842-4735
- 제조사 부품 번호:
- 2TL1-2
- 제조업체:
- Honeywell
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Honeywell | |
| Contact Configuration | DPST | |
| Product Type | Toggle Switch | |
| Switch Operation | On-Off | |
| Switch Contact Current | 15, 20, 6A | |
| Mount Type | Bushing | |
| Terminal Type | Screw | |
| Panel Cutout Size | 12.4 mm | |
| Actuator Length | 17mm | |
| Minimum Operating Temperature | -65°C | |
| Contact AC Voltage | 277V ac | |
| Maximum Operating Temperature | 71°C | |
| Series | TL | |
| Width | 33.5mm | |
| Standards/Approvals | UL, CSA, CE | |
| Height | 26.7mm | |
| Length | 22mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Honeywell | ||
Contact Configuration DPST | ||
Product Type Toggle Switch | ||
Switch Operation On-Off | ||
Switch Contact Current 15, 20, 6A | ||
Mount Type Bushing | ||
Terminal Type Screw | ||
Panel Cutout Size 12.4 mm | ||
Actuator Length 17mm | ||
Minimum Operating Temperature -65°C | ||
Contact AC Voltage 277V ac | ||
Maximum Operating Temperature 71°C | ||
Series TL | ||
Width 33.5mm | ||
Standards/Approvals UL, CSA, CE | ||
Height 26.7mm | ||
Length 22mm | ||
- COO (Country of Origin):
- US
Honeywell Series TL Toggle Switch, 17mm Actuator Length, 12.4mm Panel Cut-out size - 2TL1-2
This toggle switch provides manual on-off control for electrical circuits in industrial and electrical systems. It is a bushing-mounted device designed for panel installation and meets recognised international approvals. The switch supports direct switching of alternating currents and is built to operate reliably across a wide temperature span for demanding environments.
Features and Benefits:
• DPST contact arrangement enables simultaneous dual-circuit control
• Rated for 277V AC to handle high-voltage AC switching
• Screw terminals permit secure conductor connections under vibration
• Supports multiple contact currents for flexible load handling
• Operates between -65°C and 71°C for harsh-temperature applications
• Rated for 277V AC to handle high-voltage AC switching
• Screw terminals permit secure conductor connections under vibration
• Supports multiple contact currents for flexible load handling
• Operates between -65°C and 71°C for harsh-temperature applications
Applications
• Suitable for motor control panels requiring dual-circuit isolation
• Ideal for control cabinets in automation systems with high AC voltages
• Used with distribution boards requiring robust manual switching
• Can be used for machinery start/stop controls in industrial plants
• Ideal for control cabinets in automation systems with high AC voltages
• Used with distribution boards requiring robust manual switching
• Can be used for machinery start/stop controls in industrial plants
What mounting preparation is required for panel installation?
A circular panel aperture of 12.4mm is needed to accept the bushing-mounted body and secure the switch into the panel cut-out.
How does the actuator profile affect operator interaction?
The 17mm actuator length offers a defined lever travel that facilitates positive tactile switching for operators wearing gloves.
What Terminal method should be expected for field wiring?
Connections are MADE via screw-type terminals that allow clamping of stranded or solid conductors and straightforward torque application during assembly.
What contact current combinations are available for different loads?
The device supports multiple ratings, including 6A, 15A and 20A contact capacities to accommodate a range of control and power circuits.
Are there approvals indicating suitability for regulated installations?
It carries UL, CSA and CE approvals indicating conformity with the respective safety and performance standards.
Standards
UL recognized, CSA certified, CE approved
