RS PRO Toggle Switch, PCB Mount, On-Off-On, SPDT, Solder Terminal, 24 V dc, 240 V ac
- RS 제품 번호:
- 734-7255
- 제조업체:
- RS PRO

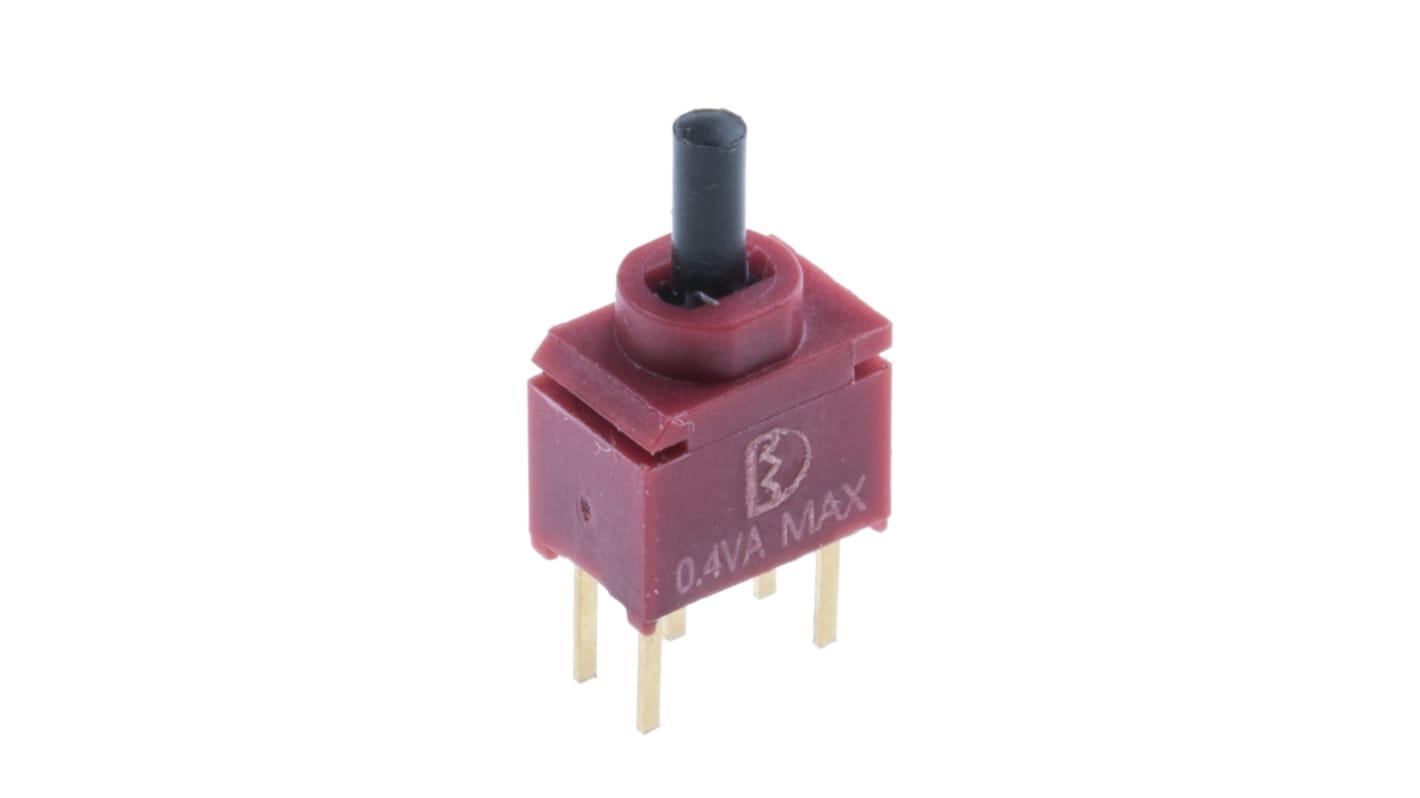

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 unit)*
₩6,573.45
재고있음
- 375 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩6,573.45 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 734-7255
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Toggle Switch | |
| Contact Configuration | SPDT | |
| Switch Operation | On-Off-On | |
| Switch Contact Current | 400mA | |
| Mount Type | PCB | |
| Terminal Type | Solder | |
| IP Rating | IP67 | |
| Illuminated | No | |
| Contact DC Voltage | 24V dc | |
| Actuator Length | 3.8mm | |
| Contact AC Voltage | 240V ac | |
| Minimum Operating Temperature | -30°C | |
| Actuator Material | Glass Filled Nylon | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | SPDT | |
| Series | 2US | |
| Length | 3.8mm | |
| Standards/Approvals | CSA, RoHS, UL, CE | |
| Mechanical Life | 40000Cycles | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Toggle Switch | ||
Contact Configuration SPDT | ||
Switch Operation On-Off-On | ||
Switch Contact Current 400mA | ||
Mount Type PCB | ||
Terminal Type Solder | ||
IP Rating IP67 | ||
Illuminated No | ||
Contact DC Voltage 24V dc | ||
Actuator Length 3.8mm | ||
Contact AC Voltage 240V ac | ||
Minimum Operating Temperature -30°C | ||
Actuator Material Glass Filled Nylon | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration SPDT | ||
Series 2US | ||
Length 3.8mm | ||
Standards/Approvals CSA, RoHS, UL, CE | ||
Mechanical Life 40000Cycles | ||
IP67 Sealed Ultra-Miniature Toggle Switches RS Series
RS series of IP67 Sealed Ultra-miniature toggle switches with a low contact resistance and Gold contact material. The RS series Ultra-miniature toggle switches have a minimum insulation resistance of 500MΩ and a minimum dielectric strength of 500Vrms at sea level.
