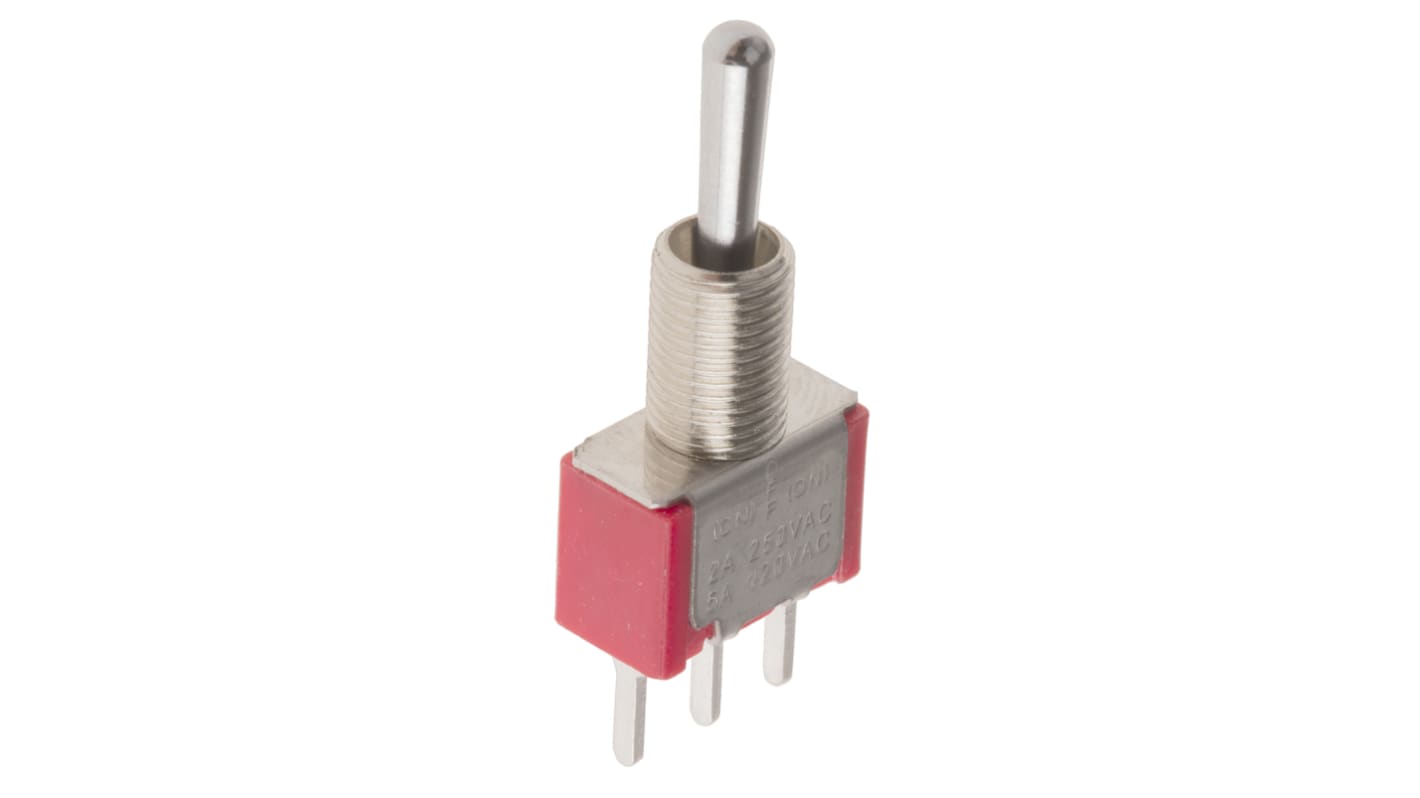

RS PRO Toggle Switch, PCB Mount, (On)-Off-(On), SPDT, Through Hole Terminal
- RS 제품 번호:
- 734-7141
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩4,568.40
재고있음
- 463 개 단위 배송 준비 완료
- 추가로 2026년 1월 02일 부터 681 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 49 | ₩4,568.40 |
| 50 - 99 | ₩4,436.80 |
| 100 - 249 | ₩4,305.20 |
| 250 - 1249 | ₩4,211.20 |
| 1250 + | ₩3,459.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 734-7141
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Contact Configuration | Single Pole Double Throw (SPDT) | |
| Switch Operation | (On)-Off-(On) | |
| Contact Current Rating | 5 A @ 250 V ac | |
| Mounting Type | PCB | |
| Terminal Type | Through Hole | |
| Panel Cut Out Diameter | 6.35mm | |
| Actuator Length | 10.41mm | |
| Actuator Material | Chromium Plated Brass | |
| Contact Material | Silver Plated Brass | |
| Panel Cut Out Size | 6.35mm | |
| Contact Resistance | 0.01Ω | |
| Minimum Operating Temperature | -30°C | |
| Standards Met | RoHS & Lead Free | |
| Maximum Operating Temperature | +85°C | |
| Operating Temperature Range | -30 → +85°C | |
| Mechanical Life | 40000Cycles | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Contact Configuration Single Pole Double Throw (SPDT) | ||
Switch Operation (On)-Off-(On) | ||
Contact Current Rating 5 A @ 250 V ac | ||
Mounting Type PCB | ||
Terminal Type Through Hole | ||
Panel Cut Out Diameter 6.35mm | ||
Actuator Length 10.41mm | ||
Actuator Material Chromium Plated Brass | ||
Contact Material Silver Plated Brass | ||
Panel Cut Out Size 6.35mm | ||
Contact Resistance 0.01Ω | ||
Minimum Operating Temperature -30°C | ||
Standards Met RoHS & Lead Free | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range -30 → +85°C | ||
Mechanical Life 40000Cycles | ||
- COO (Country of Origin):
- CN
Toggle Switches, Miniature - RS Series
RS series of PCB mount miniature toggle switches with a low contact resistance and are available with either Gold (R) or Silver (Q) contact material. The RS series miniature toggle switches have a minimum insulation resistance of 1000MΩ and a minimum dielectric strength of 1000 Vrms.
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
