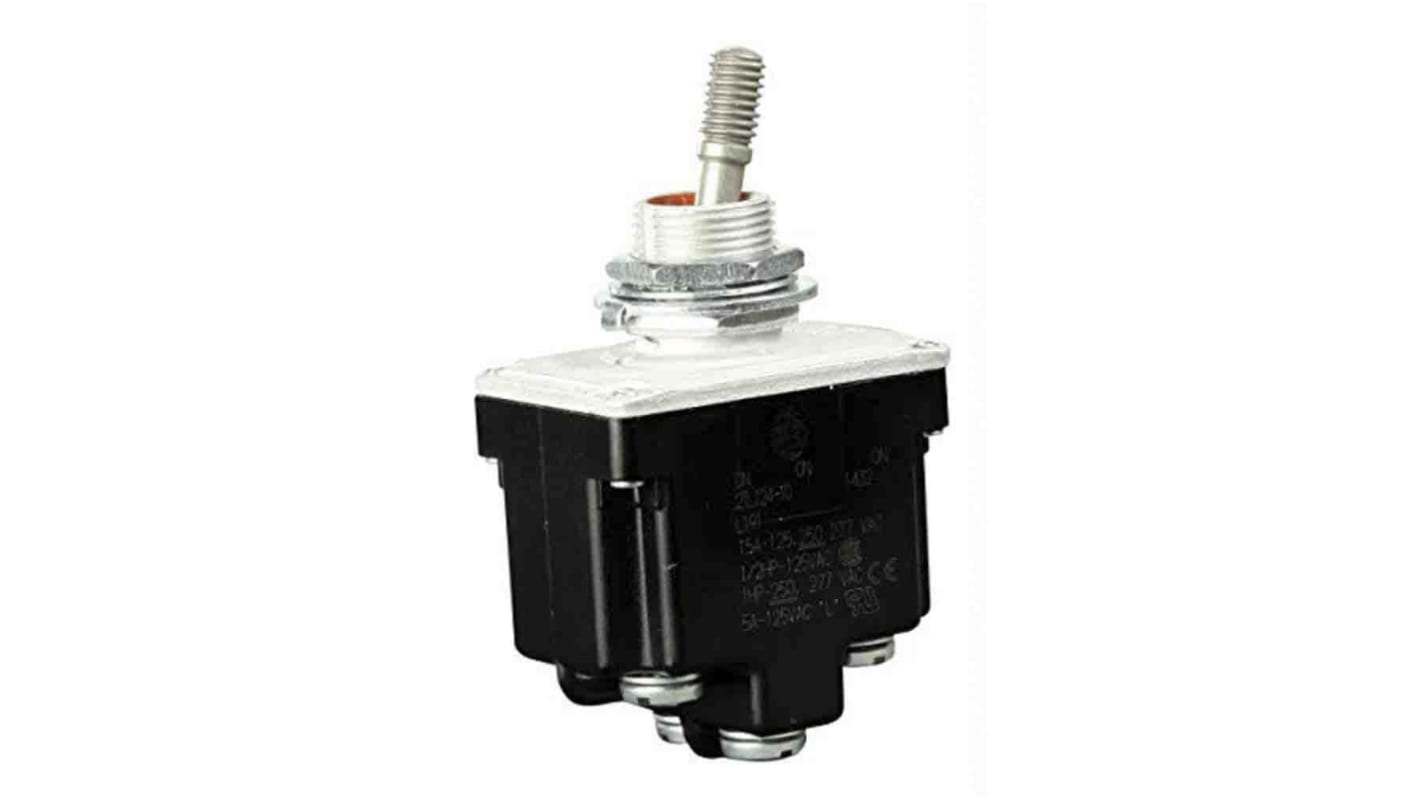

Honeywell Toggle Switch, Bushing Mount, On-On-On, DPDT, Screw Terminal, 28 V dc, 125 V ac

RS 제품 번호:: 212-5207
제조사 부품 번호:: 2TL124-10
제조업체:: Honeywell

Honeywell Toggle Switch, Bushing Mount, On-On-On, DPDT, Screw Terminal, 28 V dc, 125 V ac

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 Box of 20 units)*

₩4,247,120.00

일시적 품절

2027년 1월 15일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

Box(es)	Per Box	한팩당*
1 - 4	₩4,247,120.00	₩212,356.00
5 +	₩4,119,700.00	₩205,984.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 212-5207
제조사 부품 번호:: 2TL124-10
제조업체:: Honeywell

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Honeywell
	Product Type	Toggle Switch
	Contact Configuration	DPDT
	Switch Operation	On-On-On
	Switch Contact Current	20A
	Mount Type	Bushing
	Terminal Type	Screw
	Illuminated	No
	Actuator Length	26.67mm
	Minimum Operating Temperature	71°C
	Contact AC Voltage	125V ac
	Contact DC Voltage	28V dc
	Switch Configuration	On-On-On
	Maximum Operating Temperature	-65°C
	Standards/Approvals	CE, CSA, UL
	Series	TL
	Width	33.5mm
	Length	30mm
	Height	26.7mm

	모두 선택
	브랜드 Honeywell
	Product Type Toggle Switch
	Contact Configuration DPDT
	Switch Operation On-On-On
	Switch Contact Current 20A
	Mount Type Bushing
	Terminal Type Screw
	Illuminated No
	Actuator Length 26.67mm
	Minimum Operating Temperature 71°C
	Contact AC Voltage 125V ac
	Contact DC Voltage 28V dc
	Switch Configuration On-On-On
	Maximum Operating Temperature -65°C
	Standards/Approvals CE, CSA, UL
	Series TL
	Width 33.5mm
	Length 30mm
	Height 26.7mm

Datasheet - 2TL124-10

해당 안됨

Honeywell Series TL Toggle Switch, 20A Switch Contact Current, 125V AC Contact Ac Voltage - 2TL124-10

This toggle switch provides a compact, manually operated solution for selecting between three on positions in control panels and machinery. It is designed for panel mounting via a bushing and offers a robust contact arrangement suitable for switching circuits in industrial automation and electrical assemblies.

Features and Benefits:

• Double-pole double-throw contacts provide simultaneous circuit switching
• Rated for 20A switching to handle moderate current loads
• Accepts 125V AC and 28V DC for AC and DC applications
• Screw Terminal connections ensure secure field wiring
• Operates reliably from -65°C to 71°C for varied environments
• Actuator length 26.67mm for positive tactile actuation

Applications

• Suitable for control panels requiring multi-circuit selection
• Ideal for machinery requiring isolated dual-circuit switching
• Used with motor control and auxiliary circuit changeover
• Can be used for test rigs needing repeatable manual selection
• Suitable for retrofit electrical assemblies in industrial equipment

What mounting method is required to install it in a panel?

It is designed for bushing mounting, so a drilled panel aperture and nut securement are used for fastening.

How are external conductors attached to the device?

Connections are MADE using screw terminals that accept stranded or solid wire and are tightened for a reliable electrical contact.

What contact arrangement does it provide for circuit design?

The device uses a DPDT configuration, enabling two independent circuits to be switched between three selectable positions.

Can it be used in both AC and DC control systems?

Yes, the electrical ratings include both 125V AC and 28V DC allowing use across AC and DC control circuits.
