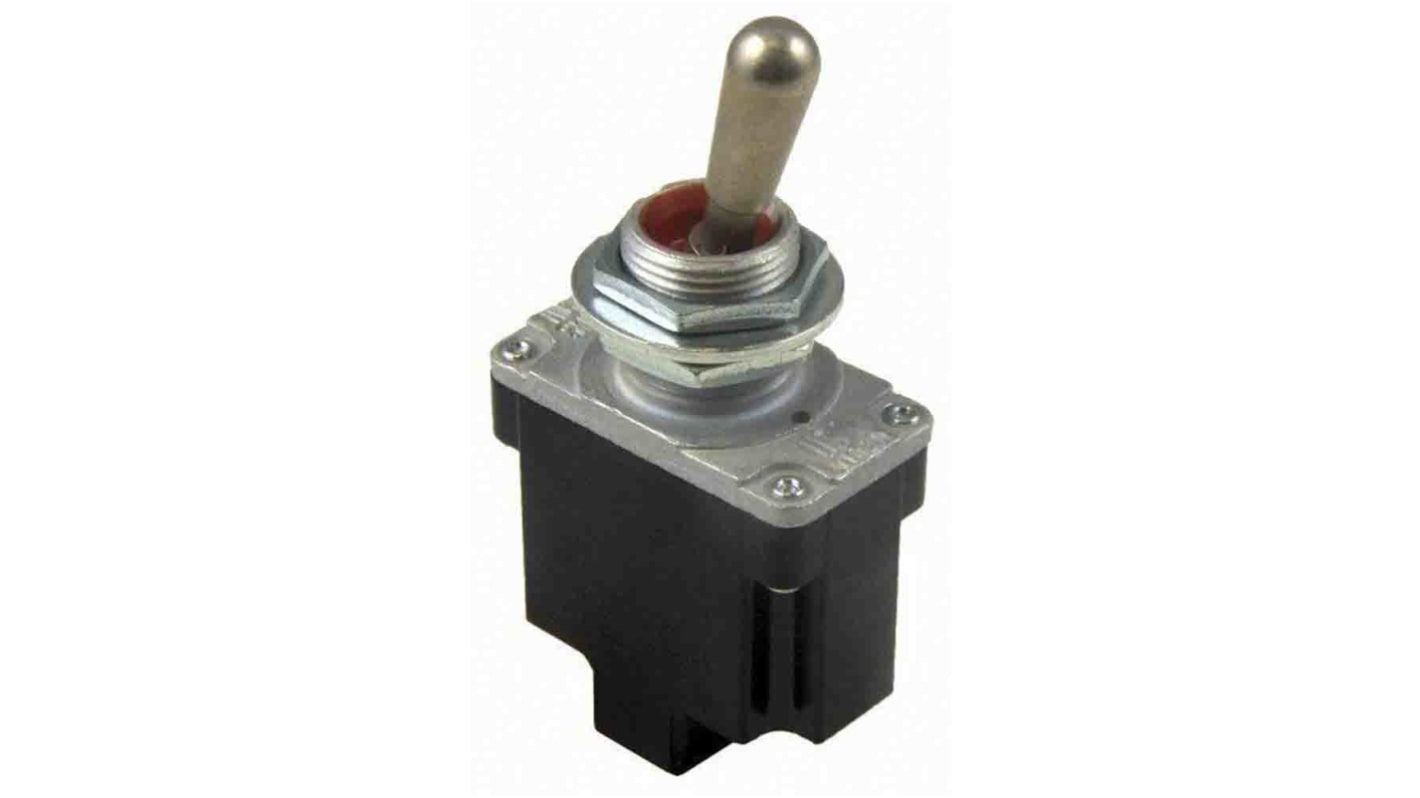

Honeywell Technologies Toggle Switch, Bushing Mount, Latching, SPDT, Screw Terminal, 28 V dc, 125 V ac

RS 제품 번호:: 212-5184
제조사 부품 번호:: 1TL1-31
제조업체:: Honeywell Technologies

Honeywell Technologies Toggle Switch, Bushing Mount, Latching, SPDT, Screw Terminal, 28 V dc, 125 V ac

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 받기

5개 더 담고 1% 할인 받기

View bulk pricing options

Subtotal (1 Box of 20 units)*

₩1,535,040.00

일시적 품절

2027년 8월 12일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

Box(es)	Per Box	한팩당*	절감
1 - 4	₩1,535,040.00	₩76,752.00	-
5 +	₩1,504,340.00	₩75,216.00	1%

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 212-5184
제조사 부품 번호:: 1TL1-31
제조업체:: Honeywell Technologies

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Honeywell Technologies
	Product Type	Toggle Switch
	Contact Configuration	SPDT
	Switch Operation	Latching
	Switch Contact Current	20A
	Mount Type	Bushing
	Terminal Type	Screw
	Illuminated	No
	Contact AC Voltage	125V ac
	Contact DC Voltage	28V dc
	Actuator Length	26.67mm
	Minimum Operating Temperature	-65°C
	Maximum Operating Temperature	71°C
	Switch Configuration	On-On
	Width	33.5mm
	Series	TL
	Length	30mm
	Height	26.7mm
	Standards/Approvals	CE, CSA, UL

	모두 선택
	브랜드 Honeywell Technologies
	Product Type Toggle Switch
	Contact Configuration SPDT
	Switch Operation Latching
	Switch Contact Current 20A
	Mount Type Bushing
	Terminal Type Screw
	Illuminated No
	Contact AC Voltage 125V ac
	Contact DC Voltage 28V dc
	Actuator Length 26.67mm
	Minimum Operating Temperature -65°C
	Maximum Operating Temperature 71°C
	Switch Configuration On-On
	Width 33.5mm
	Series TL
	Length 30mm
	Height 26.7mm
	Standards/Approvals CE, CSA, UL

해당 안됨

Honeywell Series TL Toggle Switch, 20A Current Rating, SPDT Contact Configuration - 1TL1-31

This toggle switch provides a manual on/off control for electrical circuits in industrial and equipment panels. It is a single-pole, double-throw latching switch designed for straightforward changeover tasks where a Durable mechanical selector is required. The unit is non-illuminated and intended for panel-mount installations with screw-type electrical connections.

Features and Benefits:

• SPDT contact arrangement enables simple two-circuit selection
• 20A contact rating supports high-current switching demands
• Latching operation maintains chosen state without power
• 125V AC and 28V DC compatibility supports mixed-voltage systems
• Screw terminals allow secure, serviceable conductor connections
• Approved to CE, CSA and UL standards for recognised acceptance

Applications

• Suitable for control panels in automation systems
• Ideal for switching power feeds in electrical enclosures
• Used with motor starters for manual selector functions
• Can be used for changeover in instrumentation racks
• Suitable for retrofit or custom mechanical control assemblies

What mounting arrangement does it require for installation?

It mounts via a bushing fitted through a panel aperture, allowing a front-access actuator and rear Terminal access for wiring.

What environmental temperatures can it withstand during operation?

It is rated to operate across a wide temperature span from -65°C up to 71°C to accommodate cold storage and warm machinery spaces.

How is the actuator accessed and what is its length?

The exposed actuator extends 26.67mm from the mounting plane, providing ample leverage for manual operation.

What are the physical envelope measurements that affect panel layout?

The component presents a 33.5mm width, 26.7mm height and 30mm length for planning cut-outs and clearances.

Does the device include any illumination or indicator features?

No, it is supplied without illumination so indicator provision must be external if required.
