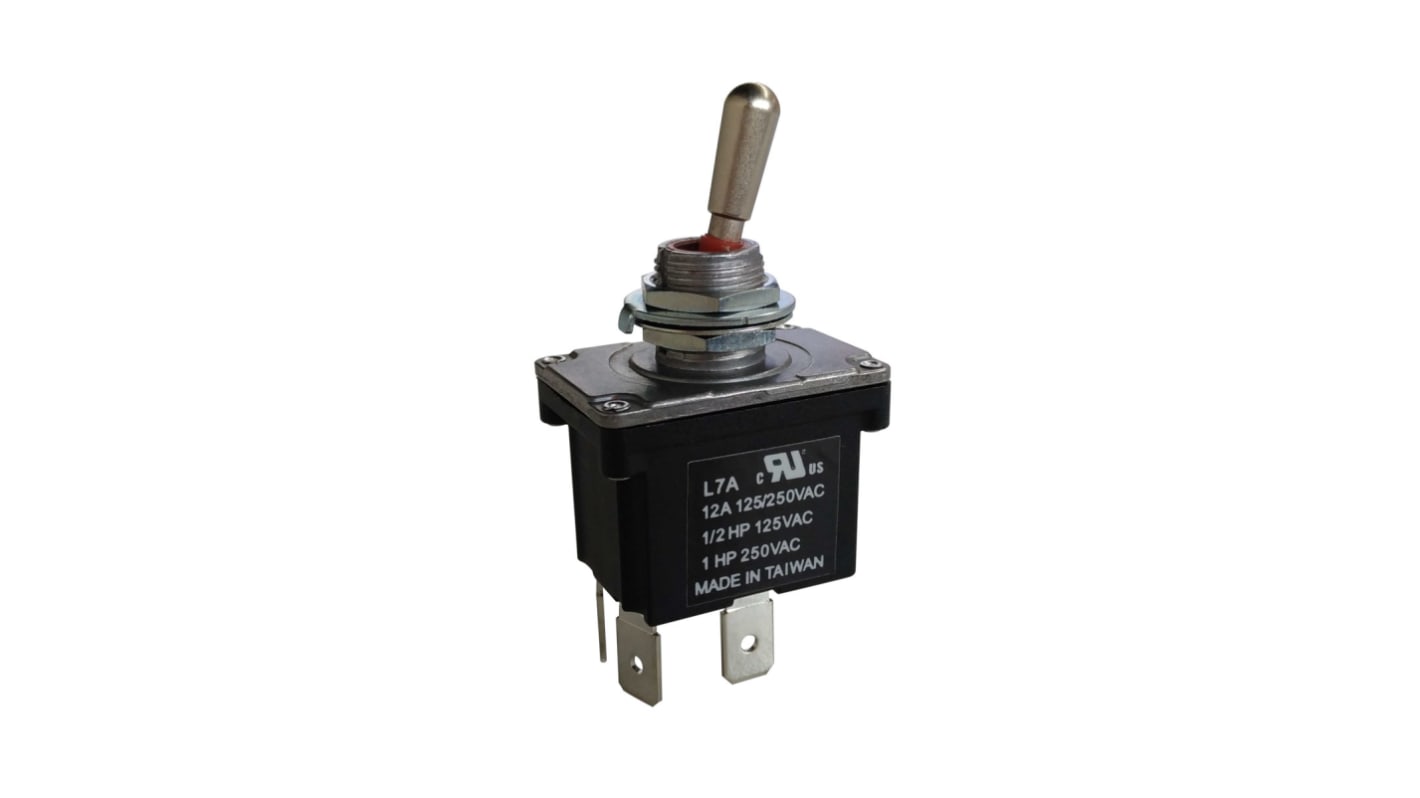

RS PRO Toggle Switch, Panel Mount, On-Off, 1 CO, Tab Terminal, 250 V ac
- RS 제품 번호:
- 206-6979
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩22,358.00
재고있음
- 108 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩22,358.00 |
| 10 - 49 | ₩21,462.00 |
| 50 - 99 | ₩20,568.00 |
| 100 - 499 | ₩20,122.00 |
| 500 + | ₩16,562.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 206-6979
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Toggle Switch | |
| Contact Configuration | 1 CO | |
| Switch Operation | On-Off | |
| Switch Contact Current | 12A | |
| Mount Type | Panel | |
| Terminal Type | Tab | |
| IP Rating | IP68 | |
| Illuminated | No | |
| Minimum Operating Temperature | -30°C | |
| Contact AC Voltage | 250V ac | |
| Actuator Length | 17mm | |
| Maximum Operating Temperature | 85°C | |
| Actuator Material | Brass | |
| Height | 64.2mm | |
| Series | L7 | |
| Standards/Approvals | RoHS, UL & cUL | |
| Width | 15.7mm | |
| Length | 28.7mm | |
| Mechanical Life | 10Cycles | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Toggle Switch | ||
Contact Configuration 1 CO | ||
Switch Operation On-Off | ||
Switch Contact Current 12A | ||
Mount Type Panel | ||
Terminal Type Tab | ||
IP Rating IP68 | ||
Illuminated No | ||
Minimum Operating Temperature -30°C | ||
Contact AC Voltage 250V ac | ||
Actuator Length 17mm | ||
Maximum Operating Temperature 85°C | ||
Actuator Material Brass | ||
Height 64.2mm | ||
Series L7 | ||
Standards/Approvals RoHS, UL & cUL | ||
Width 15.7mm | ||
Length 28.7mm | ||
Mechanical Life 10Cycles | ||
- COO (Country of Origin):
- TW
RS PRO DPST Toggle Switches
Introducing a range of DPST toggle switches from RS PRO. These high-quality toggle switches offer a double pole single throw contact configuration that controls two circuits at the same time both ON of OFF. 12A contact current ratings are available with an operating temperature of -30°C to +85°C. RS PRO DPST toggle switches are designed with screw terminals or solder tab termination for PCB applications.
Why would you need a DPST type toggle switch?
DPST toggles are commonly used to control mains electricity by isolating live and neutral connections in ac/dc applications such as control motors.
Handling & Storage
Prevent terminal oxidization on the switches by storing products in an environment that is dry and cool with relative humidity less than 90%.
Note: Prior to mounting products onto circuit board as well as for unused units, it is recommended to keep them within the sealed bag.
Material Characteristics
• Actuator: Brass
• Bushing: Aluminium die-casting alloy
• O ring: Silicone gasket
• Contact: Silver alloy
• Body: Nylon 66
• Terminals: Brass with tin plating
• Hardware: Steel with trivalent zinc plating
Features and Benefits
• Sealed electrical toggle switch
• Double pole single throw contact
• On-Off
• IP40/ IP68 front panel protection
• Brass actuator
• Operating temperature -30°C to +85°C
• UL & CUL & ENEC15 approved
Applications
Telecommunications;Aerospace;Automotive;Instrumentation control;Industrial Control Solutions;Material Handling
