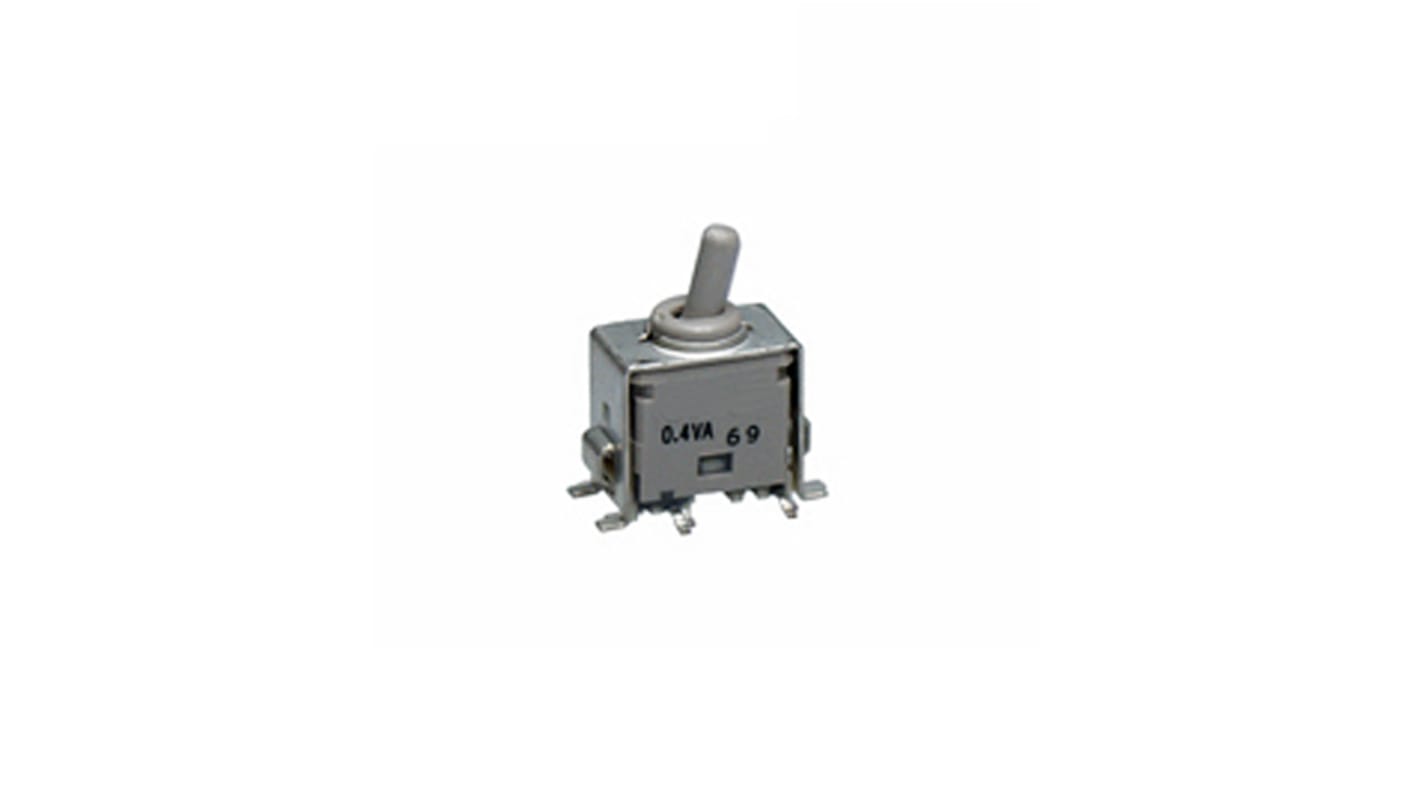

NKK Switches Toggle Switch, Surface Mount, On-On, SPDT, Gull Wing Terminal, 28 V dc, 28 V ac
- RS 제품 번호:
- 124-5903
- 제조사 부품 번호:
- G3T12AB
- 제조업체:
- NKK Switches
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩13,500.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩13,500.00 |
| 5 - 19 | ₩13,100.00 |
| 20 - 49 | ₩12,700.00 |
| 50 - 99 | ₩12,600.00 |
| 100 + | ₩12,260.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 124-5903
- 제조사 부품 번호:
- G3T12AB
- 제조업체:
- NKK Switches
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | NKK Switches | |
| Contact Configuration | SPDT | |
| Product Type | Toggle Switch | |
| Switch Operation | On-On | |
| Mount Type | Surface | |
| Terminal Type | Gull Wing | |
| Illuminated | No | |
| Contact DC Voltage | 28V dc | |
| Minimum Operating Temperature | -30°C | |
| Actuator Length | 3.8mm | |
| Contact AC Voltage | 28V ac | |
| Maximum Operating Temperature | 85°C | |
| Actuator Material | Polyphenylene Sulfide | |
| Switch Configuration | On-On | |
| Standards/Approvals | UL 94V-0 | |
| Series | G3T | |
| Mechanical Life | 50000Operations | |
| 모두 선택 | ||
|---|---|---|
브랜드 NKK Switches | ||
Contact Configuration SPDT | ||
Product Type Toggle Switch | ||
Switch Operation On-On | ||
Mount Type Surface | ||
Terminal Type Gull Wing | ||
Illuminated No | ||
Contact DC Voltage 28V dc | ||
Minimum Operating Temperature -30°C | ||
Actuator Length 3.8mm | ||
Contact AC Voltage 28V ac | ||
Maximum Operating Temperature 85°C | ||
Actuator Material Polyphenylene Sulfide | ||
Switch Configuration On-On | ||
Standards/Approvals UL 94V-0 | ||
Series G3T | ||
Mechanical Life 50000Operations | ||
- COO (Country of Origin):
- CN
NKK Switches - G3T Series Process Sealed Ultra-Miniature SMT Toggle Switches
The NKK G3T Series of process sealed ultra-miniature SMT toggles allow high density mounting. Heat resistant resin is used for the housing, base and lever allowing vapour phase and infrared convection reflow soldering. The NKK G3T Series are award winning STC contact mechanisms with benefits unavailable in conventional mechanisms: smoother positive detent actuation and increased contact stability and unparalleled logic-level reliability. The NKK G3T Series offer a combination of design features for a total seal and allows automated processing techniques including flux cleaning procedures.
Features and Benefits
Award winning STC contact mechanism
Heat resistant housing, base and lever
Rubber seals surrounding actuator and base
One piece housing and bushing
Ultra miniature size
Epoxy sealed terminals
