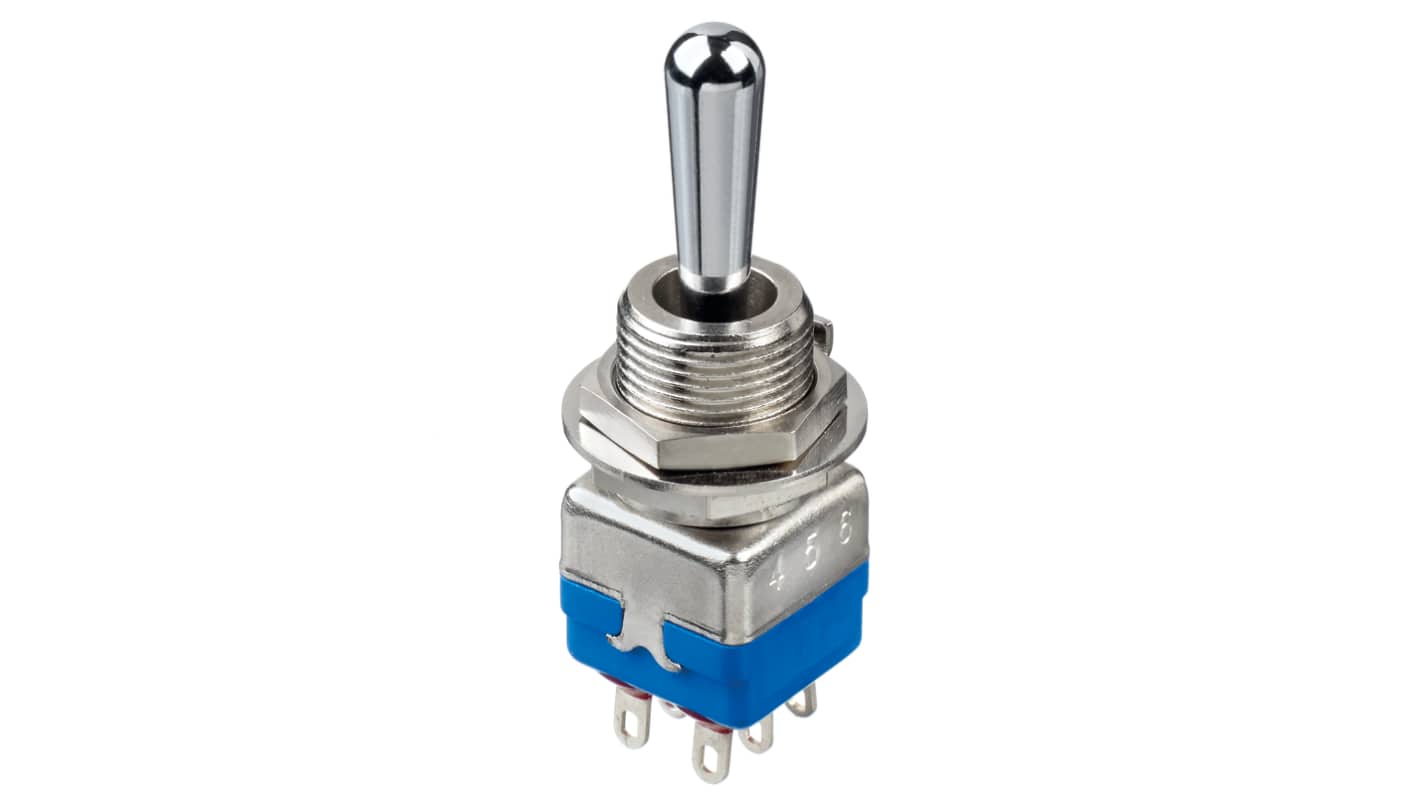

APEM Toggle Switch, Panel Mount, Momentary On-On, DPST, Solder Lug Terminal, 30 V dc, 30 V ac

모든 Toggle Switches 열람하기

Subtotal (1 unit)*

₩87,171.84

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 3월 09일 부터 7 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩87,171.84

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
562-212
제조사 부품 번호:
12144-1RAK
제조업체:
APEM
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

APEM

Contact Configuration

DPST

Product Type

Toggle Switch

Switch Operation

Momentary On-On

Switch Contact Current

4 A

Mount Type

Panel

Terminal Type

Solder Lug

Panel Cutout Size

11.9 mm

Minimum Operating Temperature

-40°C

Contact DC Voltage

30V dc

Contact AC Voltage

30V ac

Maximum Operating Temperature

85°C

Actuator Material

Chrome Plated Brass

Standards/Approvals

CECC 96201-005, CECC 96201-008

Series

12000

Mechanical Life

150000Cycles

COO (Country of Origin):
FR
The APEM Toggle Switch is designed for durability and reliable performance, with a maximum torque of 1.50 Nm (1.10 ft.lb) applied between the two nuts. It supports a standard panel thickness of 4.5 mm and operates in temperatures ranging from -40 °C to +85 °C. The case is made of diallylphthalate (DAP), while the actuator is chrome-plated brass. Both the bushing and housing are nickel-plated brass. It offers high insulation resistance of at least 1,000 MΩ at 500 VDC. With its sleek design and efficient functionality, this switch is perfect for various applications.

Several front panel sealing options

Several locking lever options

CECC approved

Robust construction
