대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩9,776.00
재고있음
- 150 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩9,776.00 |
| 25 - 99 | ₩9,475.20 |
| 100 - 249 | ₩9,193.20 |
| 250 - 1249 | ₩8,986.40 |
| 1250 + | ₩7,407.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 394-469
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Contact Configuration | Double Pole Double Throw (DPDT) | |
| Switch Operation | On-Off-On | |
| Contact Current Rating | 5 A @ 250 V ac | |
| Mounting Type | Panel Mount | |
| Terminal Type | Solder | |
| Actuator Length | 21mm | |
| Actuator Material | Brass | |
| Contact Material | Copper Alloy | |
| Contact Resistance | 0.01Ω | |
| Minimum Operating Temperature | -30°C | |
| Mechanical Life | 40000Cycles | |
| Standards Met | RoHS & Lead Free | |
| Operating Temperature Range | -30 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Contact Configuration Double Pole Double Throw (DPDT) | ||
Switch Operation On-Off-On | ||
Contact Current Rating 5 A @ 250 V ac | ||
Mounting Type Panel Mount | ||
Terminal Type Solder | ||
Actuator Length 21mm | ||
Actuator Material Brass | ||
Contact Material Copper Alloy | ||
Contact Resistance 0.01Ω | ||
Minimum Operating Temperature -30°C | ||
Mechanical Life 40000Cycles | ||
Standards Met RoHS & Lead Free | ||
Operating Temperature Range -30 → +85°C | ||
Maximum Operating Temperature +85°C | ||

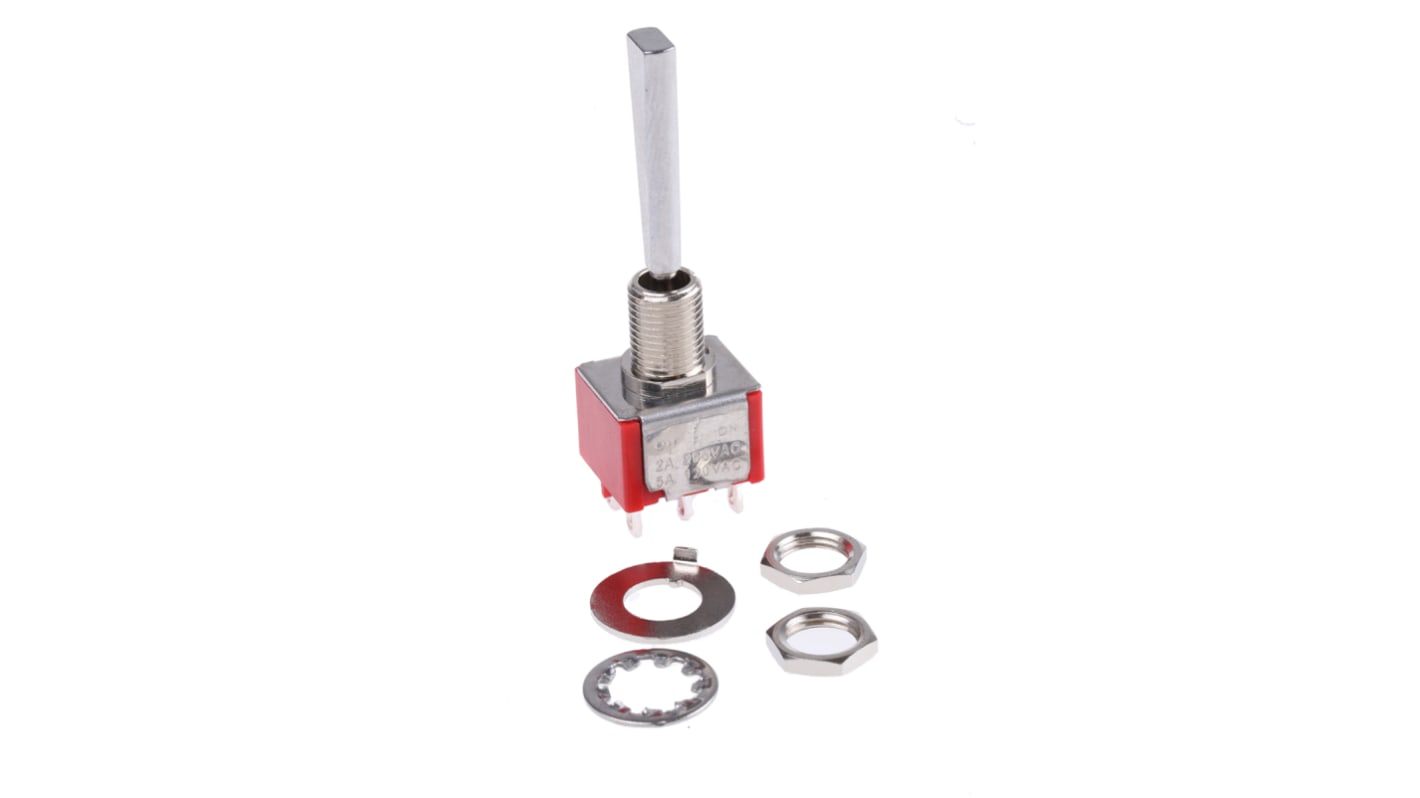

Miniature Flat Lever Toggle Switches
Epoxy sealed terminals prevent contamination during soldering
Chrome Plated Brass actuator
Diallyl Phthalate (DAP) case (UL94V-0)
Silver contacts
Chrome Plated Brass actuator
Diallyl Phthalate (DAP) case (UL94V-0)
Silver contacts
Approvals
UL E187490
Miniature Flat Lever Toggle Switches
Epoxy sealed terminals prevent contamination during soldering
Chrome Plated Brass actuator
Diallyl Phthalate (DAP) case (UL94V-0)
Silver contacts
Epoxy sealed terminals prevent contamination during soldering
Chrome Plated Brass actuator
Diallyl Phthalate (DAP) case (UL94V-0)
Silver contacts
