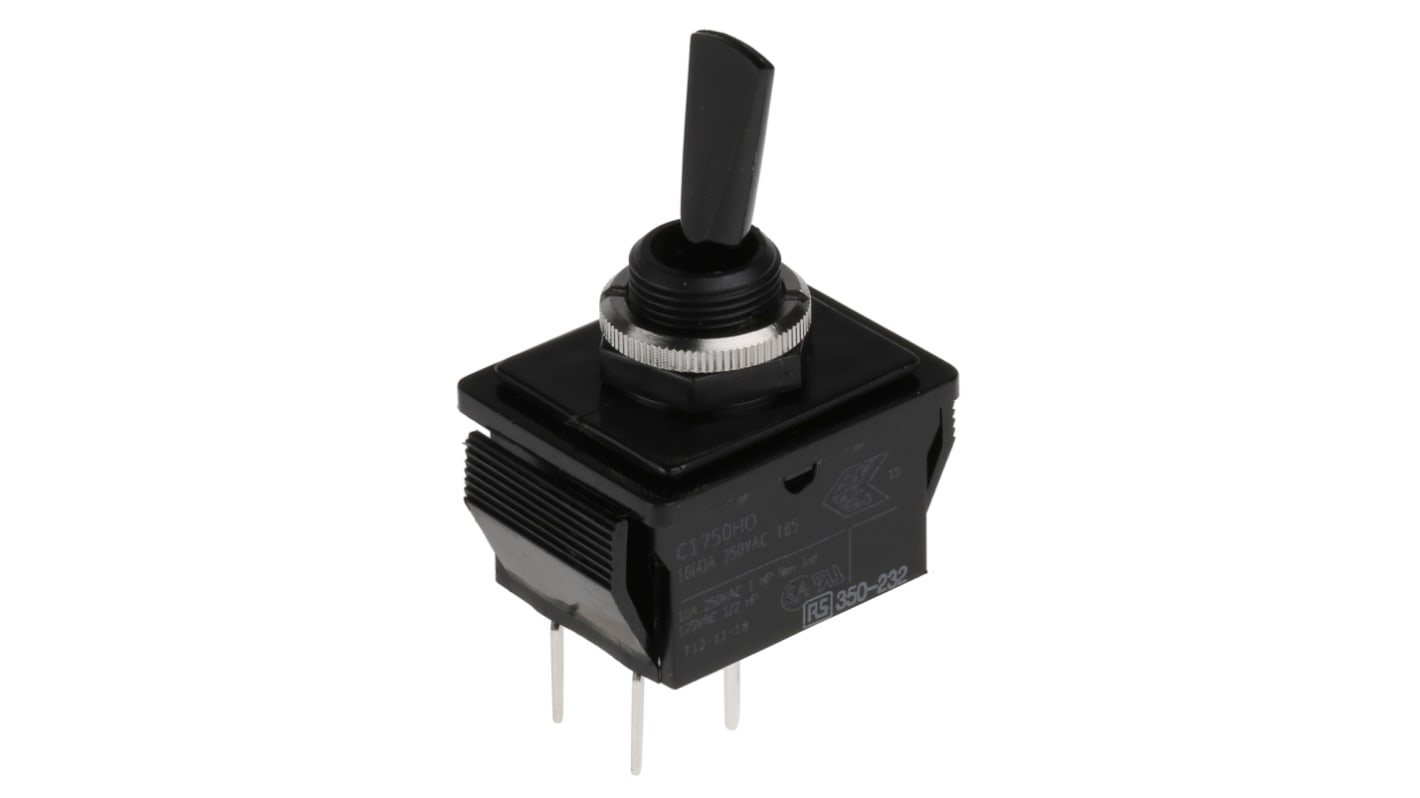

Arcolectric (Bulgin) Ltd Toggle Switch, Panel Mount, On-Off, DPST, Tab Terminal, 250 V ac
- RS 제품 번호:
- 350-232
- 제조사 부품 번호:
- C1750HOAAI
- 제조업체:
- Arcolectric (Bulgin) Ltd
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩8,365.50
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩8,365.50 |
| 25 - 49 | ₩8,131.50 |
| 50 - 99 | ₩7,897.50 |
| 100 - 249 | ₩7,819.50 |
| 250 + | ₩7,702.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 350-232
- 제조사 부품 번호:
- C1750HOAAI
- 제조업체:
- Arcolectric (Bulgin) Ltd
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Arcolectric (Bulgin) Ltd | |
| Contact Configuration | DPST | |
| Product Type | Toggle Switch | |
| Switch Operation | On-Off | |
| Switch Contact Current | 20A | |
| Mount Type | Panel | |
| Terminal Type | Tab | |
| IP Rating | IP40 | |
| Illuminated | No | |
| Panel Cutout Size | 12.7 mm | |
| Contact AC Voltage | 250V ac | |
| Actuator Length | 16.4mm | |
| Switch Configuration | 2P | |
| Maximum Operating Temperature | 85°C | |
| Actuator Material | Polycarbonate | |
| Length | 30.2mm | |
| Width | 25mm | |
| Series | 1700 & 1750 | |
| Standards/Approvals | BEAB, CSA, EN, RoHS, UL | |
| 모두 선택 | ||
|---|---|---|
브랜드 Arcolectric (Bulgin) Ltd | ||
Contact Configuration DPST | ||
Product Type Toggle Switch | ||
Switch Operation On-Off | ||
Switch Contact Current 20A | ||
Mount Type Panel | ||
Terminal Type Tab | ||
IP Rating IP40 | ||
Illuminated No | ||
Panel Cutout Size 12.7 mm | ||
Contact AC Voltage 250V ac | ||
Actuator Length 16.4mm | ||
Switch Configuration 2P | ||
Maximum Operating Temperature 85°C | ||
Actuator Material Polycarbonate | ||
Length 30.2mm | ||
Width 25mm | ||
Series 1700 & 1750 | ||
Standards/Approvals BEAB, CSA, EN, RoHS, UL | ||
- COO (Country of Origin):
- TN
Toggle Switches, Std, 16 A Insulated
Insulated toggle switches, moulded in nylon 6.6 and BEAB approved to EN61058-1
Connection by 250 ( 1/4 in. push-on receptacles, or soldering)
For use where metal switches are unsuitable
Suitable for Class II double insulated equipment
IP40
Polycarbonate actuator and Nylon 6.6 case
Note
For biased switches '(on)' refers to momentary 'on' position
Approvals
ENEC, UL recognised component, CSA certified
