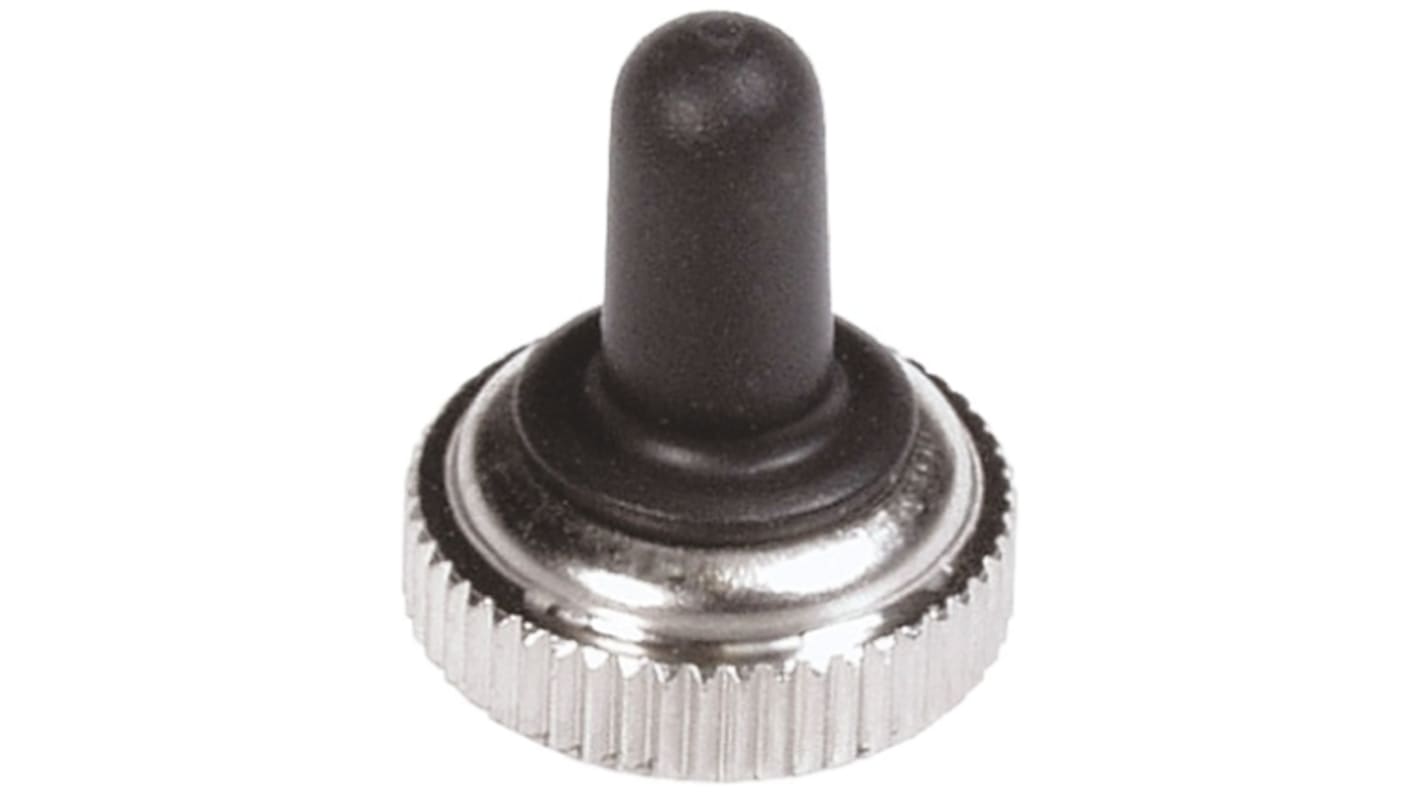

APEM Toggle Switch Boot Toggle Switch Boot

RS 제품 번호:: 321-212
제조사 부품 번호:: U1341
제조업체:: APEM

APEM Toggle Switch Boot Toggle Switch Boot

대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩8,685.60

재고있음

추가로 2025년 12월 15일 부터 405 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 14	₩8,685.60
15 - 49	₩8,065.20
50 - 99	₩7,670.40
100 +	₩7,238.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 321-212
제조사 부품 번호:: U1341
제조업체:: APEM

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	APEM
	Accessory Type	Toggle Switch Boot
	Colour	Black

	모두 선택
	브랜드 APEM
	Accessory Type Toggle Switch Boot
	Colour Black

COO (Country of Origin):: FR

APEM Toggle Switch Sealing Boots

One of the main reasons switches fail is because they have not been sealed correctly when initially installed. Using sealing boots or hoods provides extra protection and can prolong the life of the components they are used with. Sealing boots prevent the ingress of dust, sand, and moisture from penetrating the switch and causing potential damage or failure.

APEM’s range of sealing boots/hoods are simple and for easy to use. Robustly designed the one-piece construction is made from a moulded toggle cover bonded to a built-in mounting nut. Easy to fit, APEM’s toggle switch boots are used in place of the original mounting nut. This encloses the base of the switch bushing forming a tight seal against the front of the panel face.

The APEM full-toggle (standard) range of sealing boots are made from a choice of tough materials. Either high-temperature Silicone or mechanically resistant Neoprene. Both types of sealing hoods have nickel-plated brass fixing hex nuts with a plain or knurled edge.

Features and Benefits

• Moulded one-piece construction
• Neoprene or Silicone boot material
• Nickel-plated brass or back hex nut
• Plain or knurled hex nut
• Operating temperature range
- Neoprene Boots: -20˚C to + 50 ˚C
- Silicone Boots: -40 ˚C to + 85˚C
• 12 x 0.75, 6.35 x 0.75 and 6 x 0.75 bushings
• Provides a waterproof seal

Applications

Toggle switch sealing hoods or boots are used in a wide range of industrial applications where extra protection is needed. The sealing boots are used to prevent the ingress of any dust, sand or water getting into the switches moving parts. Some of the most common areas are:

• Electrical panels
• Off-road vehicles
• Industrial site equipment
• Marine and boating panels
• Manufacturing assembly lines

Sealing Boot Types

Part Number U851 = 190-0709 is a black neoprene toggle switch boot with a 12 x 0.75 bushing
Part Number U1341 = 321-212 is a black silicone toggle switch boot with an M6 x 0.75 bushing
Part Number U1331 = 321-228 is a black silicone toggle switch boot with a 1/4 -40 UNS bushing
