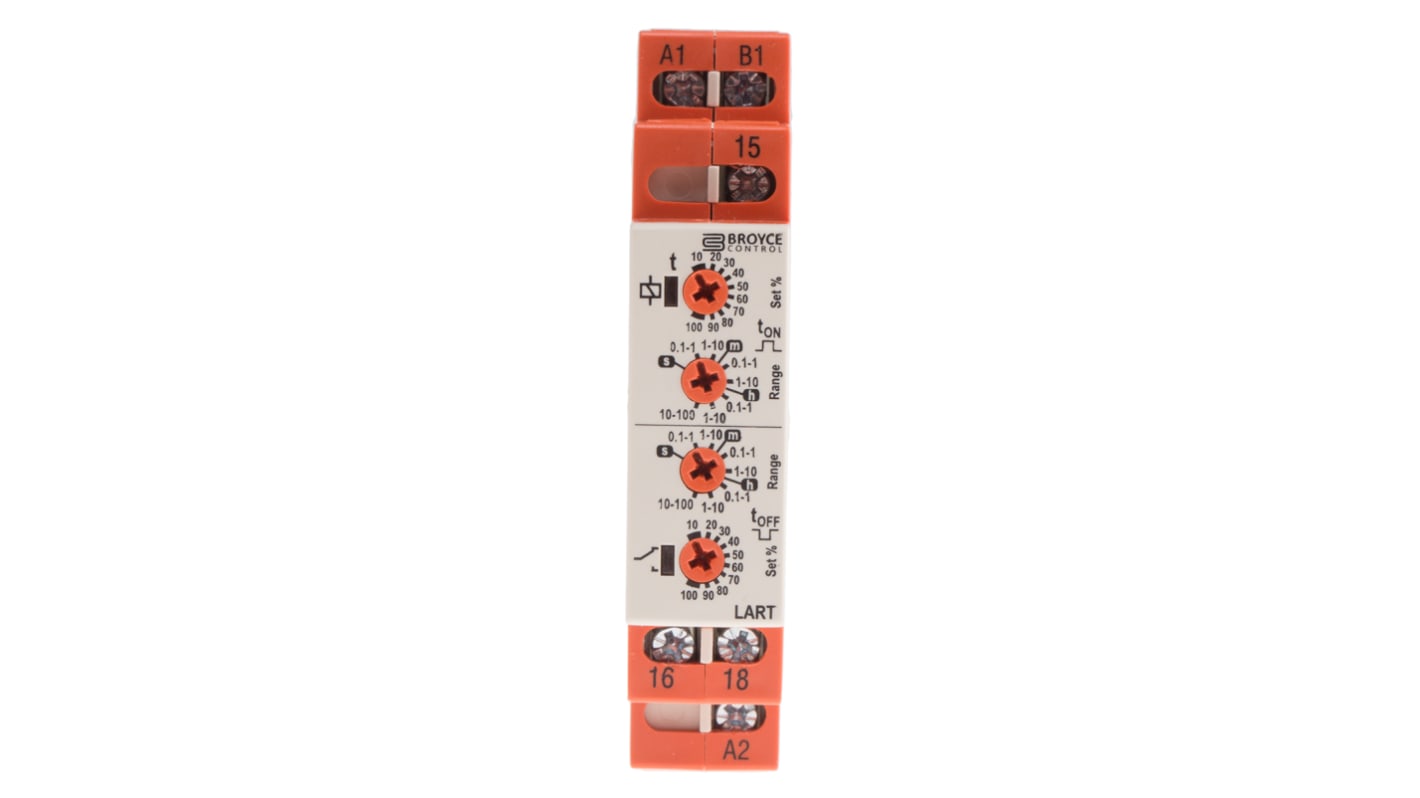

Broyce Control DIN Rail Mount Timer Relay, 24 → 230 V ac/12 → 230V dc, 1-Contact, 0.1 s → 100h,

모든 Timer Relays 열람하기

Subtotal (1 unit)*

₩45,665.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 51 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩45,665.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
828-5164
제조사 부품 번호:
LART 12-230V AC/DC
제조업체:
Broyce Control
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Broyce Control

Supply Voltage

24 → 230 V ac/12 → 230V dc

Mounting Type

DIN Rail

Mode of Operation

OFF/ON, Recycling ON/OFF

Time Range

0.1 s → 100h

Number of Contacts

1

Number of Timer Functions

Dual Function

Contact Configuration

SPDT

Time Increment

Hours, Minutes, Seconds

Maximum Current

8A

Maximum Voltage

265V ac/dc

Terminal Type

Screw

Switch Configuration

SPDT

Power Supply

External

Width

17.5mm

Minimum Voltage

24 V ac / 12V dc

Depth

66.5mm

Maximum Operating Temperature

+60°C

Length

89mm

Minimum Operating Temperature

-20°C

Time Delay

(Reset) 100ms

COO (Country of Origin):
GB

Broyce Control Multi-function Timer relay


The Broyce Control multi-function timer relay is a solid-state compact microprocessor-based equipment with high precision and a wide range of programming features. It performs different delay functions like OFF/ON, recycling ON/OFF in the range of 0.1 seconds to 100 hours. This timer has intuitive programming, which makes it easy to use and quick to configure. For selecting the time delay range, there is rotary switch selectable on the front of the unit. It is affordable. Its high performance makes it ideal for a wide range of applications in process control environments.

Features and Benefits


Separate adjustments for ON and OFF ranges
7 selectable time ranges in the range of 0.1 seconds to 100 hours like 0.1 seconds to 1 second, 0.1 minutes to 1 minute, 0.1 hour to 1 hour, 1 second to 10 seconds, 1 minute to 10 minutes and 1 hour to 10 hours
Supply voltage range is 24 VAC to 230VAC and 12VDC to 230VDC
1 SPDT configuration relay output of 8A
Fine adjustment of selected time range
Microprocessor based
Multi-voltage input
Green LED indication for supply and timing status
Red LED indication for relay status
17.5mm width
DIN rail mounting

Applications


Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control

Certifications


UL approved
CE certified
cULus certified
IEC 61812 certified
ISO 9001
IP20 (Terminal protection)
