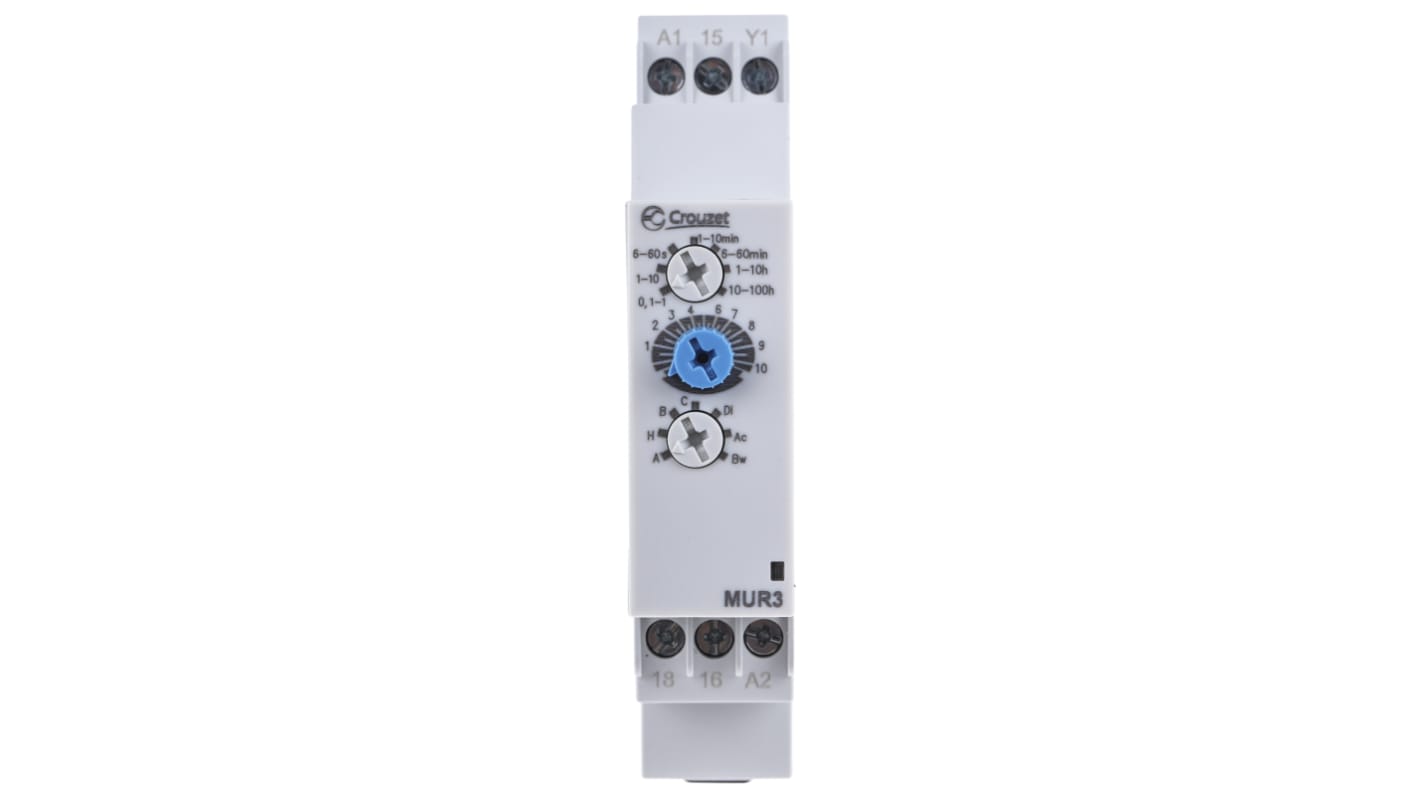

Crouzet MUR3 Series DIN Rail Timer Relay, 1-Contact, 12 to 240 V dc 12V ac, 240 V ac, 0.1 s to 100 h,
- RS 제품 번호:
- 774-0301
- Distrelec 제품 번호:
- 137-53-464
- 제조사 부품 번호:
- 88827103
- 제조업체:
- Crouzet
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩175,344.00
재고있음
- 137 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩175,344.00 |
| 25 - 49 | ₩170,956.50 |
| 50 + | ₩168,246.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 774-0301
- Distrelec 제품 번호:
- 137-53-464
- 제조사 부품 번호:
- 88827103
- 제조업체:
- Crouzet
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Crouzet | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Time Range | 0.1 s to 100 h | |
| Number of Contacts | 1 | |
| Number of Timer Functions | Multifunction | |
| Switching Voltage | 250V ac | |
| Contact Configuration | SPDT | |
| IP Rating | IP20 | |
| Supply AC Voltage | 12, 240V ac | |
| Supply DC Voltage | 12 to 240 V dc | |
| Minimum Operating Temperature | -20°C | |
| Contact Current | 8A | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | UL, IEC/EN 61000-6-4, cUL, IEC/EN 61000-6-2, CSA, IEC/EN 61812-1, GL, IEC/EN 61000-6-1, IEC/EN 61000-6-3, CE | |
| Width | 17.5mm | |
| Height | 60mm | |
| Length | 90mm | |
| Series | MUR3 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Crouzet | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Time Range 0.1 s to 100 h | ||
Number of Contacts 1 | ||
Number of Timer Functions Multifunction | ||
Switching Voltage 250V ac | ||
Contact Configuration SPDT | ||
IP Rating IP20 | ||
Supply AC Voltage 12, 240V ac | ||
Supply DC Voltage 12 to 240 V dc | ||
Minimum Operating Temperature -20°C | ||
Contact Current 8A | ||
Terminal Type Screw | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals UL, IEC/EN 61000-6-4, cUL, IEC/EN 61000-6-2, CSA, IEC/EN 61812-1, GL, IEC/EN 61000-6-1, IEC/EN 61000-6-3, CE | ||
Width 17.5mm | ||
Height 60mm | ||
Length 90mm | ||
Series MUR3 | ||
- COO (Country of Origin):
- ID
Crouzet Multi-Function Timer Relay
The Crouzet multi-function timer relay is a compact device with a solid-state output and an option of connecting an external power supply to the control input. It performs the function of providing a delay in the asymmetrical, interval, off delay, on delay, on the pulse, symmetrical flashing ON and OFF forms ranging between 0.1 second and 100 hours.
Features and Benefits
Multiple timing ranging between 1 second to 10 seconds, 10 seconds to 1 minute, 1 minute to 10 minutes, 10 minutes to 1 hour, 1 hour to 10 hours, 10 hours to 100 hours
1 changeover relay output of 8A
Multi-voltage supply options ranging between 12V to 240VAC/DC
Screw or spring terminals
SPDT contact configuration
LED status indicator (relay version)
Possibility of external load connection in parallel to the control input
3-wire PNP sensor compatible
Applications
Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
IP20 rated
IP40 rated
IP50 rated
IEC/EN 61812-1
IEC/EN 61000-6-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 61000-6-4
CE certified
UL approved
cUL certified
CSA certified
GL certified
