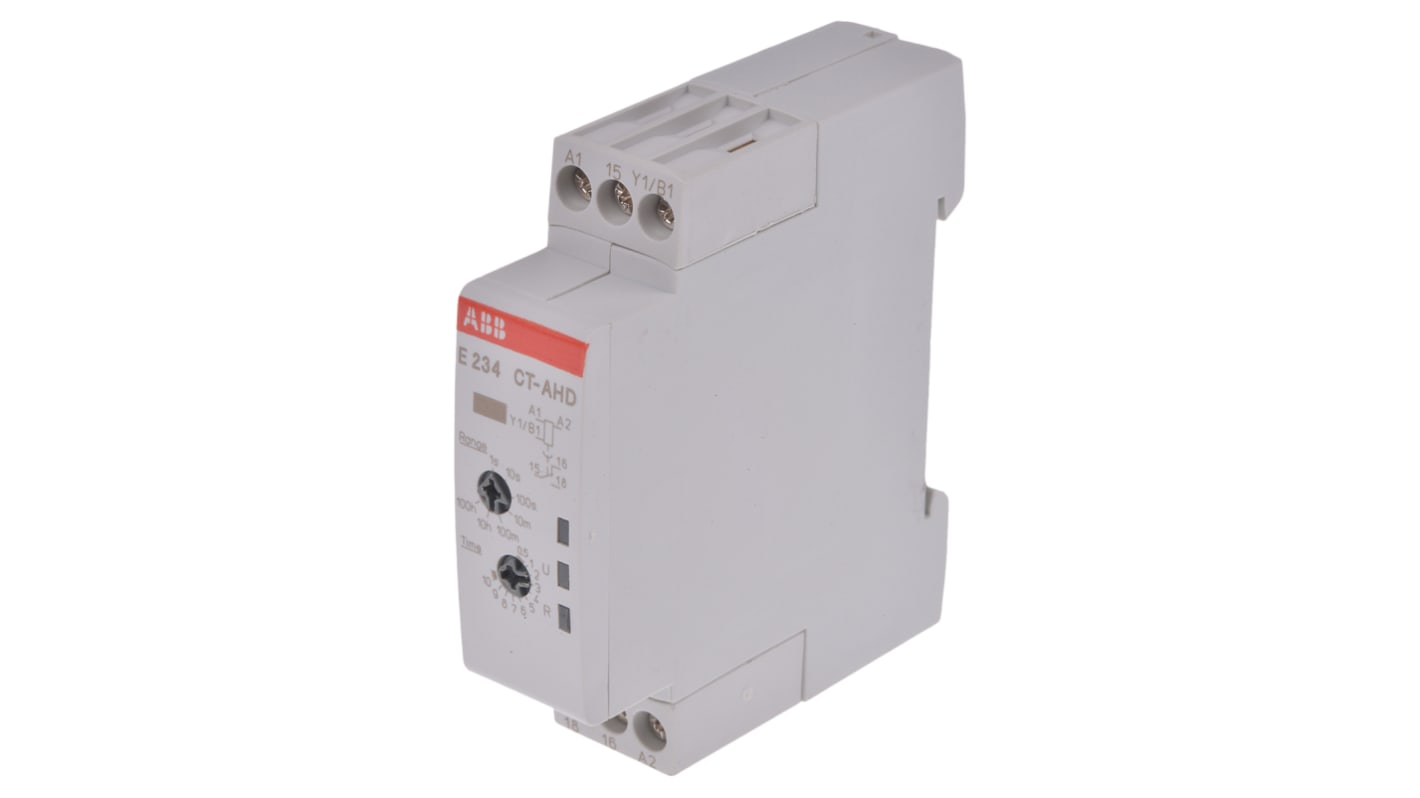

ABB DIN Rail Timer Relay, 1-Contact, 48 V dc 24 to 240 V ac, 0.05 s to 100 h, 1-Function, SPDT Switch Configuration
- RS 제품 번호:
- 489-7173
- 제조사 부품 번호:
- 1SVR500110R0000 CT-AHD.12
- 제조업체:
- ABB
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩104,283.60
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩104,283.60 |
| 25 - 49 | ₩101,670.40 |
| 50 + | ₩100,072.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 489-7173
- 제조사 부품 번호:
- 1SVR500110R0000 CT-AHD.12
- 제조업체:
- ABB
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ABB | |
| Product Type | Timer Relay | |
| Mount Type | DIN Rail | |
| Time Range | 0.05 s to 100 h | |
| Number of Contacts | 1 | |
| Number of Timer Functions | 1 | |
| Contact Configuration | SPDT | |
| IP Rating | IP20, IP50 | |
| Supply DC Voltage | 48 V dc | |
| Minimum Operating Temperature | -20°C | |
| Supply AC Voltage | 24 to 240 V ac | |
| Contact Current | 6A | |
| Terminal Type | Screw | |
| Maximum Operating Temperature | 60°C | |
| Length | 70mm | |
| Height | 58mm | |
| Width | 17.5 mm | |
| Standards/Approvals | CE | |
| 모두 선택 | ||
|---|---|---|
브랜드 ABB | ||
Product Type Timer Relay | ||
Mount Type DIN Rail | ||
Time Range 0.05 s to 100 h | ||
Number of Contacts 1 | ||
Number of Timer Functions 1 | ||
Contact Configuration SPDT | ||
IP Rating IP20, IP50 | ||
Supply DC Voltage 48 V dc | ||
Minimum Operating Temperature -20°C | ||
Supply AC Voltage 24 to 240 V ac | ||
Contact Current 6A | ||
Terminal Type Screw | ||
Maximum Operating Temperature 60°C | ||
Length 70mm | ||
Height 58mm | ||
Width 17.5 mm | ||
Standards/Approvals CE | ||
제외
ABB Single-Function Electronic Timer Relay
The ABB single-function electronic timer relay is a compact device with SPDT output. It has 7 selectable timing ranges between 0.05 seconds to 100 hours in one device. This timer is ideally suited for installation in distribution panels as well as for industrial applications where compact dimensions are required. For selecting a time delay range, there is a rotary switch selectable on the front of the unit. The fine adjustment of the time delay is made via an internal potentiometer with a direct reading scale on the front of the unit.
Features and Benefits
Rated control supply voltage is 24VDC to 48VDC and 24VAC to 240VAC
1C/O SPDT contact (250VAC/6A)
Control input with voltage-related triggering
Polarized
Capable of switching a parallel load
Light grey enclosure in RAL 7035
Width is only 17.5mm (0.689in)
2 LEDs for the indication of operational states
Applications
Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
UL 508 approved
EAC approved
CE certified
RCM certified
CCC certified
RMRS approved
