Crouzet TMR 48 A Series Timer Relay, 2-Contact, 12 to 240 V dc 12 to 240 V dc, 0.02 to 300 s, 0.02 to 300 min, 0.02 to
- RS 제품 번호:
- 467-6897
- 제조사 부품 번호:
- 88886106
- 제조업체:
- Crouzet
현재 이용 불가
이 품목의 재입고 여부는 알 수 없으며 제조업체에서 단종되고 있습니다.
- RS 제품 번호:
- 467-6897
- 제조사 부품 번호:
- 88886106
- 제조업체:
- Crouzet
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Crouzet | |
| Product Type | Timer Relay | |
| Time Range | 0.02 to 300 s, 0.02 to 300 min, 0.02 to 300 h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | 1 | |
| Switching Voltage | 250 V ac | |
| Contact Configuration | DPDT | |
| IP Rating | IP50 | |
| Contact Current | 5A | |
| Supply DC Voltage | 12 to 240 V dc | |
| Timing Adjustment | Dial | |
| Minimum Operating Temperature | -20°C | |
| Supply AC Voltage | 12 to 240 V dc | |
| Terminal Type | 8-Pin | |
| Maximum Operating Temperature | 55°C | |
| Length | 48mm | |
| Width | 48 mm | |
| Height | 80mm | |
| Standards/Approvals | CEI/EN 61812 | |
| Series | TMR 48 A | |
| 모두 선택 | ||
|---|---|---|
브랜드 Crouzet | ||
Product Type Timer Relay | ||
Time Range 0.02 to 300 s, 0.02 to 300 min, 0.02 to 300 h | ||
Number of Contacts 2 | ||
Number of Timer Functions 1 | ||
Switching Voltage 250 V ac | ||
Contact Configuration DPDT | ||
IP Rating IP50 | ||
Contact Current 5A | ||
Supply DC Voltage 12 to 240 V dc | ||
Timing Adjustment Dial | ||
Minimum Operating Temperature -20°C | ||
Supply AC Voltage 12 to 240 V dc | ||
Terminal Type 8-Pin | ||
Maximum Operating Temperature 55°C | ||
Length 48mm | ||
Width 48 mm | ||
Height 80mm | ||
Standards/Approvals CEI/EN 61812 | ||
Series TMR 48 A | ||
- COO (Country of Origin):
- ID

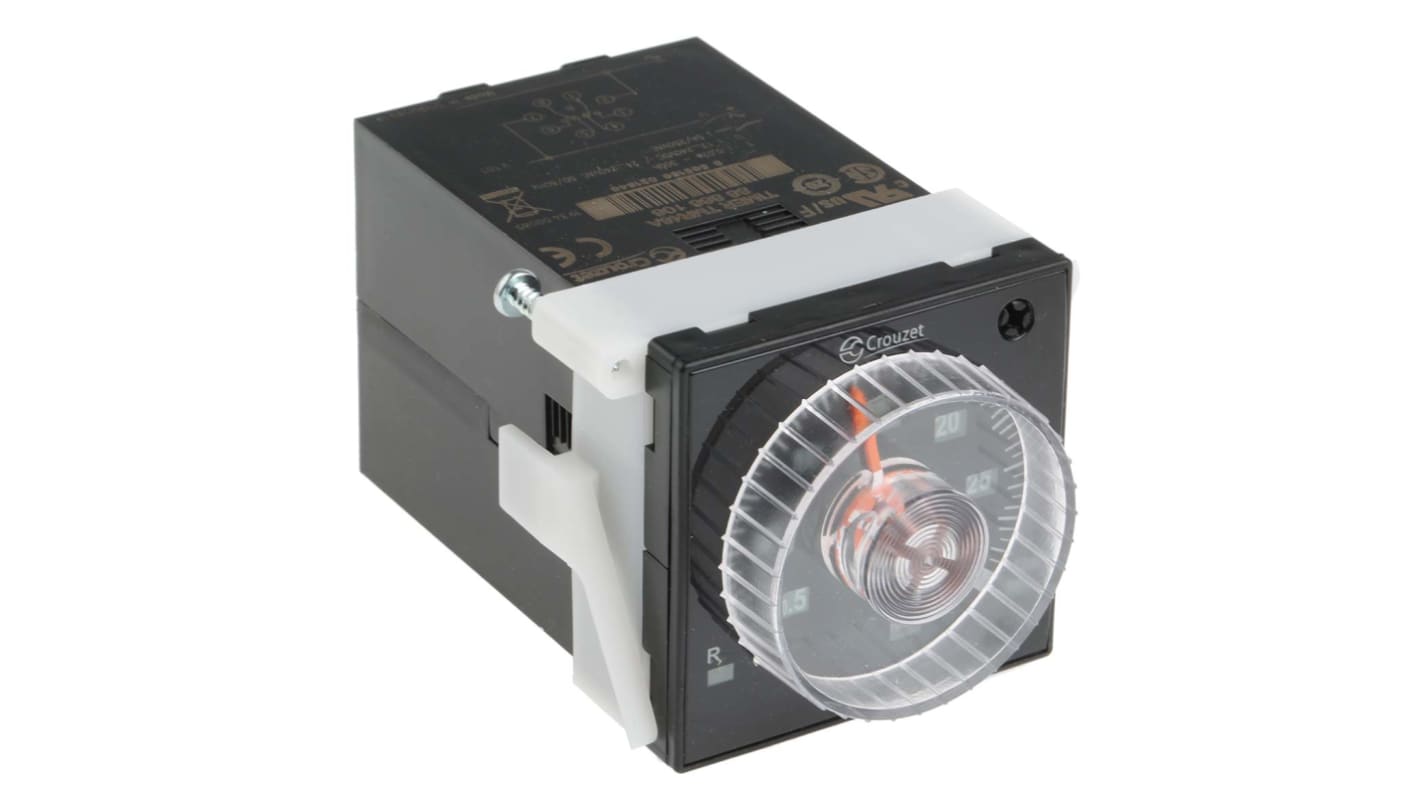

Crouzet Single-Function Timer Relay
The Crouzet single-function timer relay is a compact size device with DPDT output. It performs the function of providing a pulse on delay in the range of 0.02 seconds to 300 hours, 300 minutes and 300 seconds. It has short-circuit protection, reverse polarity protection and LED indication of the power and output.
Features and Benefits
Minimum pulse duration is typically 30ms
Multi-voltage (12VDC to 240 VDC and 24VAC to 240 VAC)
Time setting displayed on dial
2 changeover relays 5A/250VAC
Display of power and output states by 2 LEDs
Terminal type is Plug-in 8 way
Housing IS 48mm x 48 mm
Applications
Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control
Certifications
IP10 rated
IP65 rated
