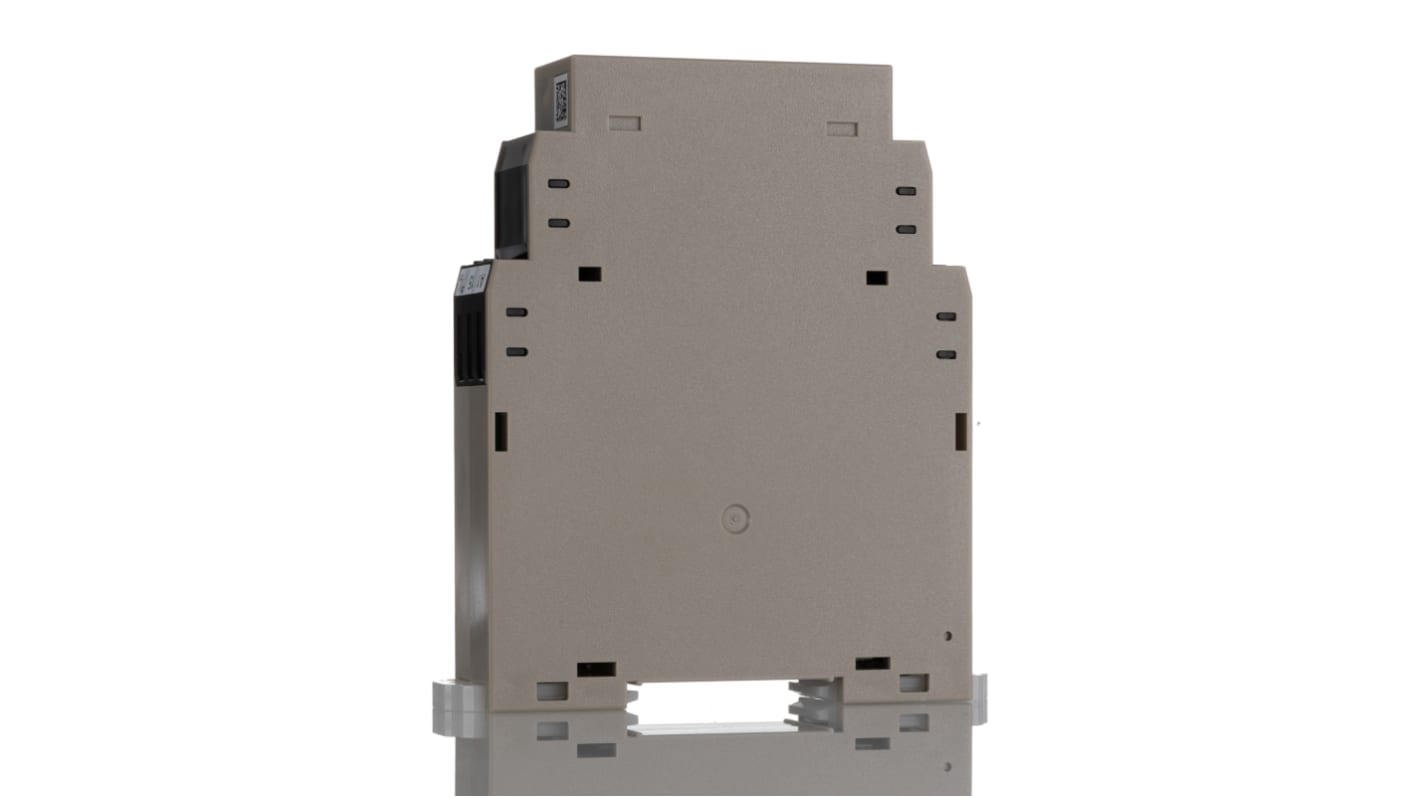

Omron Timer Relay, DPDT, DIN Rail Mount - H3DK-M2 AC/DC24-240
This timer relay from Omron, with DPDT contact configuration and a wide range of operational modes, is a versatile and efficient solution for various timing applications. Its reliability and precision make it ideal for automation, electronics, electrical, and mechanical industries.
Features & Benefits
• DPDT contact configuration for enhanced functionality
• Multiple operational modes for versatile usage
• DIN rail mounting for easy installation
• 4 contacts for increased control capabilities
• Multi-function timer functions for customised timing solutions
• Wide supply voltage range of 24-240 V AC/DC for compatibility with different systems
• Extensive time range of 0.1 to 4320000 s for precise timing control
• Multiple operational modes for versatile usage
• DIN rail mounting for easy installation
• 4 contacts for increased control capabilities
• Multi-function timer functions for customised timing solutions
• Wide supply voltage range of 24-240 V AC/DC for compatibility with different systems
• Extensive time range of 0.1 to 4320000 s for precise timing control
Applications
• Ideal for automation systems requiring precise timing control
• Suitable for electronic equipment that needs timed operations
• Can be used for electrical installations where timing is critical
• Essential for mechanical systems that require accurate time delays
• Suitable for electronic equipment that needs timed operations
• Can be used for electrical installations where timing is critical
• Essential for mechanical systems that require accurate time delays
Can it be used in automation systems?
Yes, this timer relay is suitable for automation systems that require precise timing control.
Will it work with electronic equipment?
Yes, this timer relay is designed to facilitate timed operations in electronic devices.
Is it compatible with a wide range of electrical installations?
Yes, the timer relay is ideal for electrical setups that require accurate timing functions.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Supply Voltage | 24-240V ac/dc |
Mounting Type | DIN Rail |
Mode of Operation | Flicker OFF Start, Flicker ON Start, Interval, ON Delay, One Shot, Signal OFF Delay, Signal ON/OFF Delay |
Time Range | 0.1 → 4320000s |
Number of Contacts | 4 |
Number of Timer Functions | Multi Function |
Contact Configuration | DPDT |
Time Increment | Hours, Minutes, Seconds |
Maximum Current | 5A |
Maximum Voltage | 240V ac/dc |
Terminal Type | Screw |
Switch Configuration | DPDT |
Minimum Voltage | 24V ac/dc |
Width | 100mm |
Maximum Operating Temperature | +55°C |
Length | 22.5mm |
Series | H3DK-M |
Depth | 79mm |
Minimum Operating Temperature | -20°C |
