Omron H3YN Series DIN Rail Timer Relay, 4-Contact, 125 V dc 12V ac, 0.1 s to 10 min, Multifunction-Function

RS 제품 번호:: 236-1379
제조사 부품 번호:: H3YN-4 DC12
제조업체:: Omron

Omron H3YN Series DIN Rail Timer Relay, 4-Contact, 125 V dc 12V ac, 0.1 s to 10 min, Multifunction-Function

Subtotal (1 unit)*

₩162,064.50

추가로 2026년 6월 17일 부터 1 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩162,064.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 236-1379
제조사 부품 번호:: H3YN-4 DC12
제조업체:: Omron

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Omron
	Product Type	Timer Relay
	Mount Type	DIN Rail
	Function	Offset Double Ring End
	Time Range	0.1 s to 10 min
	Number of Contacts	4
	Number of Timer Functions	Multifunction
	Switching Voltage	250V ac
	IP Rating	IP40
	Minimum Operating Temperature	-10°C
	Supply AC Voltage	12V ac
	Supply DC Voltage	125 V dc
	Contact Current	5A
	Terminal Type	Socket
	Maximum Operating Temperature	50°C
	Length	28mm
	Height	63mm
	Standards/Approvals	EN 61812-1, Lloyds, CCC, IEC 60664-1, UL 508, CE, CSA C22.2 No. 14
	Width	21.5mm
	Series	H3YN

	모두 선택
	브랜드 Omron
	Product Type Timer Relay
	Mount Type DIN Rail
	Function Offset Double Ring End
	Time Range 0.1 s to 10 min
	Number of Contacts 4
	Number of Timer Functions Multifunction
	Switching Voltage 250V ac
	IP Rating IP40
	Minimum Operating Temperature -10°C
	Supply AC Voltage 12V ac
	Supply DC Voltage 125 V dc
	Contact Current 5A
	Terminal Type Socket
	Maximum Operating Temperature 50°C
	Length 28mm
	Height 63mm
	Standards/Approvals EN 61812-1, Lloyds, CCC, IEC 60664-1, UL 508, CE, CSA C22.2 No. 14
	Width 21.5mm
	Series H3YN

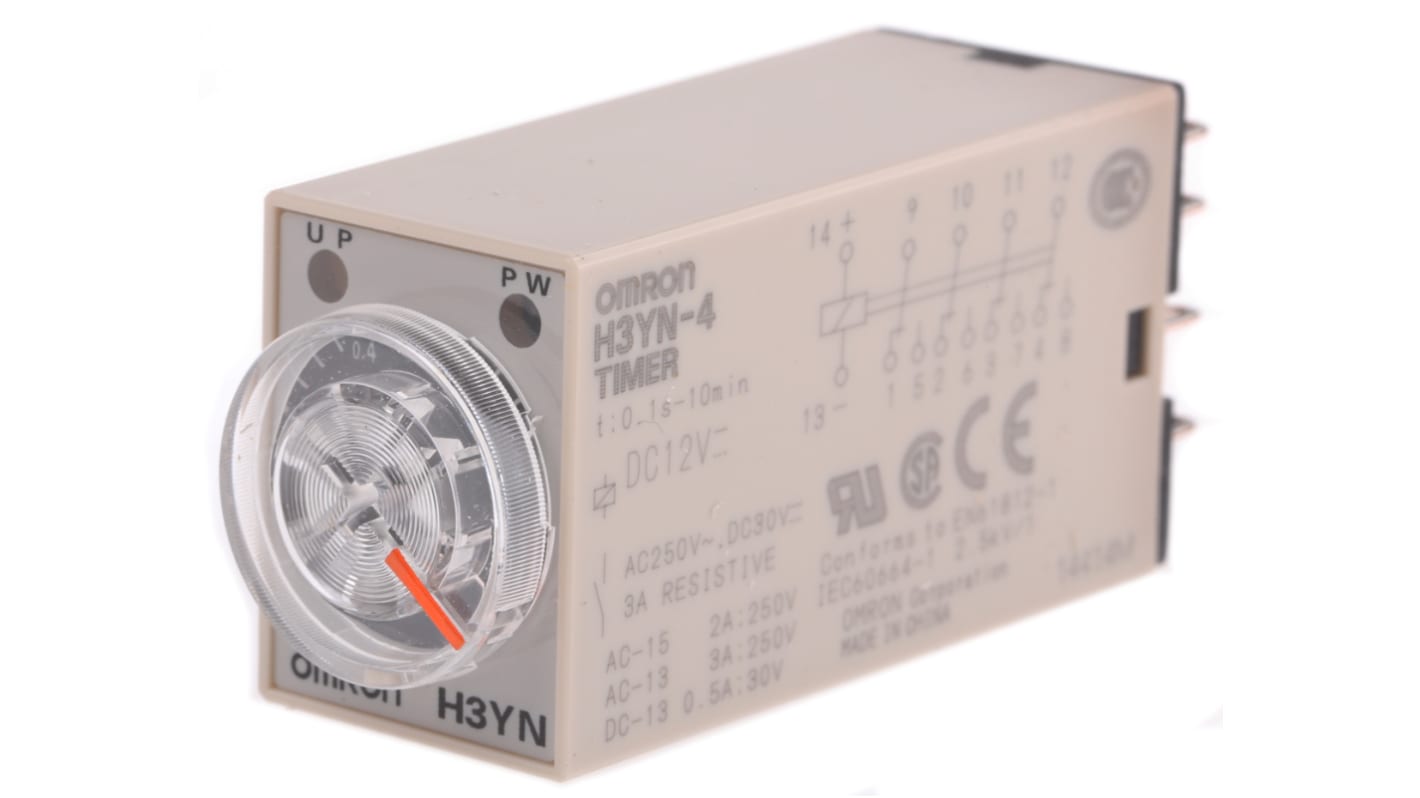

Omron H3YN Series Timer Relay, 12V DC, 4PDT - H3YN-4 DC12

This timer relay is designed for versatile automation applications, offering dynamic functionality in a compact form. It operates on a 12V DC power supply and features a DIN rail or panel mounting option. With a width of 21.5mm and a depth of 63mm, it provides a space-efficient solution for timing control.

Features & Benefits

• Supports flexible timing modes including ON delay and flicker start

• Adjustable time range from 0.1s to 10min

• Conforms to EMC standards for reliable operation

• Clear time setting knob aids in precise adjustments

• Multi-function capabilities effectively reduce inventory needs

Applications

• Ideal for timing functions in industrial automation systems

• Utilised for sequential control in conveyor systems

• Suitable for flicker in lighting circuits

• Can be used in HVAC systems for operational timing

What are the various modes of operation available with this timer relay?

The timer relay offers multiple modes including ON delay, flicker OFF start, flicker ON start, and interval, allowing customisation based on application needs.

How is the timer relay mounted in different setups?

It is designed for versatile mounting options, allowing for both DIN rail and panel mounting to suit various installation environments.

Can the timer handle different voltage ranges?

This specific model operates at a precise supply voltage of 12V DC, making it suitable for low-voltage applications in automation settings.

What is the maximum electrical load that can be managed through this device?

It can handle a maximum current of 3A at a voltage of up to 250V AC, ensuring compatibility with most electrical applications.
