RS PRO UNI Series Timer Relay, 8-Contact, 12 to 250 V dc 12 V ac, 240 V ac, 0.1 s to 10 Days, 1-Function, DPDT Switch
- RS 제품 번호:
- 178-5026
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩125,772.00
재고있음
- 26 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩125,772.00 |
| 5 + | ₩103,512.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 178-5026
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Timer Relay | |
| Function | Offset Double Ring End | |
| Time Range | 0.1 s to 10 Days | |
| Number of Contacts | 8 | |
| Switching Voltage | 250 V | |
| Number of Timer Functions | 1 | |
| Contact Configuration | DPDT | |
| Supply DC Voltage | 12 to 250 V dc | |
| Supply AC Voltage | 12 V ac, 240 V ac | |
| Minimum Operating Temperature | -20°C | |
| Contact Current | 8A | |
| Maximum Operating Temperature | 65°C | |
| Terminal Type | 8-Pin | |
| Standards/Approvals | EN61010-1, EN61000-6-4, CE, EN61000-6-2, RoHS | |
| Height | 74mm | |
| Length | 48mm | |
| Width | 24 mm | |
| Series | UNI | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Timer Relay | ||
Function Offset Double Ring End | ||
Time Range 0.1 s to 10 Days | ||
Number of Contacts 8 | ||
Switching Voltage 250 V | ||
Number of Timer Functions 1 | ||
Contact Configuration DPDT | ||
Supply DC Voltage 12 to 250 V dc | ||
Supply AC Voltage 12 V ac, 240 V ac | ||
Minimum Operating Temperature -20°C | ||
Contact Current 8A | ||
Maximum Operating Temperature 65°C | ||
Terminal Type 8-Pin | ||
Standards/Approvals EN61010-1, EN61000-6-4, CE, EN61000-6-2, RoHS | ||
Height 74mm | ||
Length 48mm | ||
Width 24 mm | ||
Series UNI | ||
- COO (Country of Origin):
- GB

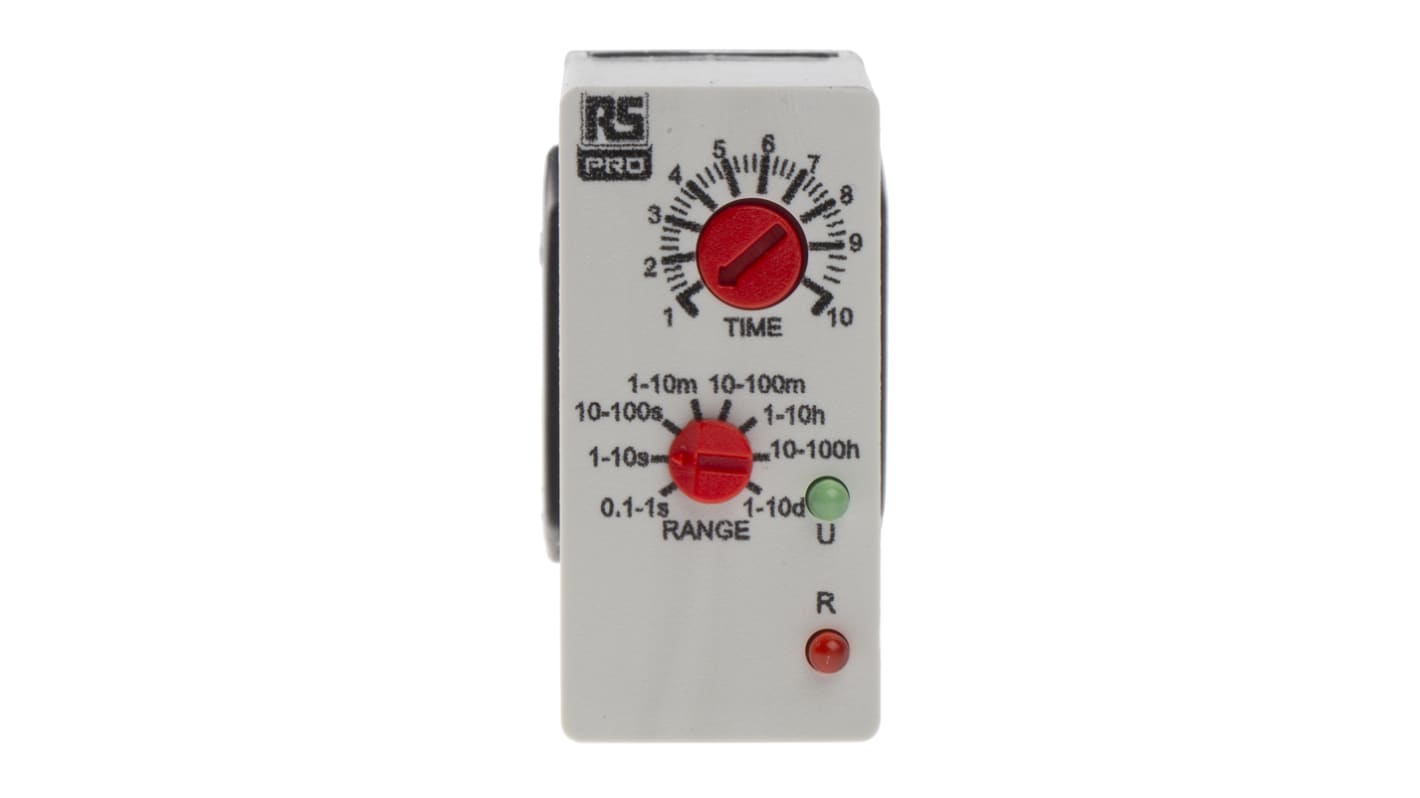

An 8 pin plug in DPCO delay on timer. A selector switch is provided to select eight different time ranges from 0.1 sec to 10 days, fine time selection on a selected range is then achieved via a percentage potentiometer. A green supply on LED is featured along with a red LED to indicate relay output status. All terminal details and the function information is clearly marked on the sides of the housing. The function is initiated by a supply on pins 2 & 7 which commences the timing, the relay contacts will then energise after the timing period. Removing the supply after the timing has been completed will cause the relay contacts to deenergise, if removal of the supply is before timing has been completed the remaining time will be cancelled.
8 pin plug in
DPCO
Multi voltage 12-250VAC/DC
Multi time range 0.1 sec to 10 days
Dedicated delay on
Dual LED indication
