ATC 417B Series DIN Rail Time Delay Relay, 1-Contact, 24 V dc 20/240 V ac, 5s to 10 min, 1-Function, DPDT Switch
- RS 제품 번호:
- 286-809
- 제조사 부품 번호:
- 3-0417B100F2X
- 제조업체:
- ATC
Subtotal (1 unit)*
₩507,600.00
일시적 품절
- 2026년 3월 20일 부터 2 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩507,600.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 286-809
- 제조사 부품 번호:
- 3-0417B100F2X
- 제조업체:
- ATC
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ATC | |
| Product Type | Time Delay Relay | |
| Mount Type | DIN Rail | |
| Time Range | 5s to 10 min | |
| Number of Contacts | 1 | |
| Number of Timer Functions | 1 | |
| Contact Configuration | DPDT | |
| Minimum Operating Temperature | -18°C | |
| Supply AC Voltage | 20/240 V ac | |
| Supply DC Voltage | 24 V dc | |
| Maximum Operating Temperature | 40°C | |
| Standards/Approvals | RoHS | |
| Series | 417B | |
| 모두 선택 | ||
|---|---|---|
브랜드 ATC | ||
Product Type Time Delay Relay | ||
Mount Type DIN Rail | ||
Time Range 5s to 10 min | ||
Number of Contacts 1 | ||
Number of Timer Functions 1 | ||
Contact Configuration DPDT | ||
Minimum Operating Temperature -18°C | ||
Supply AC Voltage 20/240 V ac | ||
Supply DC Voltage 24 V dc | ||
Maximum Operating Temperature 40°C | ||
Standards/Approvals RoHS | ||
Series 417B | ||
- COO (Country of Origin):
- US

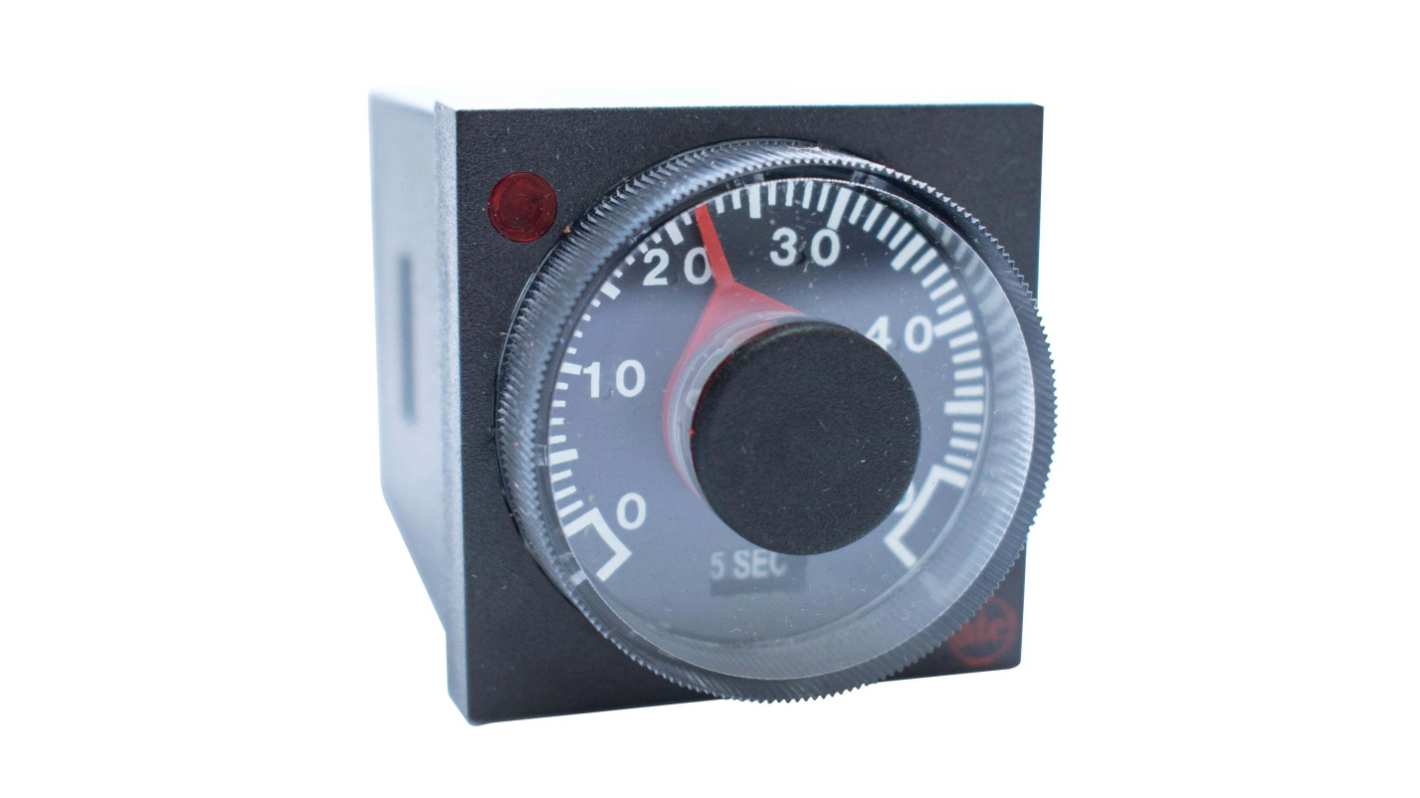

The ATC True Off-Delay Timer is designed for the most rugged industrial environments. It offers exceptional electrical noise immunity, with excellent setting and repeat accuracy. A large time-setting knob is provided for easy adjustment by operator. The high intensity LED turns on when power is applied to the
timer and turns off during timing.
Remote reset models
48mm2 DIN standard housing
Range selection is tamper proof when panel mounted
