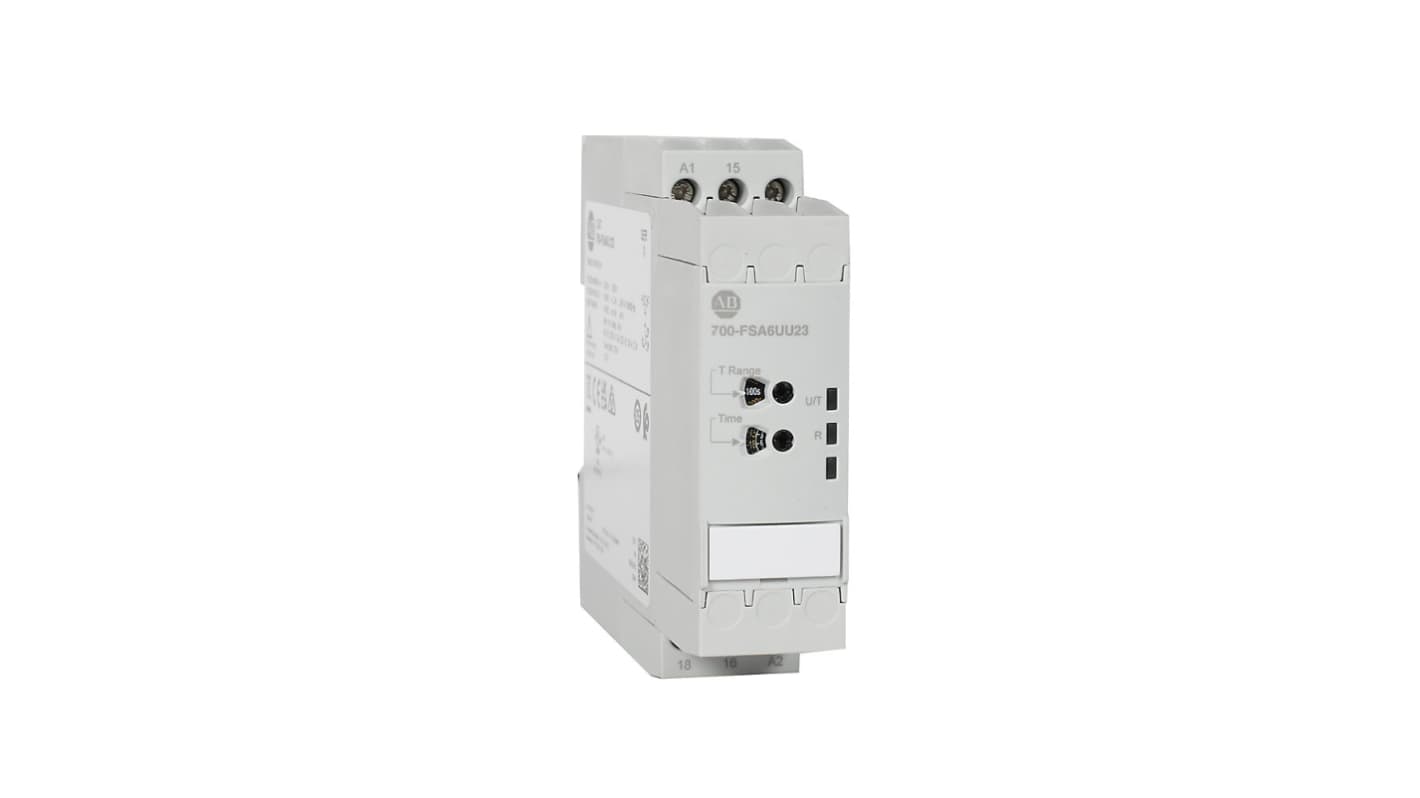

Allen Bradley 700-FSK6 Series DIN Rail Timer Relay, 2-Contact, 24 to 240 V ac 24/240 V ac, 0.1 to 10 h,
- RS 제품 번호:
- 265-790
- 제조사 부품 번호:
- 700-FSK6UU23
- 제조업체:
- Allen Bradley
Subtotal (1 unit)*
₩189,872.48
재고있음
- 2 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩189,872.48 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 265-790
- 제조사 부품 번호:
- 700-FSK6UU23
- 제조업체:
- Allen Bradley
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Allen Bradley | |
| Product Type | Timer Relay | |
| Function | Multifunction, ON Delay | |
| Mount Type | DIN Rail | |
| Time Range | 0.1 to 10 h | |
| Number of Contacts | 2 | |
| Number of Timer Functions | Multifunction | |
| Switching Voltage | 250 V | |
| Contact Configuration | SPDT | |
| IP Rating | IP40, IP20 | |
| Supply AC Voltage | 24/240 V ac | |
| Contact Current | 5A | |
| Minimum Operating Temperature | -40°C | |
| Supply DC Voltage | 24 to 240 V ac | |
| Maximum Operating Temperature | 70°C | |
| Width | 22.5 mm | |
| Length | 113.4mm | |
| Height | 85.6mm | |
| Standards/Approvals | CSA, UL508, Lloyds, EN 61810-1, cULus, CE, UR, ABS, cURus, CSA C22.2 No. 14 | |
| Series | 700-FSK6 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Allen Bradley | ||
Product Type Timer Relay | ||
Function Multifunction, ON Delay | ||
Mount Type DIN Rail | ||
Time Range 0.1 to 10 h | ||
Number of Contacts 2 | ||
Number of Timer Functions Multifunction | ||
Switching Voltage 250 V | ||
Contact Configuration SPDT | ||
IP Rating IP40, IP20 | ||
Supply AC Voltage 24/240 V ac | ||
Contact Current 5A | ||
Minimum Operating Temperature -40°C | ||
Supply DC Voltage 24 to 240 V ac | ||
Maximum Operating Temperature 70°C | ||
Width 22.5 mm | ||
Length 113.4mm | ||
Height 85.6mm | ||
Standards/Approvals CSA, UL508, Lloyds, EN 61810-1, cULus, CE, UR, ABS, cURus, CSA C22.2 No. 14 | ||
Series 700-FSK6 | ||
- COO (Country of Origin):
- DE
The Allen Bradley High-Performance Timing Relay designed for industrial applications that require precise timing and control. It features selectable timing ranges and robust construction for reliable operation in demanding environments. It has a One-Shot w/B1 operating mode. The relay offers compatibility with a wide range of input voltages, making it suitable for various applications.
DIN Rail mounted without cost of socket
22.5 mm single function
SPDT contact output
Coil surge protection
