Eaton Eaton Distribution parts Series DIN Rail Digital Timer, 1-Contact, 230 V ac 230V ac, 2-Function
- RS 제품 번호:
- 252-405
- 제조사 부품 번호:
- 196847 SRCD1COD
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩912,258.75
제조사가 재고 비축중
- 2026년 7월 01일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩912,258.75 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 252-405
- 제조사 부품 번호:
- 196847 SRCD1COD
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Product Type | Digital Timer | |
| Mount Type | DIN Rail | |
| Number of Contacts | 1 | |
| Switching Voltage | 230V ac | |
| Number of Timer Functions | 2 | |
| IP Rating | IP20 | |
| Contact Current | 16A | |
| Supply AC Voltage | 230V ac | |
| Supply DC Voltage | 230 V ac | |
| Terminal Type | Push | |
| Standards/Approvals | RoHS | |
| Height | 90.1mm | |
| Width | 35.8mm | |
| Length | 69.2mm | |
| Series | Eaton Distribution parts | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Product Type Digital Timer | ||
Mount Type DIN Rail | ||
Number of Contacts 1 | ||
Switching Voltage 230V ac | ||
Number of Timer Functions 2 | ||
IP Rating IP20 | ||
Contact Current 16A | ||
Supply AC Voltage 230V ac | ||
Supply DC Voltage 230 V ac | ||
Terminal Type Push | ||
Standards/Approvals RoHS | ||
Height 90.1mm | ||
Width 35.8mm | ||
Length 69.2mm | ||
Series Eaton Distribution parts | ||
- COO (Country of Origin):
- DE

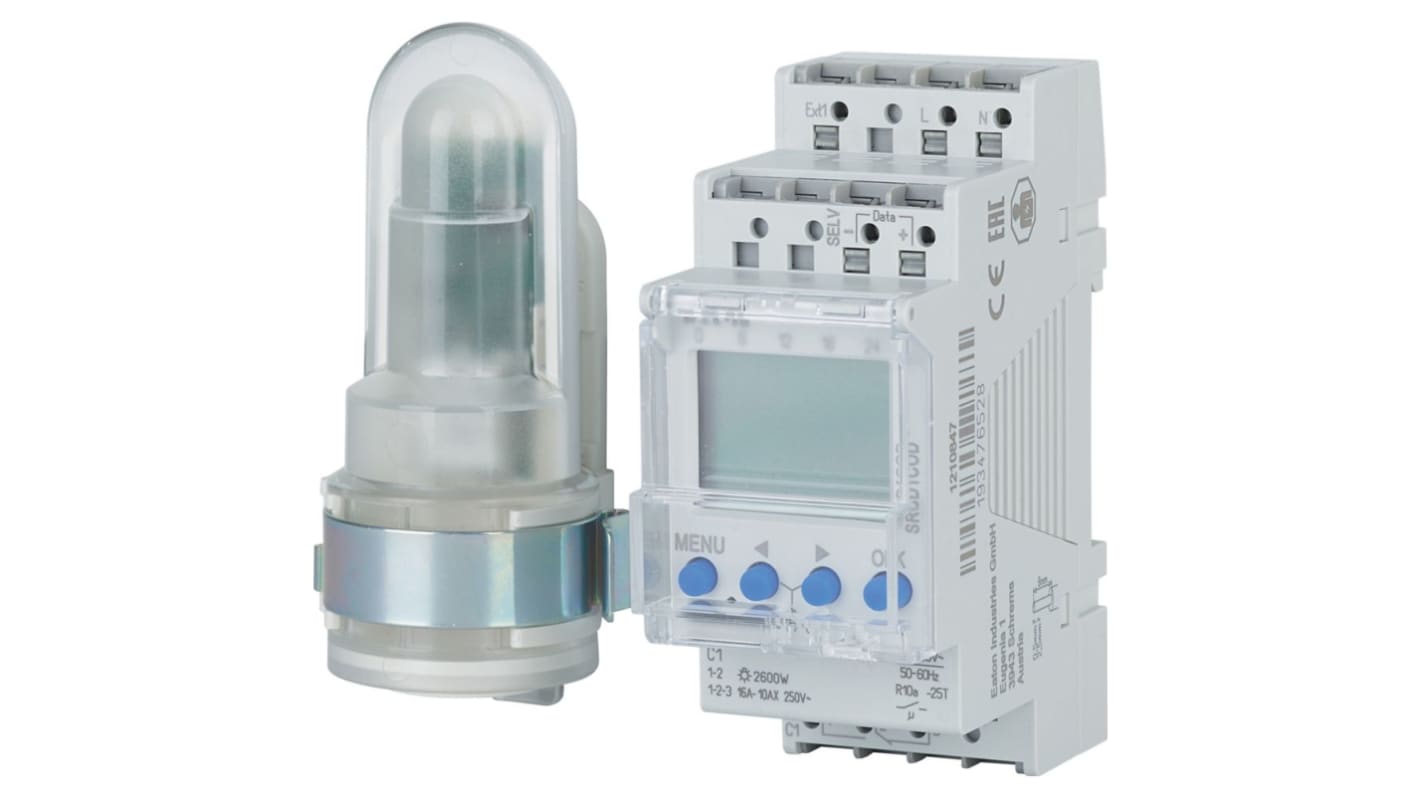

The Eaton cutting-edge digital light intensity time switch designed for enhanced control and adaptability in your lighting system. Perfectly suited for a plethora of applications, it features a sleek, surface-mounted light sensor that allows for precise daytime and night time operation, tailored to your specific lighting needs. With a versatile design that fits into a standard DIN rail, this intelligent device seamlessly integrates into existing electrical frameworks. Moreover, its programmable overnight shutoff enhances energy efficiency while ensuring optimal performance. Equipped with an impressive adjustment range and robust protection ratings, The Eaton 196847 is engineered to withstand various environments, making it a reliable choice for both residential and commercial settings.
Includes a programmable overnight shutoff feature for energy savings
Offers external light sensing capabilities for accurate ambient light detection
Incorporates a slim design that occupies only 2 modular spacings
Provides a wide adjustment range for brightness settings, ensuring flexibility
Features robust IP20 protection for the unit and IP55 for the light sensor
Compatible with various types of loads, including incandescent and fluorescent lights
Supports a maximum conductor length of 100 m for versatile installation options
Operates effectively within a frequency range of 50 to 60 Hz
