제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	STMicroelectronics
	Mounting Type	Surface Mount
	Package Type	SO
	Number of Internal Timers	2
	Pin Count	14
	Maximum Input Frequency	2.7MHz
	Minimum Operating Supply Voltage	2 V
	Maximum Operating Supply Voltage	16 V
	Minimum Operating Temperature	-40 °C
	Maximum Operating Temperature	+125 °C
	Maximum Low Level Output Current	8mA
	Maximum High Level Output Current	-2mA
	Maximum Propagation Delay Time @ Maximum CL	100 ns @ 10 pF
	Length	8.75mm
	Dimensions	8.75 x 4 x 1.65mm
	Width	4mm
	Propagation Delay Test Condition	10pF
	Height	1.65mm

	모두 선택
	브랜드 STMicroelectronics
	Mounting Type Surface Mount
	Package Type SO
	Number of Internal Timers 2
	Pin Count 14
	Maximum Input Frequency 2.7MHz
	Minimum Operating Supply Voltage 2 V
	Maximum Operating Supply Voltage 16 V
	Minimum Operating Temperature -40 °C
	Maximum Operating Temperature +125 °C
	Maximum Low Level Output Current 8mA
	Maximum High Level Output Current -2mA
	Maximum Propagation Delay Time @ Maximum CL 100 ns @ 10 pF
	Length 8.75mm
	Dimensions 8.75 x 4 x 1.65mm
	Width 4mm
	Propagation Delay Test Condition 10pF
	Height 1.65mm

Datasheet TS556IDTTR

The TS556 is a dual CMOS timer which offers a very low consumption: (Icc(TYP)TS556 = 220 μA at VCC = 5 V versus Icc(TYP) NE556(a)= 6 mA), and high frequency:(f(max.)TS556 = 2.7 MHz versus f(max.)NE556(a)= 0.1 MHz). In both monostable and astable modes, timing remains very accurate. The TS556 provides reduced supply current spikes during output transitions, which enables the use of lower decoupling capacitors compared to those required by bipolar NE556(a). Due to the high input impedance (1012 Ω), timing capacitors can also be minimized.

Very low power consumption:
220 μA typ at VCC= 5 V
180 μA typ at VCC= 3 V
High maximum astable frequency 2.7 MHz
Pin-to-pin and functionally compatible with bipolar NE5561
Wide voltage range: 2 V to 16 V
Supply current spikes reduced during output transitions
High input impedance: 1012Ω
Output compatible with TTL, CMOS and logic MOS

수량	한팩당	릴당*
2500 - 2500	₩1,212.60	₩3,030,560.00
5000 - 22500	₩1,188.16	₩2,969,930.00
25000 +	₩1,163.72	₩2,910,710.00

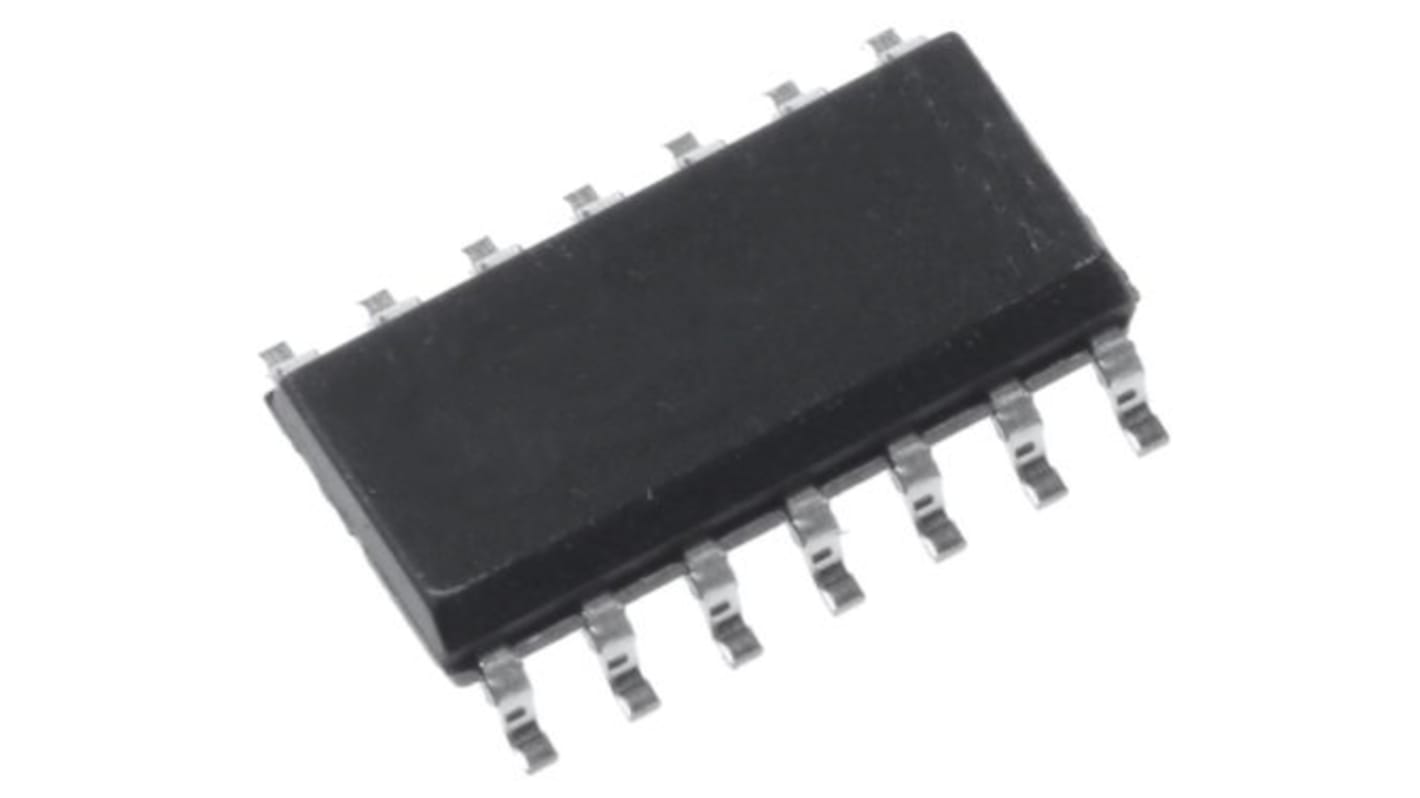

STMicroelectronics TS556IDTTR, CMOS Timer, Dual 2.7MHz, 14-Pin SO

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
