RS PRO Threading Tap, M3 Thread, Metric Standard, Hand Tap
- RS 제품 번호:
- 669-9372
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩10,001.60
재고있음
- 1,003 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩10,001.60 |
| 5 + | ₩8,234.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 669-9372
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Sub Type | Hexagon Drive Tap | |
| Product Type | Threading Tap | |
| Thread Size | M3 | |
| Thread Standard | Metric | |
| Thread Direction | Right Hand | |
| Number of Pieces | 1 | |
| Overall Length | 32.5mm | |
| Shank Length | 15mm | |
| Material | HSS | |
| Hand/Machine Tap | Hand Tap | |
| Shank Diameter | 6.35mm | |
| Standards/Approvals | ISO | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Sub Type Hexagon Drive Tap | ||
Product Type Threading Tap | ||
Thread Size M3 | ||
Thread Standard Metric | ||
Thread Direction Right Hand | ||
Number of Pieces 1 | ||
Overall Length 32.5mm | ||
Shank Length 15mm | ||
Material HSS | ||
Hand/Machine Tap Hand Tap | ||
Shank Diameter 6.35mm | ||
Standards/Approvals ISO | ||
제외

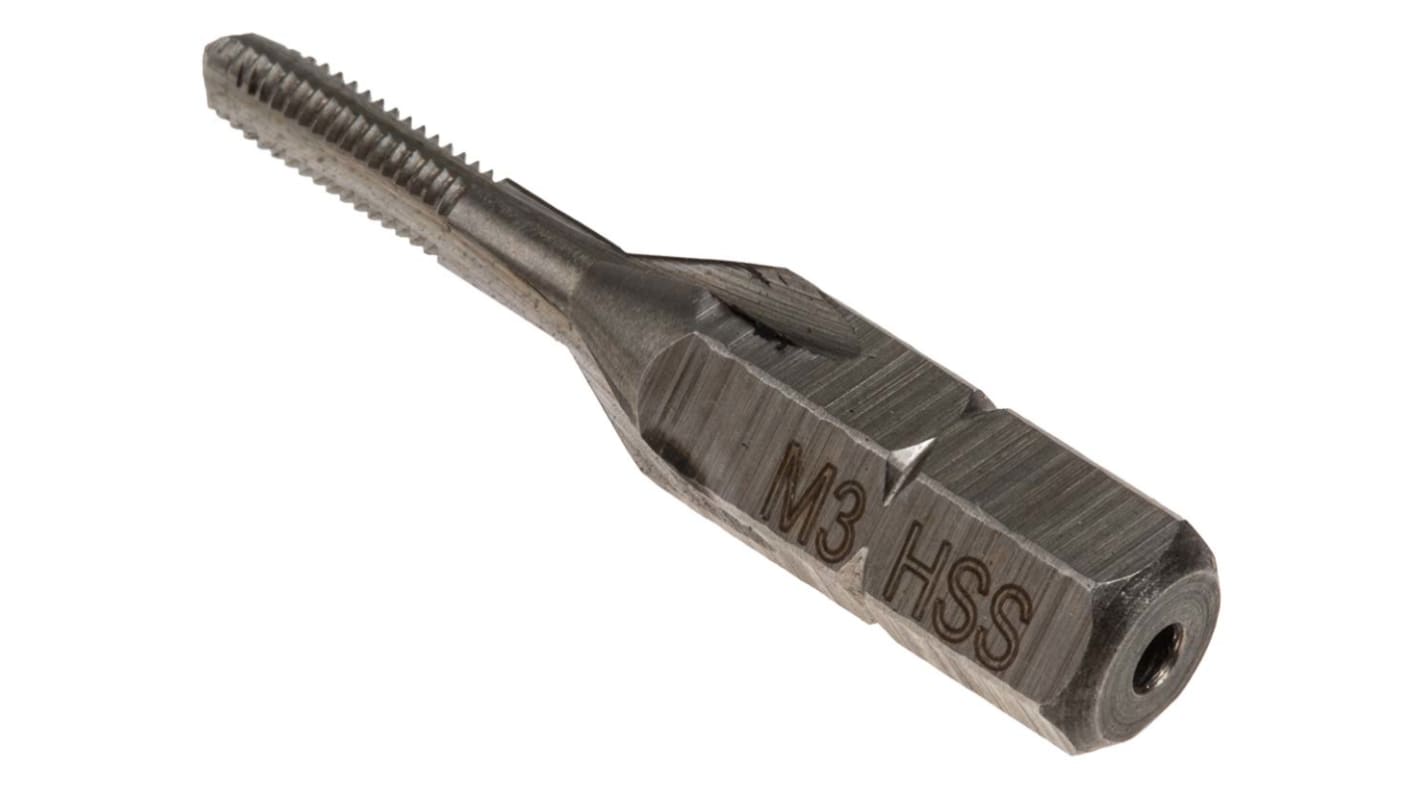

RS PRO HSS M3 Hexagon Drive Tap Threading Tap, 32.5 mm Length
You can use this RS PRO hexagon (hex) drive thread tap for both hand and power tool tapping. It creates the female portion of a mating pair to hold a male fastener such as a threaded bolt. This tap cuts the threads of the M3 size, which is 3 mm with a thread pitch of 0.5 mm.
It has a hex shank so you can easily use it with hex tools and drills. The product is made from high-speed steel (HSS), which guarantees it will resist wear and high temperatures.
The tap is handled and packed in compliance with the administrative and technical requirements of the ANSI/ESD S20.20:2014 and BS (British Standard) EN 61340-5-1:2007 electrostatic control standards. This means that you can be sure the risk of electrostatic discharge (ESD) is minimised.
Features and Benefits
• HSS (high speed steel) material
• One piece
• Overall length of 32.5 mm
• Pitch of 0.5 mm
• Threading tap set type
• Thread size of M3
• Metric thread standard
• Hexagon drive tap type
