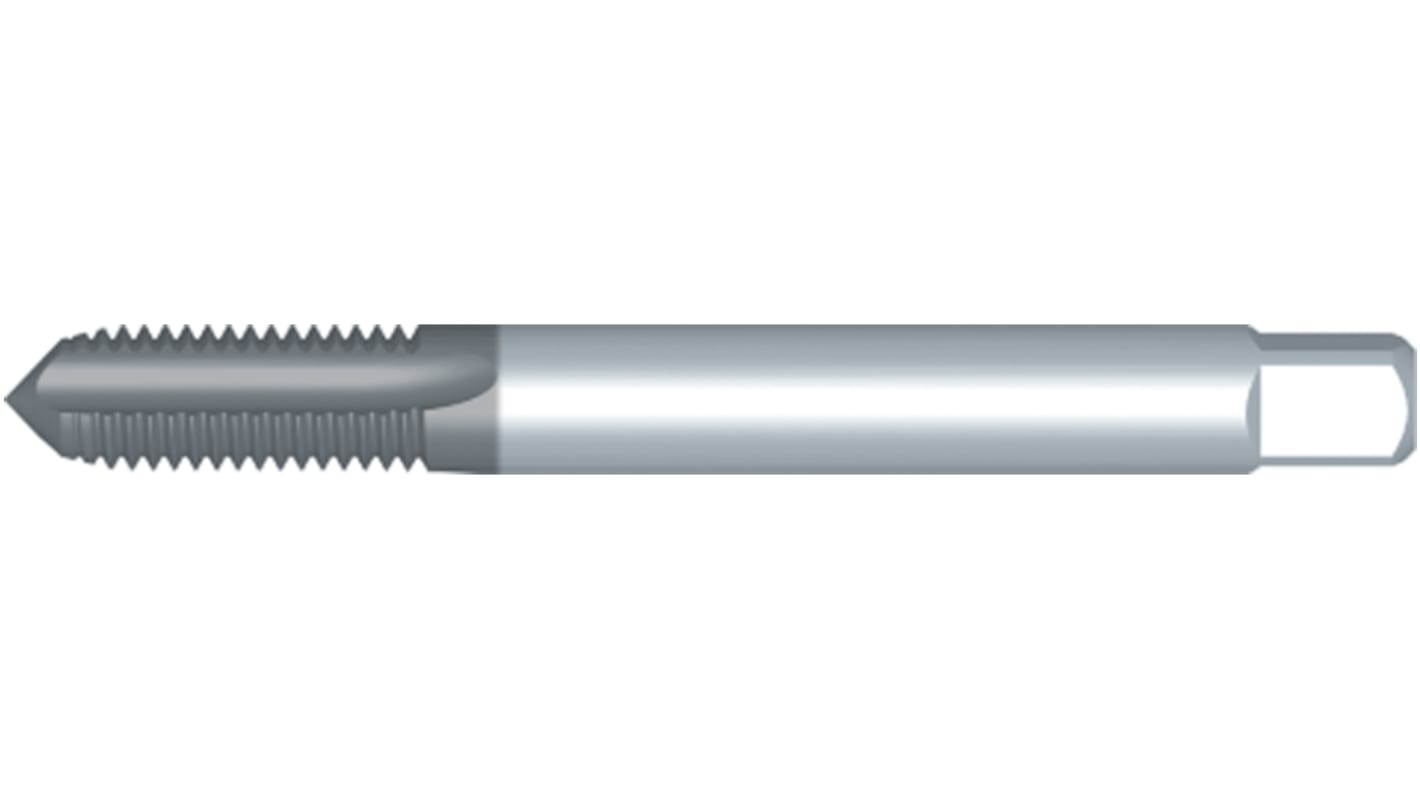

Dormer Threading Tap Carbide 1-Piece 1.0mm Pitch Metric Standard Machine Tap M6 Thread
- RS 제품 번호:
- 136-3960
- 제조사 부품 번호:
- T200M6
- 제조업체:
- Dormer
Subtotal (1 unit)*
₩388,225.64
일시적 품절
- 2026년 1월 29일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩388,225.64 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 136-3960
- 제조사 부품 번호:
- T200M6
- 제조업체:
- Dormer
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Dormer | |
| Set Type | Threading Tap | |
| Thread Size | M6 | |
| Type | Straight Flute | |
| Pitch | 1.0mm | |
| Thread Standard | Metric | |
| Thread Direction | Right Hand | |
| Number of Pieces | 1 | |
| Overall Length | 80 mm | |
| Material | Carbide | |
| Hand/Machine Tap | Machine Tap | |
| Shank Diameter | 6 mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 Dormer | ||
Set Type Threading Tap | ||
Thread Size M6 | ||
Type Straight Flute | ||
Pitch 1.0mm | ||
Thread Standard Metric | ||
Thread Direction Right Hand | ||
Number of Pieces 1 | ||
Overall Length 80 mm | ||
Material Carbide | ||
Hand/Machine Tap Machine Tap | ||
Shank Diameter 6 mm | ||
제외
- COO (Country of Origin):
- DE
Metric Coarse Straight Flute Tap (T200)
Solid carbide tapes for the production of metric coarse internal threads in hardened steels (49-55 HRC). These metric coarse straight flute taps are ideal for mass productions with cutting speeds up to 3 times higher than HSS-E taps. Featuring TiCN coating for high strength/hardness which helps to resist abrasive wear and breaking. Can be used for horizontal or vertical blind hole machining and for threading depths up to twice the diameter.
Features and Benefits
• High performance and improved tool life
• Threading depths up to 2 times diameter
• Ideal for threading short chipping materials
• For hardened steel applications
• Threading depths up to 2 times diameter
• Ideal for threading short chipping materials
• For hardened steel applications
Engineering Taps - Straight Flute (Dormer)
Precision HSS taps to ISO529 designed to produce repeatable tolerance threads in most engineering materials. Suitable for medium/high rate production. All taps are to tolerance class 2, giving 6H fit (metric taps) or 2B fit (UNF & UNC taps)
