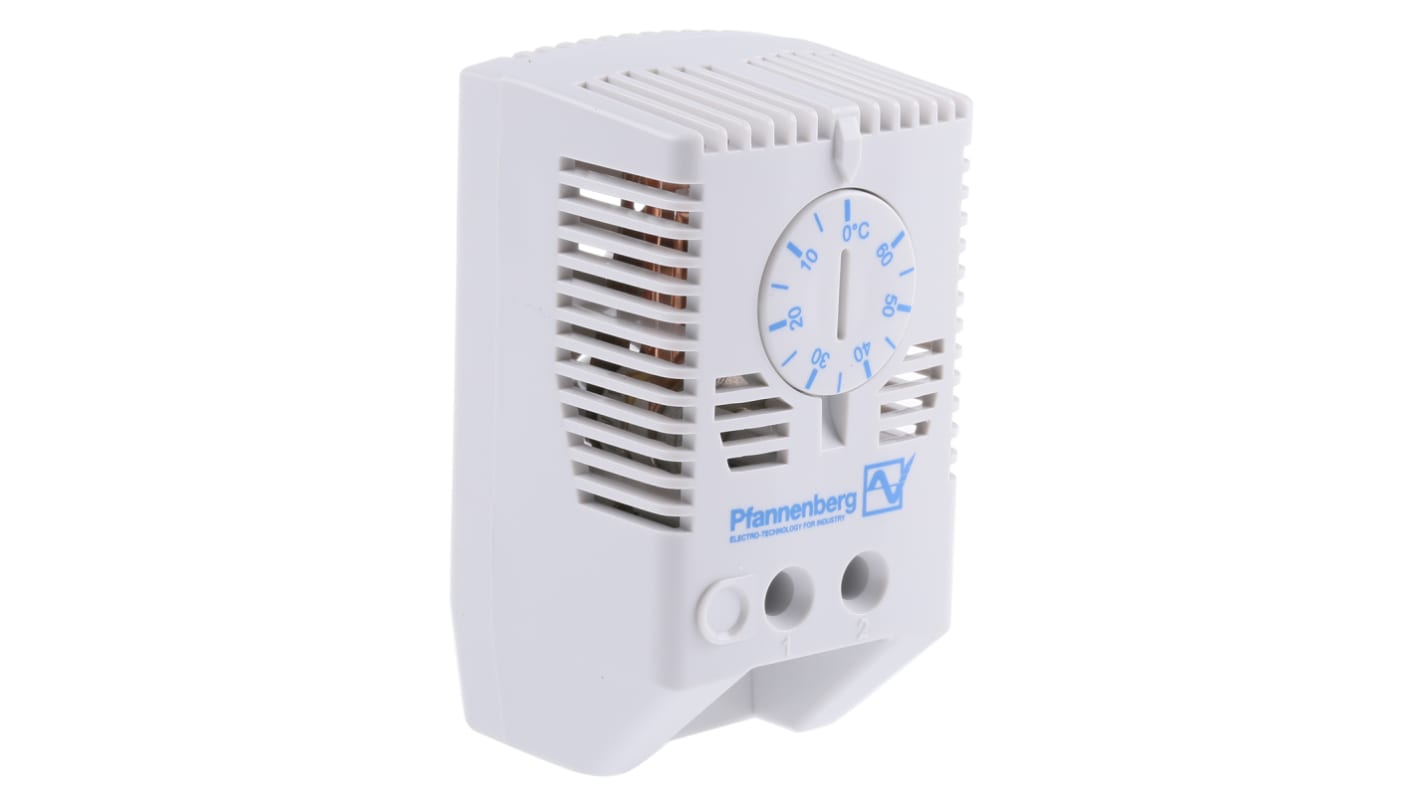

Pfannenberg FLZ NO Enclosure Thermostat, 120 V ac, +32 → +140 °F
- RS 제품 번호:
- 103-550
- 제조사 부품 번호:
- FLZ530 17121000010
- 제조업체:
- Pfannenberg
모든 Thermostats 열람하기
265 <재고있음> 5-9영업일내 홍콩 발송
단가 Each
₩68,901.00
| 수량 | 한팩당 |
| 1 - 4 | ₩68,901.00 |
| 5 - 9 | ₩66,832.50 |
| 10 - 24 | ₩64,765.75 |
| 25 - 49 | ₩63,386.75 |
| 50 + | ₩62,011.25 |
- RS 제품 번호:
- 103-550
- 제조사 부품 번호:
- FLZ530 17121000010
- 제조업체:
- Pfannenberg
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항
DIN Rail Thermostats - Pfannenberg FLZ Series
When used in conjunction with a cabinet heater thermostats can be used to control the temperature inside a control cabinet. These thermostats can also be used with a filter fan to provide benefits in energy consumption, materials and time due to need-based use of the fans.
Mechanical bi-metallic thermostat for temperature in enclosures
Spring contact
DC max 30W
Connection by 0.5-2.5mm2 screw clamps
IP20 protection
Working/storage temperature range -20°C to +80°C
Mounting method is snap fastening for 35mm profile bars in accordance with EN 60715
Colour RAL 7035 - light grey
Spring contact
DC max 30W
Connection by 0.5-2.5mm2 screw clamps
IP20 protection
Working/storage temperature range -20°C to +80°C
Mounting method is snap fastening for 35mm profile bars in accordance with EN 60715
Colour RAL 7035 - light grey
Approvals
UL (FLZ520 & FLZ530)
사양
| 속성 | 값 |
| Switch Configuration | NO |
| Supply Voltage | 120 V ac |
| Maximum Temperature | +140 °F |
| Minimum Temperature | +32 °F |
| Temperature Range | +32 → +140 °F |
| Series | FLZ |
