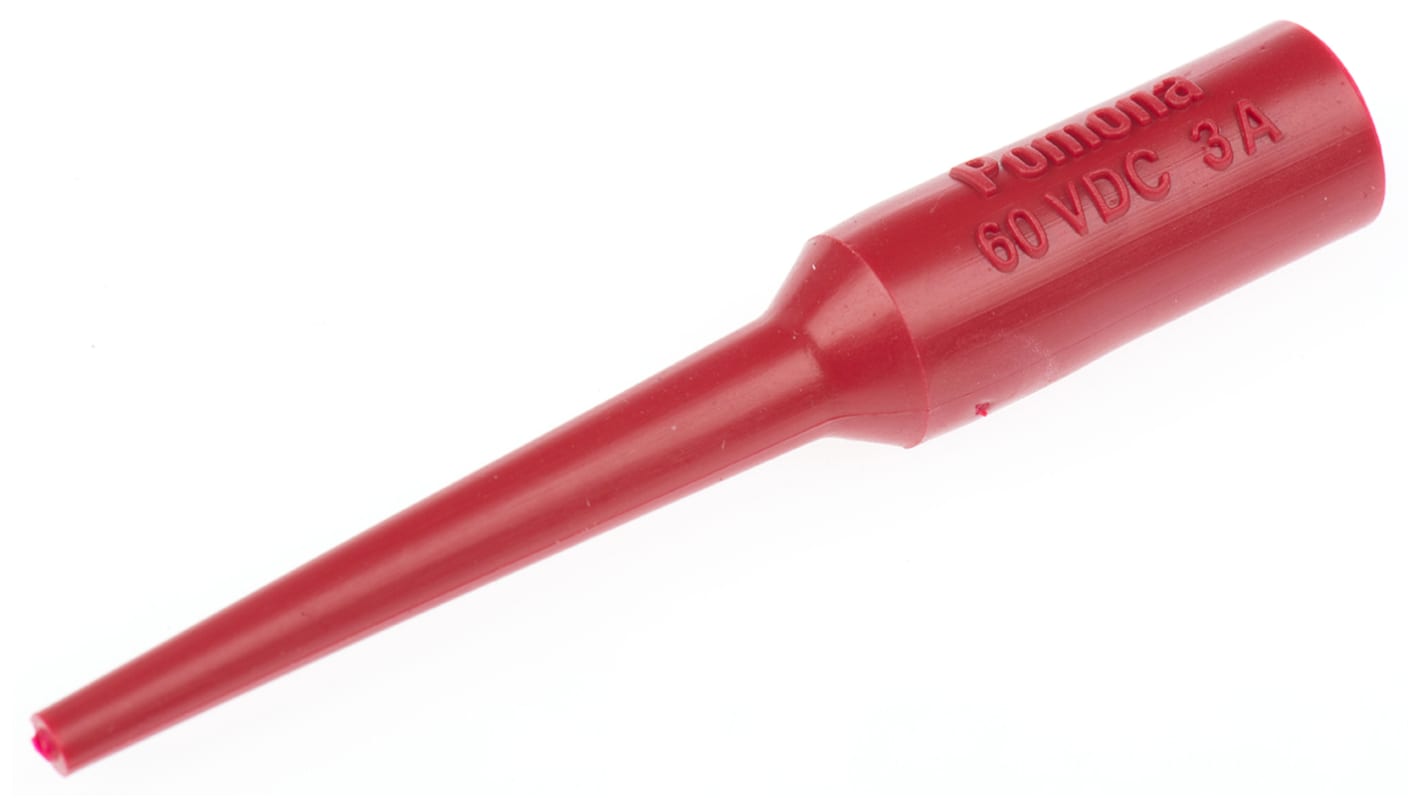

Fluke Red Test Connector Adapter With Brass, Copper contacts and Gold Plated

모든 Test Connector Adapters 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 unit)*

₩12,220.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 9월 28일 부터 65 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
1 - 14₩12,220.00
15 - 49₩11,960.00
50 +₩11,740.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
161-5423
Distrelec 제품 번호:
302-22-863
제조사 부품 번호:
4690-2
제조업체:
Fluke
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Fluke

Product Type

Test Connector Adapter

Colour

Red

Current

3A

Contact Material

Brass, Copper

Contact Plating

Gold

Voltage

2500V

Connector Type A

Banana Jack

Connector Type B

Socket

Standards/Approvals

CE

제외

COO (Country of Origin):
US

Fluke Test Connector Adapter, 2500V Voltage, 3A Current - 4690-2


This test connector adapter converts a banana jack to a socket for accessing individual pins in multi-pin connectors during laboratory and bench testing. It is designed for high-voltage hands-free use up to 2500Vrms and for low-current measurement tasks, providing insulated access to hard-to-reach contacts while protecting against accidental shorting.

Features and Benefits:


• 2500V maximum hands-free voltage for high-voltage testing
• 3A current rating for small-signal and low-power circuits
• Gold-plated socket contact reduces contact resistance
• Brass banana jack body ensures robust conductive path
• PVC insulation prevents accidental contact and shorting

Applications


• Suitable for probing multi-pin connector contacts in assemblies
• Used for laboratory high-voltage diagnostic procedures
• Ideal for linking test leads to pin sockets during evaluation
• Can be used for low-current circuit continuity checks
• Used with test kits containing mixed-colour adapters

What materials are used for the conductive contacts?


The upper connector uses brass for the banana jack body and the lower socket is a copper alloy with a gold finish over copper plating.

What temperature limitation applies during use?


The adapter's operating temperature limit is +55°C (+131°F) maximum.

How does the design protect adjacent contacts during probing?


The insulated, flexible tip prevents shorting and allows access to closely spaced contacts without damaging adjacent pins.

Which colours are available for the adapter and how are they specified?


Colour options include red and black, colour is used to identify individual adapters within test kits.

Are there ordering or kit options that include multiple adapters?


A test kit configuration contains a set of red and black adapters covering various contact sizes alongside matching test leads.

Warning

The test leads and prods illustrated in this catalogue should NOT be used for testing circuits of more than 50Vac unless specified otherwise. When testing live circuits, under no circumstances should the fuse rating exceed the quoted rating of the test leads.
