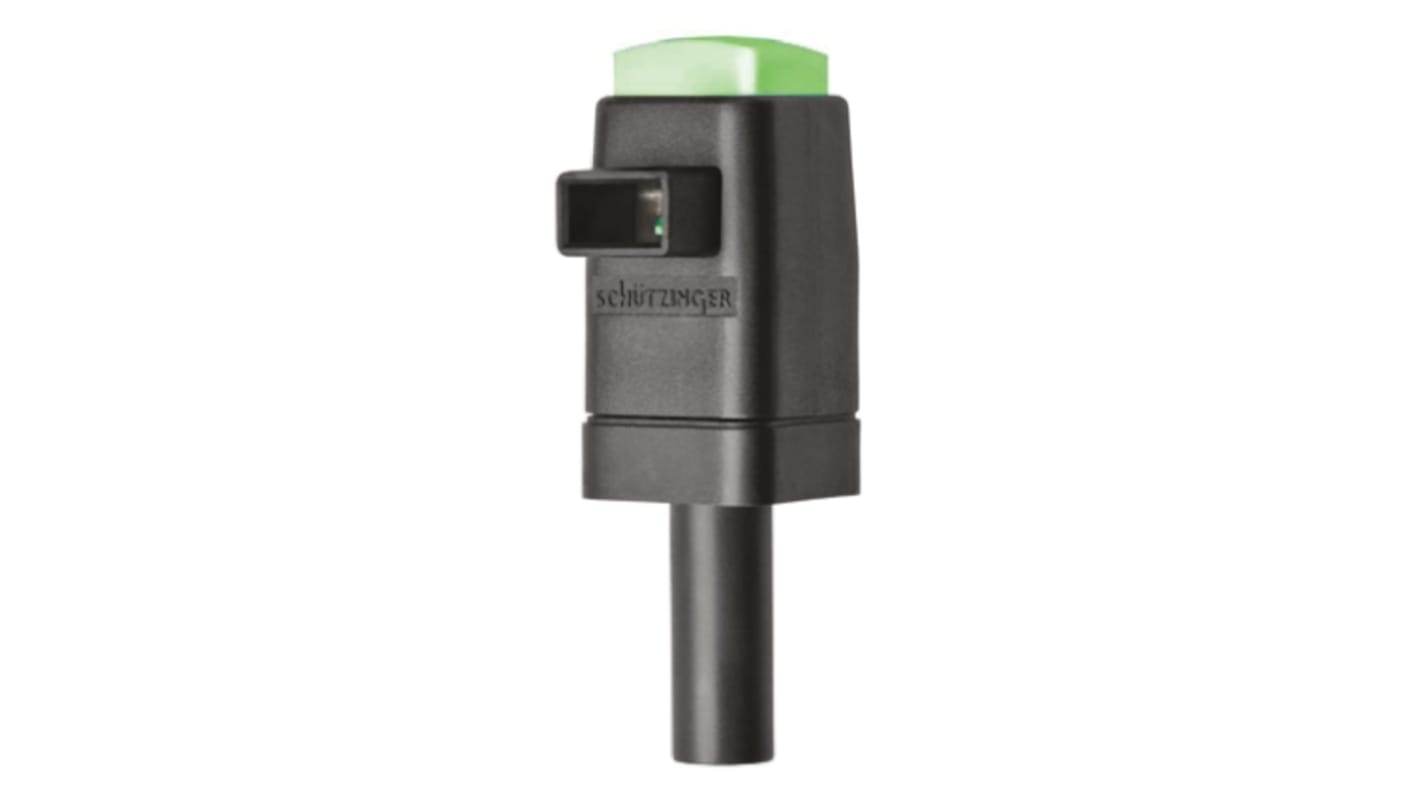

Schutzinger Green Test Terminal
- RS 제품 번호:
- 753-1719
- 제조사 부품 번호:
- SDK 799 / GN
- 제조업체:
- Schutzinger
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 753-1719
- 제조사 부품 번호:
- SDK 799 / GN
- 제조업체:
- Schutzinger
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schutzinger | |
| Colour | Green | |
| Product Type | Test Terminal | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schutzinger | ||
Colour Green | ||
Product Type Test Terminal | ||
- COO (Country of Origin):
- DE
Electrical Test Quick Release Terminal Connectors SDK 799 Series, Fully insulated for 4mm Safety Socket
A range of Schutzinger CAT II terminal connectors with 8mm x 4mm window and 4mm diameter insulated plug which are ideal for achieving quick contact with wires, 20N spring force, simply push to retain or release. The SDK 799 series quick release terminal connectors feature a single pole and are utilised for the transmission of voltages, currents and electrical test data, part of the Shutzinger Ø 4mm safety programme range.
Insulation PA6.6
Protected Insertion window 8mm x 4mm
Rated voltage 300V / CAT II
Schutzinger 4mm Programme Range
A comprehensive range of Schutzinger Terminal posts, quick release connectors and crocodile clips suitable for many applications, including test beds, testing tools and various electronic devices utilising the 4 mm diameter programme and safety programme ranges.
Note
For associated connectors, SEB 6445 and AK 4732, see typically: 753-1637, 753-1646 , 753-1649, 753-1633 , 753-1630 , 753-1807
