RS PRO 4mm Black, Red Terminal Post, 30A, 2BA Thread
- RS 제품 번호:
- 677-8759
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩11,374.00
재고있음
- 350 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 99 | ₩11,374.00 |
| 100 - 499 | ₩11,242.40 |
| 500 + | ₩9,249.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 677-8759
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Colour | Black, Red | |
| Hole Diameter | 4mm | |
| Current Rating | 30A | |
| Thread Size | 2BA | |
| Insulated | Yes | |
| Body Material | Glass Fibre Reinforced Nylon, PP | |
| Height Above Panel | 30mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Colour Black, Red | ||
Hole Diameter 4mm | ||
Current Rating 30A | ||
Thread Size 2BA | ||
Insulated Yes | ||
Body Material Glass Fibre Reinforced Nylon, PP | ||
Height Above Panel 30mm | ||
- COO (Country of Origin):
- GB

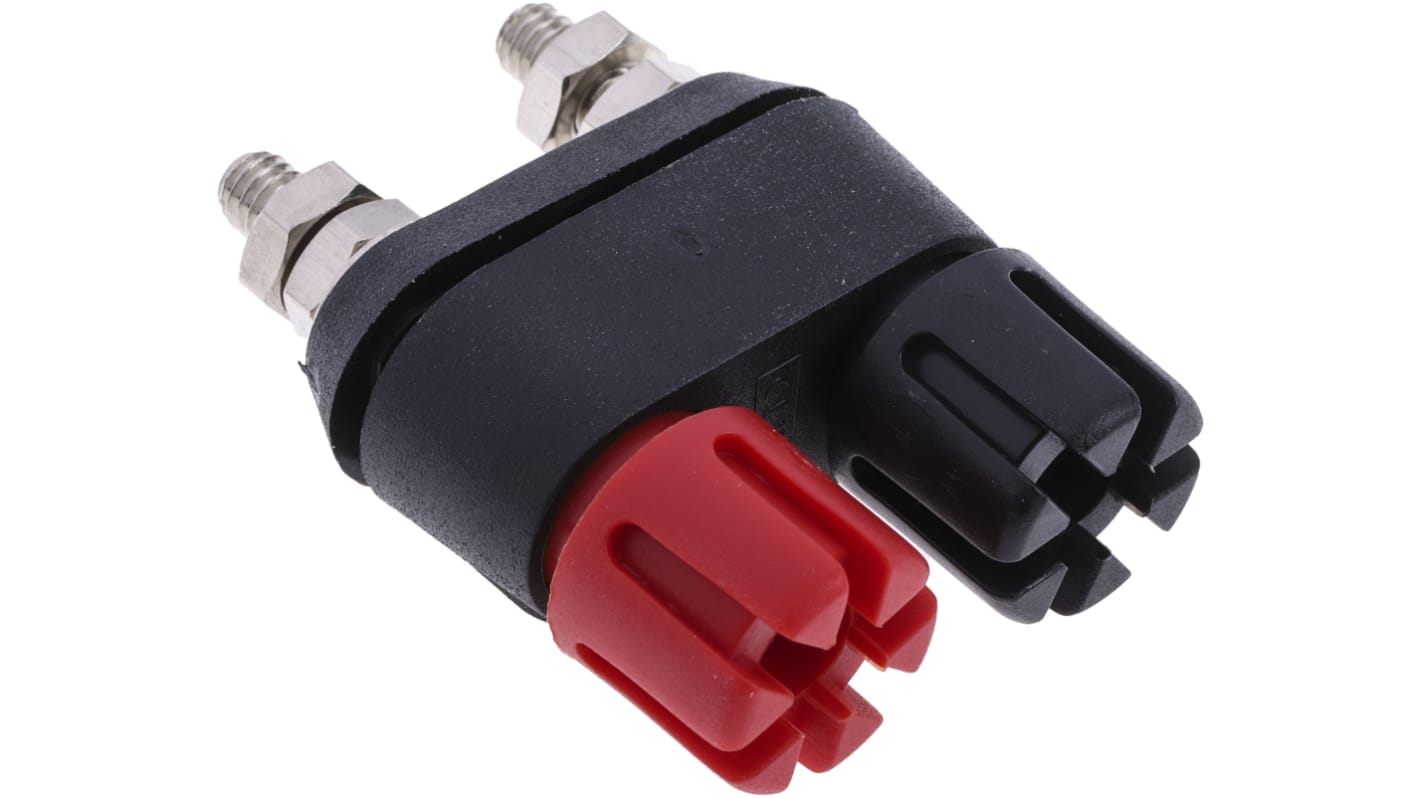

RS PRO 4 mm Black, Red Terminal Post, 30 A, 2 BA Thread
This terminal post provides a safe electrical connection between wires and equipment. The panel-mountable assembly accepts 4 mm unshrouded plugs in the top and 4 mm plugs or wire up to 12 mm² in the shrouded cross hole at the side.
The assembly is insulated, providing a safe connection for panel-mounted applications and is rated for use with currents of up to 30 A. Its terminals are coloured for easy polarity identification.
These terminal posts have slotted tops that give extra grip for your fingers when clamping wires or plugs, ensuring a secure connection. Their tops are made of glass fibre-reinforced nylon and polypropylene (PP), so they're strong and durable and can be used at temperatures ranging from -20°C to +80°C. The terminals sit 30 mm above the mounting surface when open and 23 mm when closed.
You'll find posts such as these in amplifiers and speakers, as well as test and measurement tools in industrial settings.
The assembly is insulated, providing a safe connection for panel-mounted applications and is rated for use with currents of up to 30 A. Its terminals are coloured for easy polarity identification.
These terminal posts have slotted tops that give extra grip for your fingers when clamping wires or plugs, ensuring a secure connection. Their tops are made of glass fibre-reinforced nylon and polypropylene (PP), so they're strong and durable and can be used at temperatures ranging from -20°C to +80°C. The terminals sit 30 mm above the mounting surface when open and 23 mm when closed.
You'll find posts such as these in amplifiers and speakers, as well as test and measurement tools in industrial settings.
Features and Benefits
• Hole diameters of 4 mm
• Current rating of 30 A
• Electrically insulated
• Contact resistance of
• Current rating of 30 A
• Electrically insulated
• Contact resistance of
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
