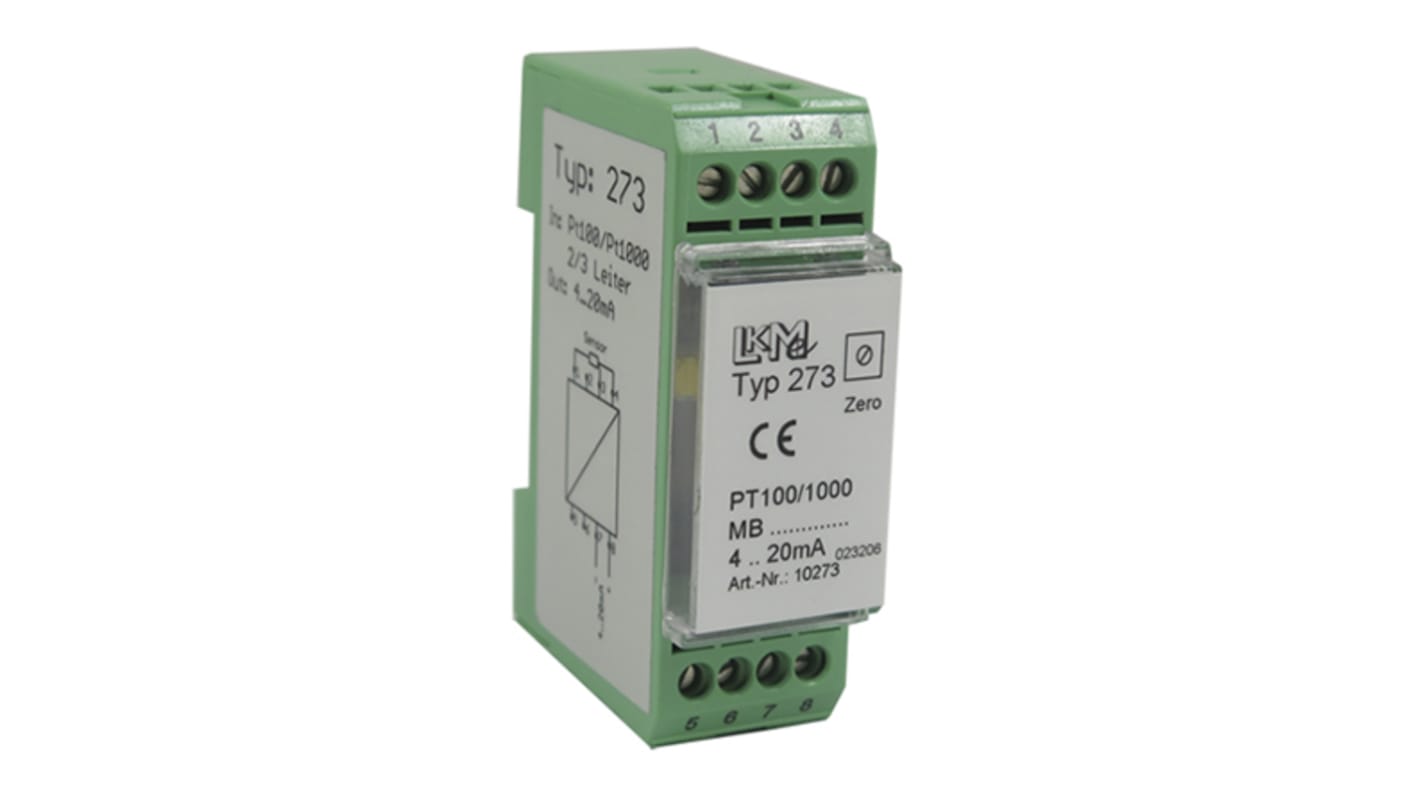

Electrotherm LKM 273 Digital Transducer 35V, 70 °C, -25 °C
- RS 제품 번호:
- 913-0850
- 제조사 부품 번호:
- LKM 273
- 제조업체:
- Electrotherm
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩169,153.00
일시적 품절
- 2026년 3월 31일 부터 1 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 4 | ₩169,153.00 |
| 5 - 9 | ₩162,388.76 |
| 10 + | ₩155,622.64 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 913-0850
- 제조사 부품 번호:
- LKM 273
- 제조업체:
- Electrotherm
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Electrotherm | |
| Product Type | Digital Transducer | |
| Output Type | 4 to 20 mA | |
| Minimum Temperature Input | -100°C | |
| Maximum Temperature Input | 600°C | |
| Series | LKM 273 | |
| Depth | 53mm | |
| Maximum Supply Voltage | 35V | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | EN 61326-1:2006, EN 61326-2-3:2006 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Electrotherm | ||
Product Type Digital Transducer | ||
Output Type 4 to 20 mA | ||
Minimum Temperature Input -100°C | ||
Maximum Temperature Input 600°C | ||
Series LKM 273 | ||
Depth 53mm | ||
Maximum Supply Voltage 35V | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification No | ||
Standards/Approvals EN 61326-1:2006, EN 61326-2-3:2006 | ||
- COO (Country of Origin):
- DE
LKM 273 Pt100/Pt1000 Digital Configurable Measuring Transducer
The LKM 273 is a digital configurable measuring transducer for Pt100 / Pt1000 and is designed for installation on a 35 mm top hat rail. This transducer has a 20 to 20 mA current output. To set 13 different measuring ranges use a 4 DIP switches. You can make minor corrections for the transducer with a zero point controller. The sensor for the LKM 273 is detected automatically and connected with a 3-/2- lead circuit.
Measuring ranges that can be configured
-100 to 100°C, -50 to 50°C, -40 to 60°C, -30 to 70°C, -20 to 150°C
0 to 50°C, 0 to 100°C, 0 to 200°C, 0 to 250°C, 0 to 300°C, 0 to 400°C, 0 to 500°C, 0 to 600°C
Input: Pt100/Pt1000 self-detecting, 2/3- wire circuit
Overall measuring range: Pt100: -100 to 600°C, Pt1000:-100 to 300°C, adjustable via DIP-switch
Measurement current: 0.25 mA
Current consumption: max. 21mA
Resolution: 14 bit
Measuring rate: 2/s
Output: 4 to 20mA
Temperature coefficient: 0.015K/°C set temperature range 0 to 100°C
Dimensions: 75x25x53mm (HxWxD)
Weight: approx.60g
Loop voltage: 10. To 35 Vdc polarity-safe
Linearity error: 0.1%FS
Probe break: 20mA
Short circuit: 4mA
Clamping range: 0.2 to 2.5mm² screw clamps
Temperature coefficient: 0.015K/°C set temperature range 0 to 100°C
Operating temperature range: - 25°C to 70°C
Dimensions: 75x25x53mm (HxWxD)
Weight: approx.60g
Transducer LKM 273 Pt100 / Pt1000 Rail Assembly
Approvals
EMC Emission and Noise immunity: EN61326-1:2006. EN61326-2-3:2006
