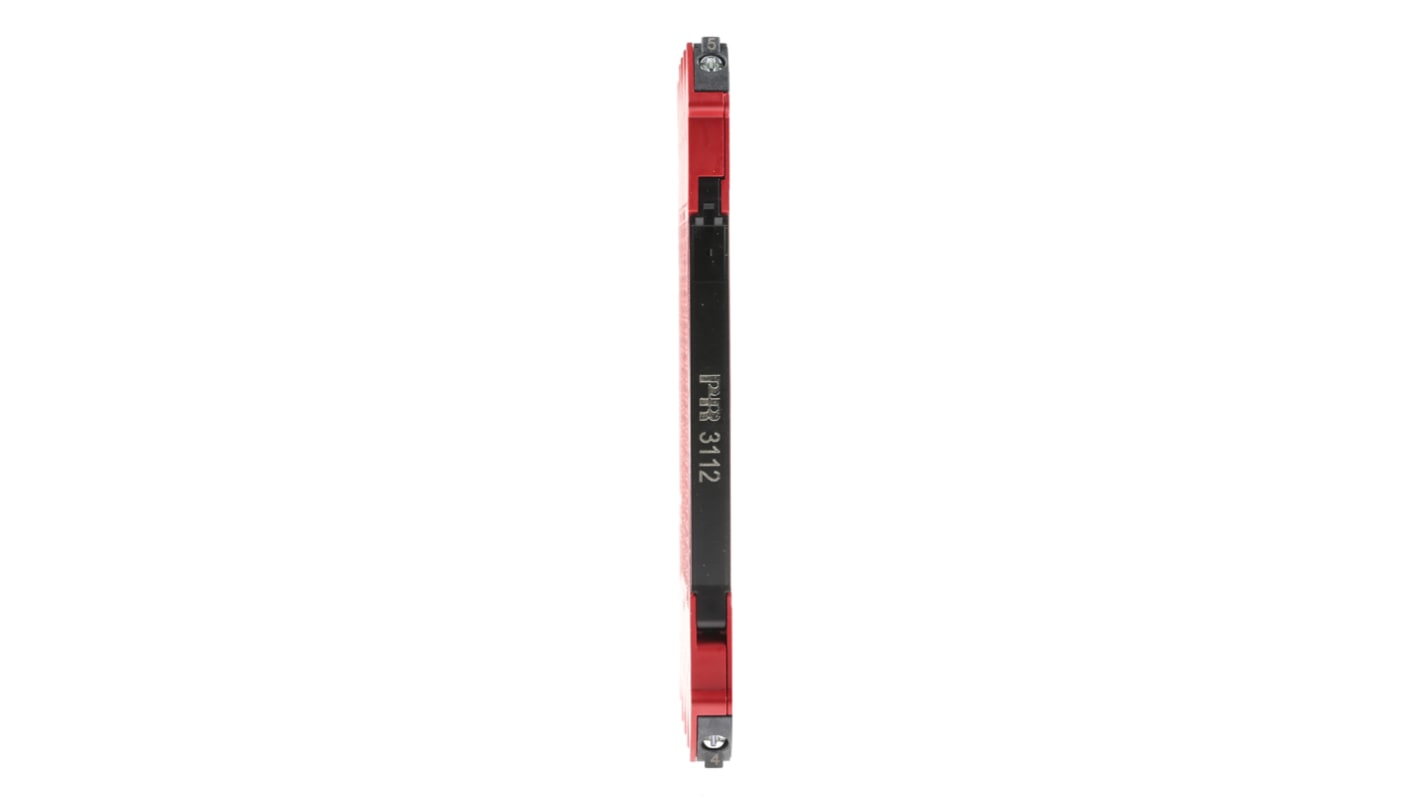

PR Electronics 3112 Temperature Converter Temperature Input 31.2V dc, 70 °C, -25 °C

RS 제품 번호:: 827-5460
제조사 부품 번호:: 3112
제조업체:: PR Electronics

PR Electronics 3112 Temperature Converter Temperature Input 31.2V dc, 70 °C, -25 °C

Subtotal (1 unit)*

₩286,884.00

재고있음

10 개 단위 배송 준비 완료
추가로 2026년 7월 01일 부터 5 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩286,884.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 827-5460
제조사 부품 번호:: 3112
제조업체:: PR Electronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	PR Electronics
	Product Type	Temperature Converter
	Input Type	Temperature
	Output Type	0/1 to 5 V, Analogue Voltage Or Current Output (0/4 to 20 mA), 0/2 to 10 V
	Minimum Temperature Input	-200°C
	Maximum Temperature Input	850°C
	Series	3112
	Depth	115mm
	Maximum Supply Voltage	31.2V dc
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	70°C
	Hazardous Area Certification	AEx nA IIC T4, B, C, EX NA IIC T4, Div 2, CA: CL. I, FM, IECEX: EX nA IIC T4 Gc, Gp. A, Zone 2, ATEX II 3 G EX nA IIC T4 Gc, D T4 Or Cl. I, Us: Cl. I
	Standards/Approvals	ATEX 2014/34/EU: KEMA 10ATEX0147 X, NAMUR NE21, RoHS: 2011/65/EU, EAC: TR-CU 020/2011, LVD: 2014/35/EU, EMC: 2014/30/EU, IECEx: KEM 10.0068X, UL: UL 61010-1, DNV-GL Marine: Stand. f. Certific. No. 2.4, FM: FM17US0004X / FM17CA0003X, NAMUR NE43

	모두 선택
	브랜드 PR Electronics
	Product Type Temperature Converter
	Input Type Temperature
	Output Type 0/1 to 5 V, Analogue Voltage Or Current Output (0/4 to 20 mA), 0/2 to 10 V
	Minimum Temperature Input -200°C
	Maximum Temperature Input 850°C
	Series 3112
	Depth 115mm
	Maximum Supply Voltage 31.2V dc
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 70°C
	Hazardous Area Certification AEx nA IIC T4, B, C, EX NA IIC T4, Div 2, CA: CL. I, FM, IECEX: EX nA IIC T4 Gc, Gp. A, Zone 2, ATEX II 3 G EX nA IIC T4 Gc, D T4 Or Cl. I, Us: Cl. I
	Standards/Approvals ATEX 2014/34/EU: KEMA 10ATEX0147 X, NAMUR NE21, RoHS: 2011/65/EU, EAC: TR-CU 020/2011, LVD: 2014/35/EU, EMC: 2014/30/EU, IECEx: KEM 10.0068X, UL: UL 61010-1, DNV-GL Marine: Stand. f. Certific. No. 2.4, FM: FM17US0004X / FM17CA0003X, NAMUR NE43

COO (Country of Origin):: DK

3000 Series - Temperature Converter

PR Electronics 3000 series temperature transmitters offer reliable and accurate conversion of industry process temperature signals to analogue or digital outputs. The easy DIP-switch set-up allows for more than 1000 different pre-calibrated temperature range combinations. The 3000 series are compact, fast, and easy to use. With a slim 6 mm housing that offers exceptional performance and EMC immunity for dedicated applications.

Designed and rated to operate between -25 ˚C to +70 ˚C, making these devices a good choice in applications where the ambient temperature changes greatly, for example in control panels mounted in outdoor locations. These transmitters have a low temperature coefficient achieving precise measurements, even when the panel is exposed to wide variations in ambient temperature. You can continue to rely on the output signal, with no need to re-calibrate your device.

Features and Benefits

• High basic 0.05% accuracy in all available signal ranges

• All units tested to ensure 2.5 kVAC isolation and have excellent noise immunity

• NAMUR NE21 burst A criteria

• Transmits rapid changes in process measurements to your PLC/DCS for fast and accurate monitoring of critical signals

• Response time of < 30 ms for temperature measurements

• Low temperature coefficient better than 0.01% / °C in a wide -25 to +70°C ambient temperature range for precise measurements

• Long term accuracy better than 0.1% / 3 years with no need for re-calibration

DIP-Switch Programming

Re-calibration is not needed after changing the DIP-switch range settings. Just change the DIP-switch, cycle the power to the unit and obtain the new, pre-calibrated I/O range. HART programming is enabled for selected devices.

Mounting

Devices can be mounted both vertically and horizontally with no air gap separation required. The devices snap onto a power rail or DIN rail and are easily detached by lifting the bottom lock.

High Level of Isolation

Safe galvanic isolation of 2.5 kVAC provides high noise immunity and prevents ground loops for accurate delivery of the process signal to your control system.

Device Status Indicators

A front LED indicates device status, e.g. an error in the set-up, sensor or hardware.

Over Voltage and Polarity Protection

All terminals can withstand up to ±31.2 VDC and are protected against incorrect supply wiring to ensure safe, error-free installation.
